Piston Ring-To-Groove Clearance

  1. Inspect the piston for ring land damage or accelerated wear.

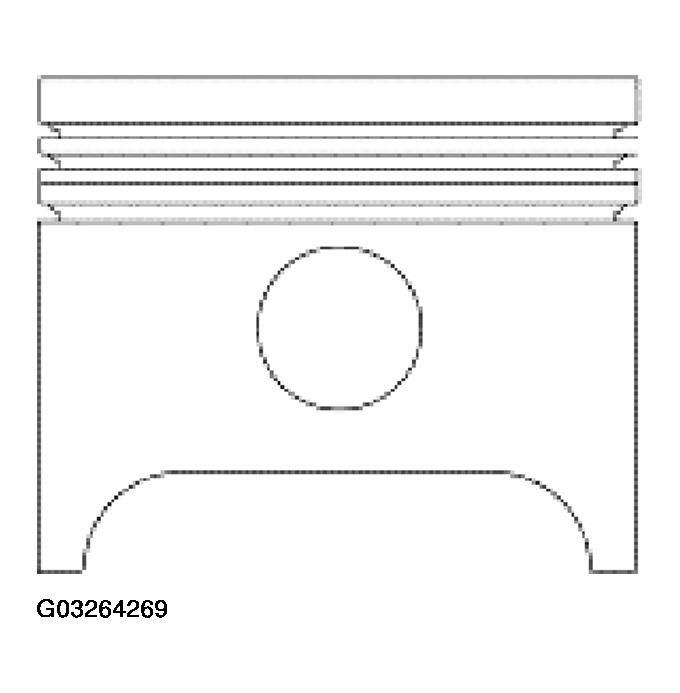

    Fig 1: Inspecting Piston For Ring Land
    G03264269Courtesy of FORD MOTOR CO.
  2. Measure the piston ring-to-groove clearance.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

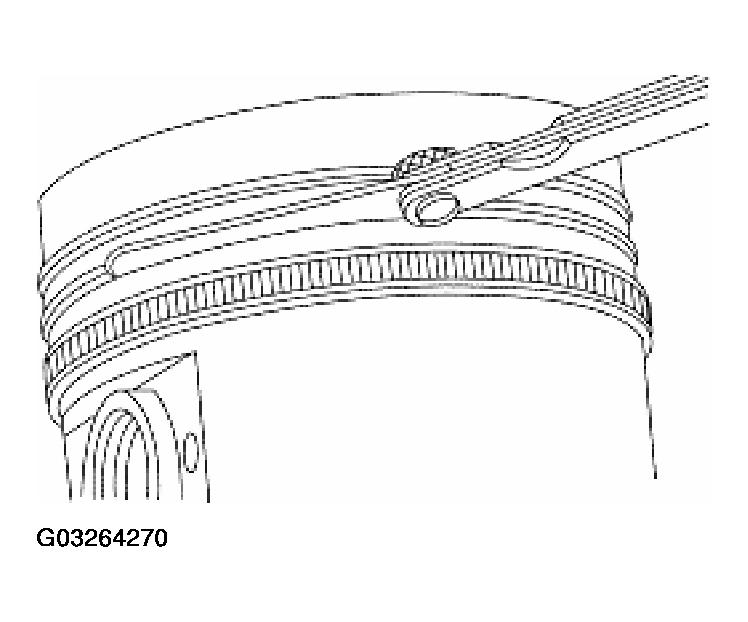

    Fig 2: Measuring Piston Ring-To-Groove Clearance
    G03264270Courtesy of FORD MOTOR CO.
