Dimmer Module

  1. Disconnect the battery.
  2. Remove the LH quarter trim panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
  3. Remove the parts in the order indicated in the following illustration and table.

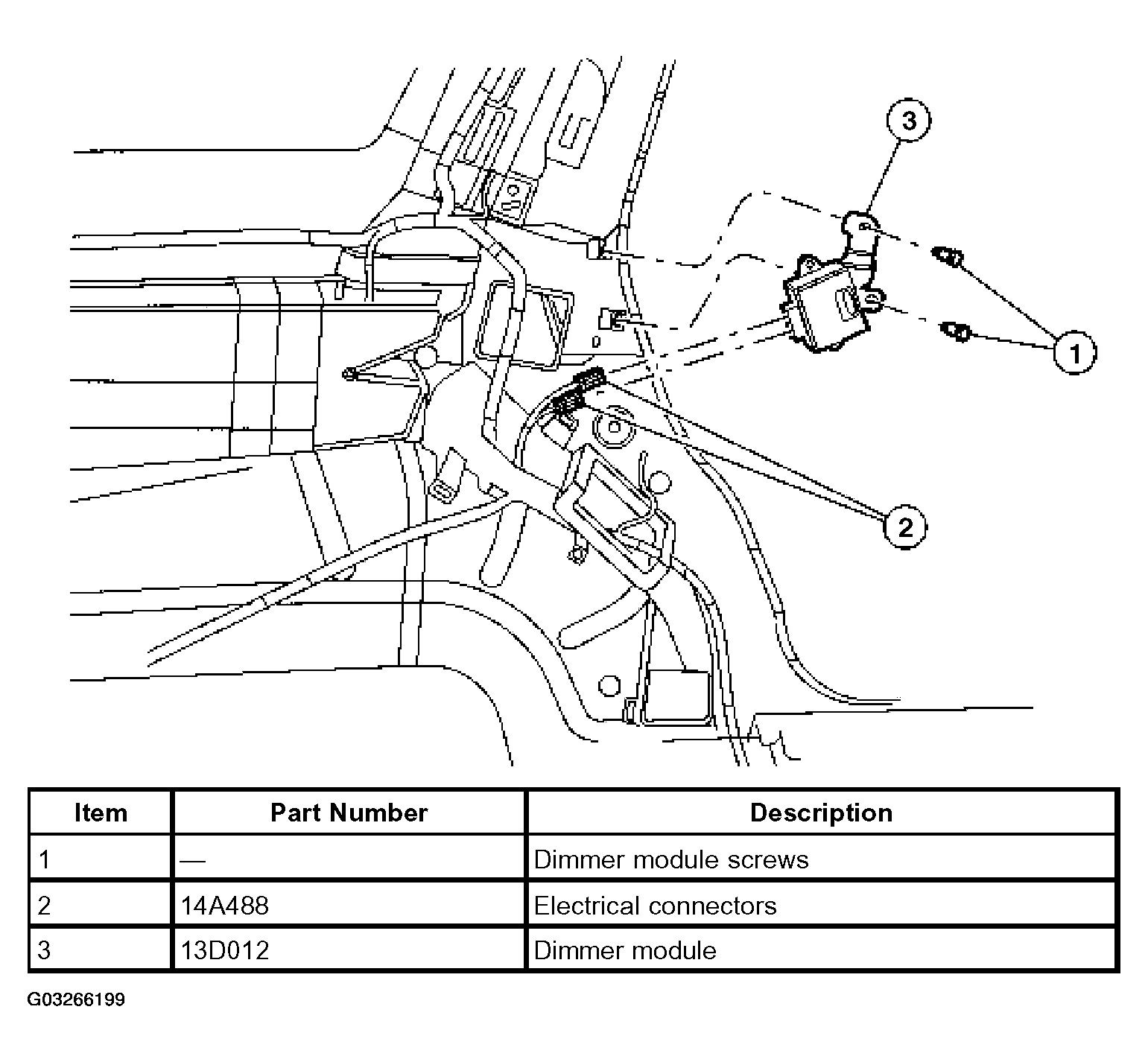

    Fig 1: Identifying Removal Sequence Of Dimmer Module
    G03266199Courtesy of FORD MOTOR CO.
  4. To install, reverse the procedure.
