Restraint Control Module C310a

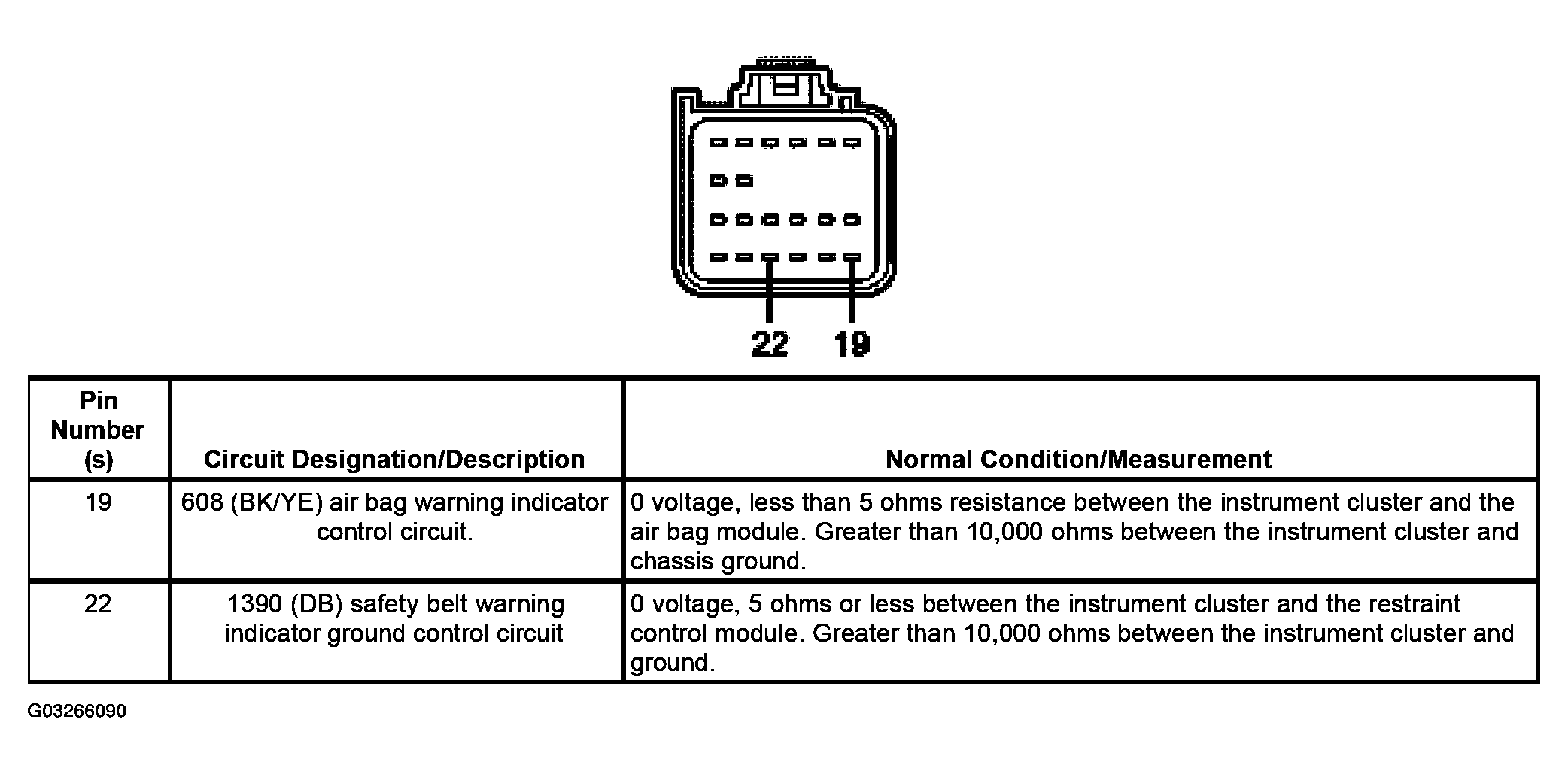

Fig 1: Identifying Restraint Control Module C310a Connectors Pins
G03266090Courtesy of FORD MOTOR CO.
