Rear Axle Speed Sensor C455

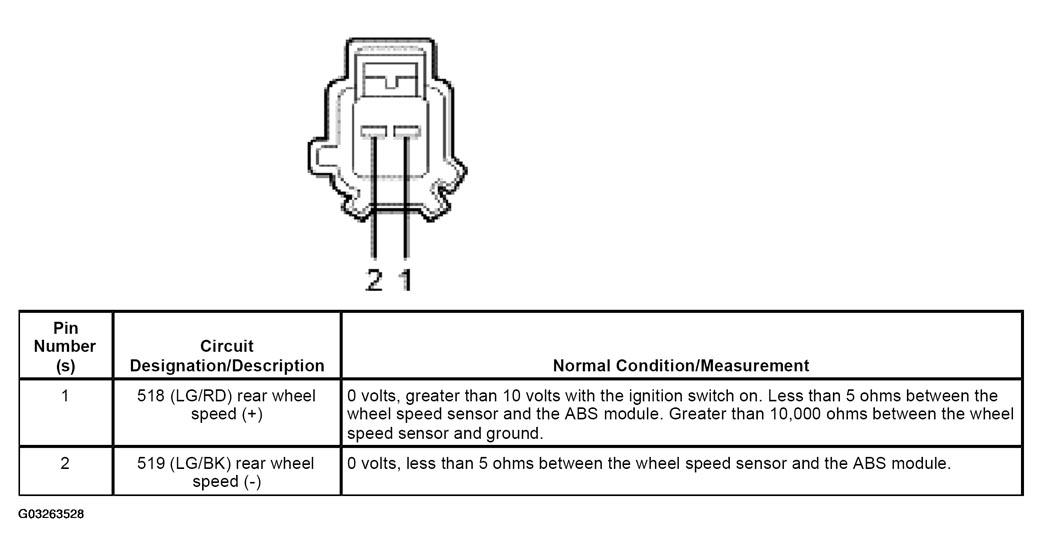

Fig 1: Identifying Rear Axle Speed Sensor C455 Connector Terminal Specifications
G03263528Courtesy of FORD MOTOR CO.

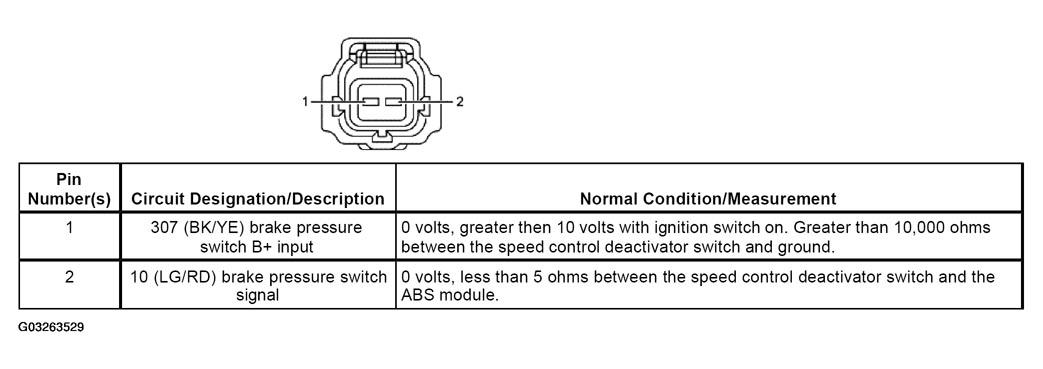

Fig 2: Identifying Speed Control Deactivator Switch C1025 Connector Terminal Specifications
G03263529Courtesy of FORD MOTOR CO.
