Rear Quarter Window Glass: Notes

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
Urethane Metal Primer Essex U-413	WSB-M2G234-C
Urethane Glass Prep Essex U-401	WSB-M5B280-C
Urethane Glass Primer Essex U-402	WSB-M2G314-B
Urethane Adhesive Essex 400 -HV	WSB-M2G316-B

WARNING: To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.

Remove the rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the pin-type retainer and third row garment hooks.
Lower headliner.
Remove the parts in the order indicated in the following illustration and table.

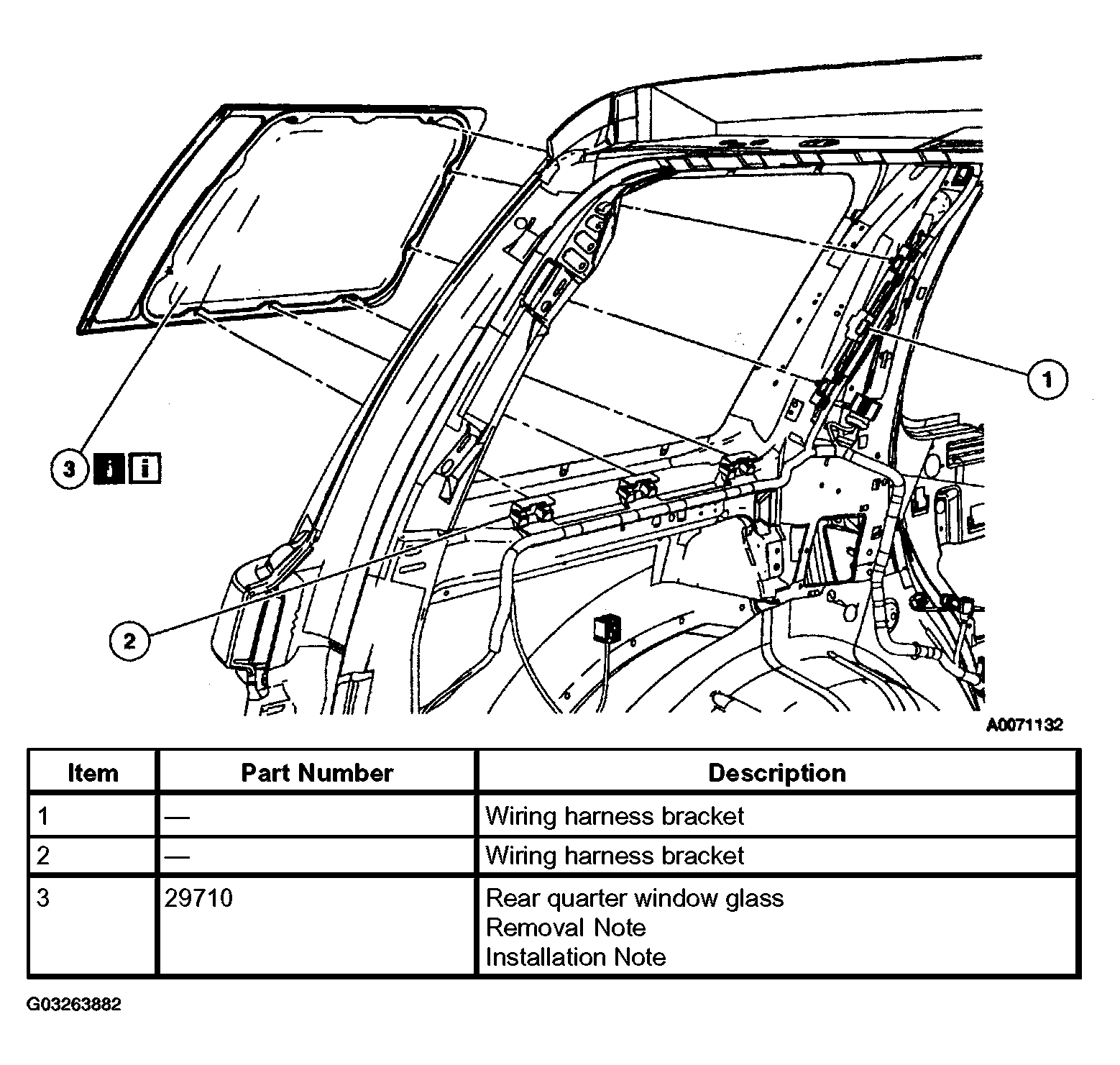

Fig 2: Removing Rear Quarter Window Glass
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
