Rear Bumper: Notes
CAUTION:
To avoid damaging the rear parking aid system, disconnect the parking aid sensor electrical connector before removing the rear bumper.
- Remove the taillamp assemblies. For additional information, refer to EXTERIOR LIGHTING .

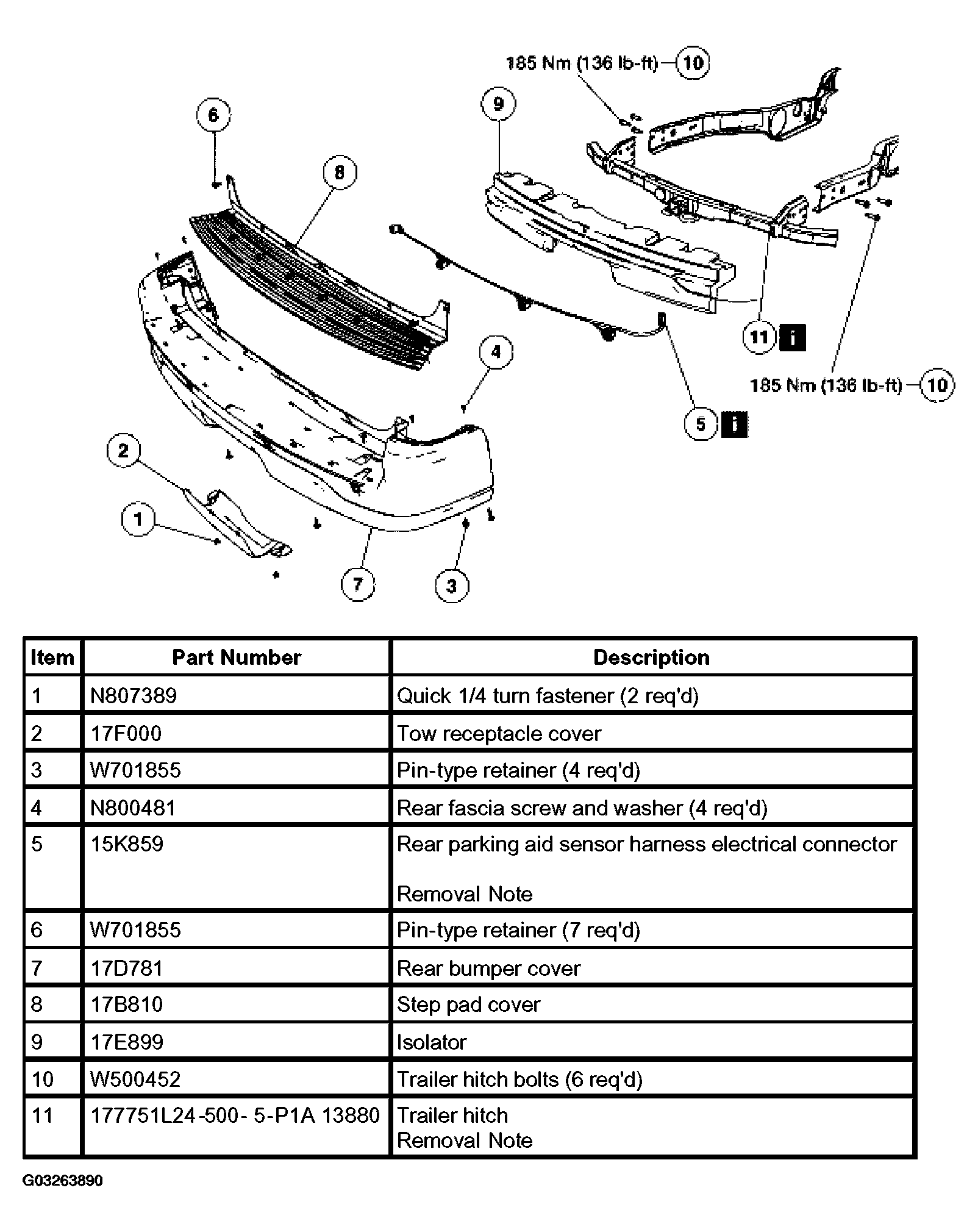

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
REAR BUMPER COMPONENT REMOVAL STEPSPart Steps Rear bumper cover 1-8 Isolator 1-7, 9 Trailer hitch 1-7, 10-11 - To install, reverse the removal procedure.
