Removal And Installation: Mouldings: Notes

NOTE: LH side shown. RH side similar.
  1. Remove the running boards. For additional information, refer to RUNNING BOARD .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    MOULDINGS COMPONENT REMOVAL STEPS

    Part Steps
    Front Door Moulding 1
    Rear Door Moulding 2-4
    Rear Quarter Trim Moulding 5-7

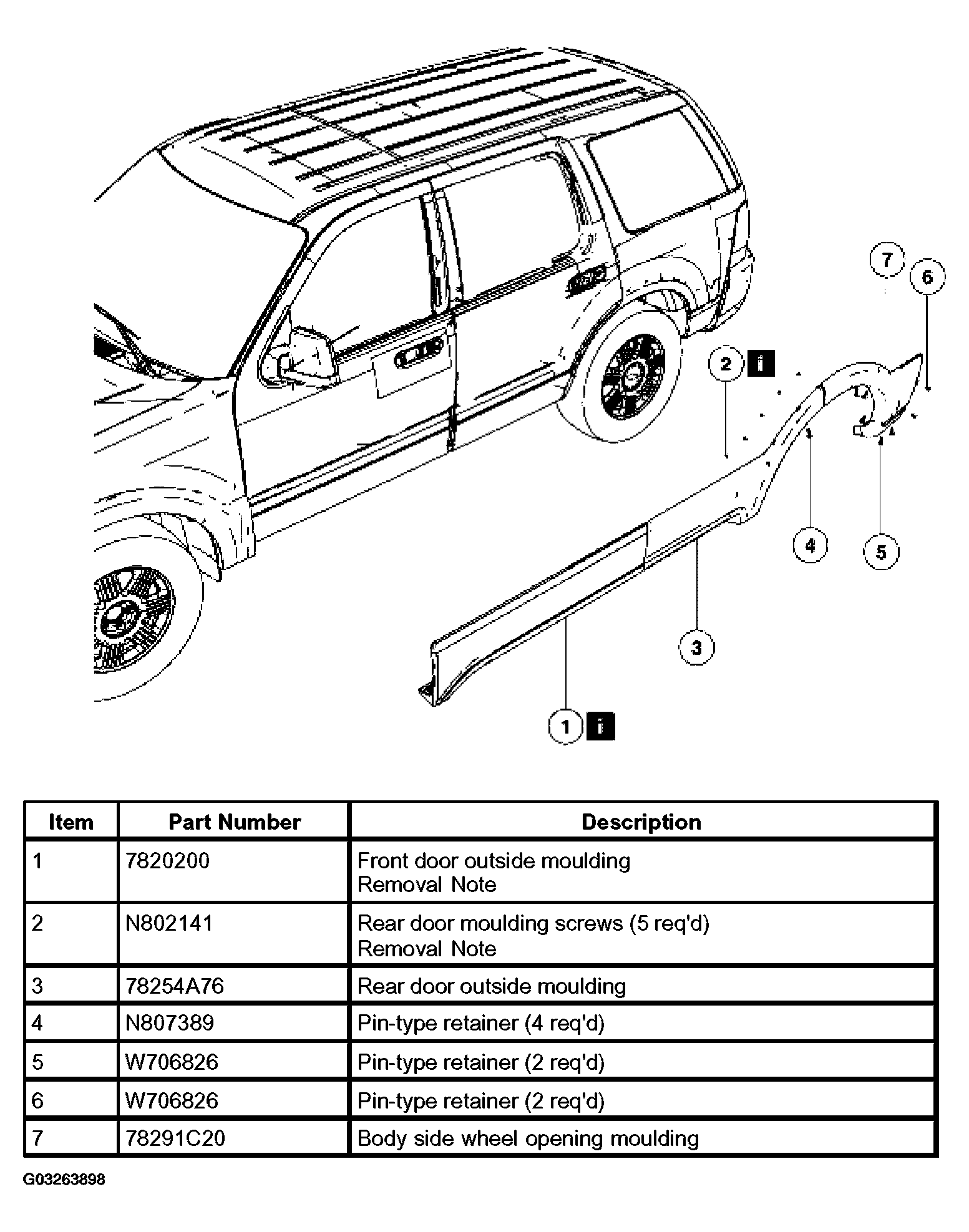

    Fig 1: Removing Mouldings
    G03263898Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
