Removal And Installation: Fender

NOTE: LH side shown. RH side similar.

Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

FENDER COMPONENT REMOVAL STEPS

Part	Steps
Splash Shield	1-5
Fender	1-3, 5-13

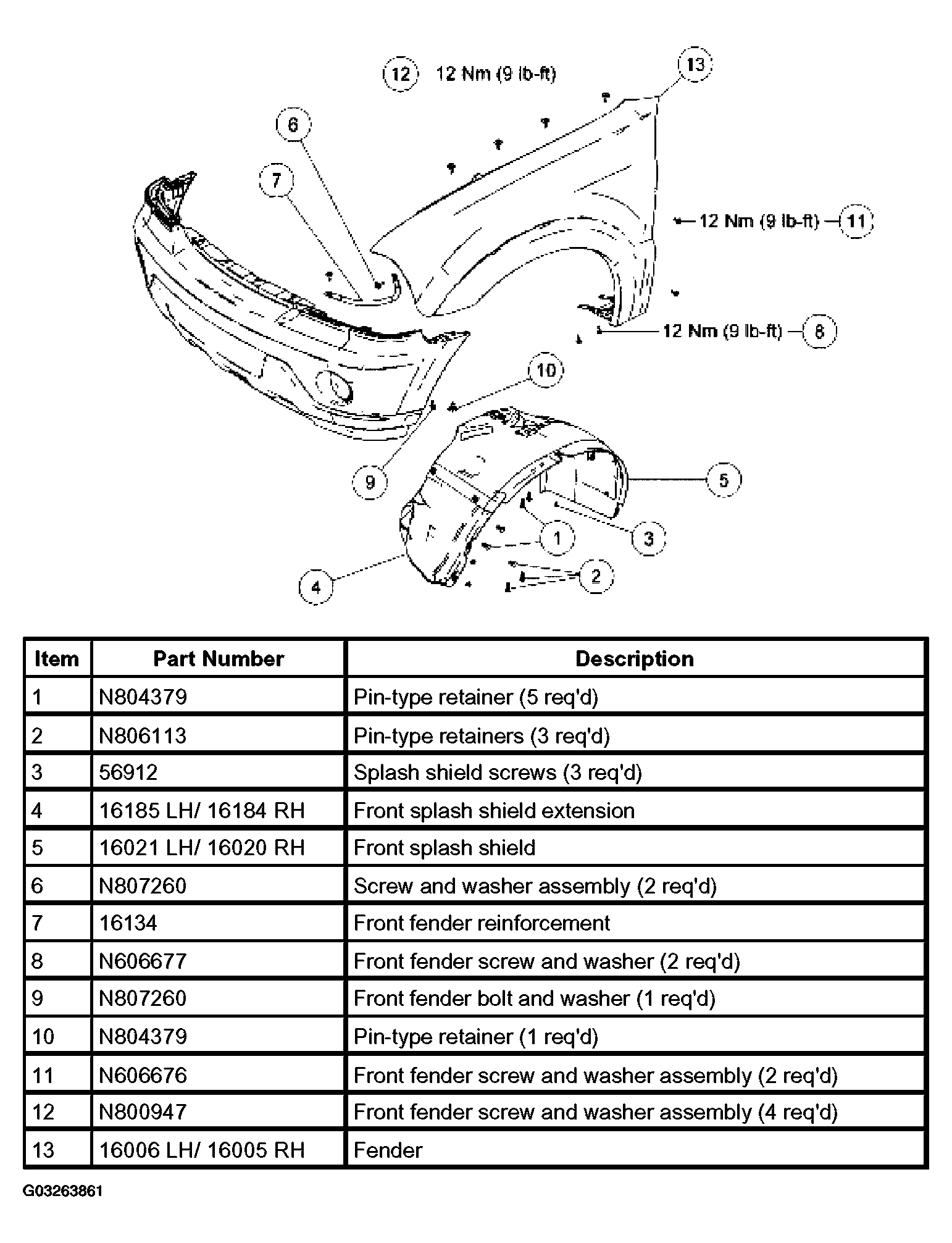

Fig 1: Removing Fender

Courtesy of FORD MOTOR CO.

NOTE: Transfer components as necessary.
