Seat Control Switch

  1. Remove the driver door panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the parts in the order indicated in the following illustration and table.

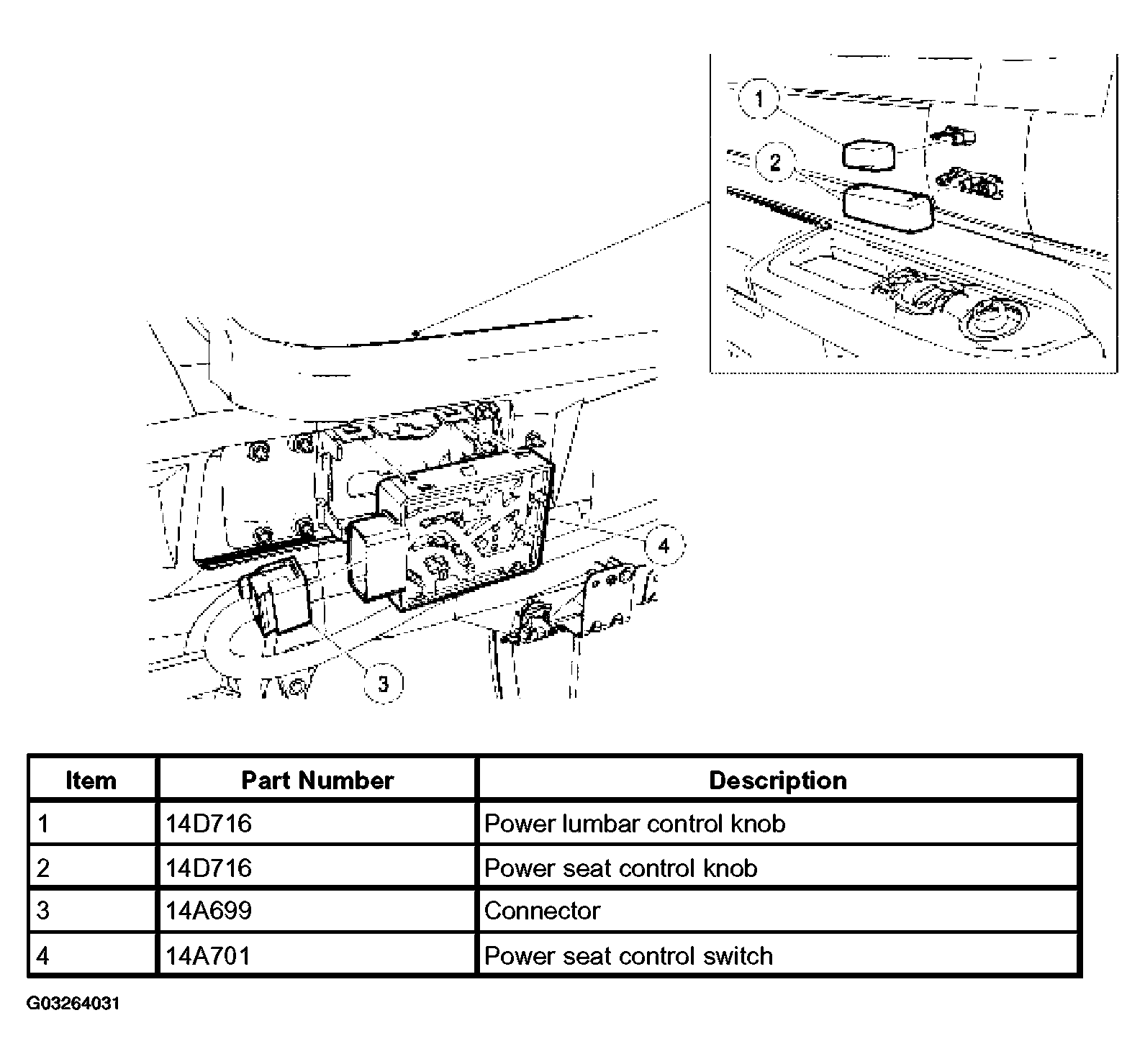

    Fig 1: Removing Seat Control Switch
    G03264031Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
