Roof Opening Panel Alignment

  1. Loosen the roof opening panel.
    • Loosen the four lifter arm bolts.
    Fig 1: Loosening Lifter Arm Bolts
    G03263613Courtesy of FORD MOTOR CO.
  2. Cycle the moon roof in the following sequence: open, close, vent, close.
  3. Position the roof opening panel to the roof panel as specified.

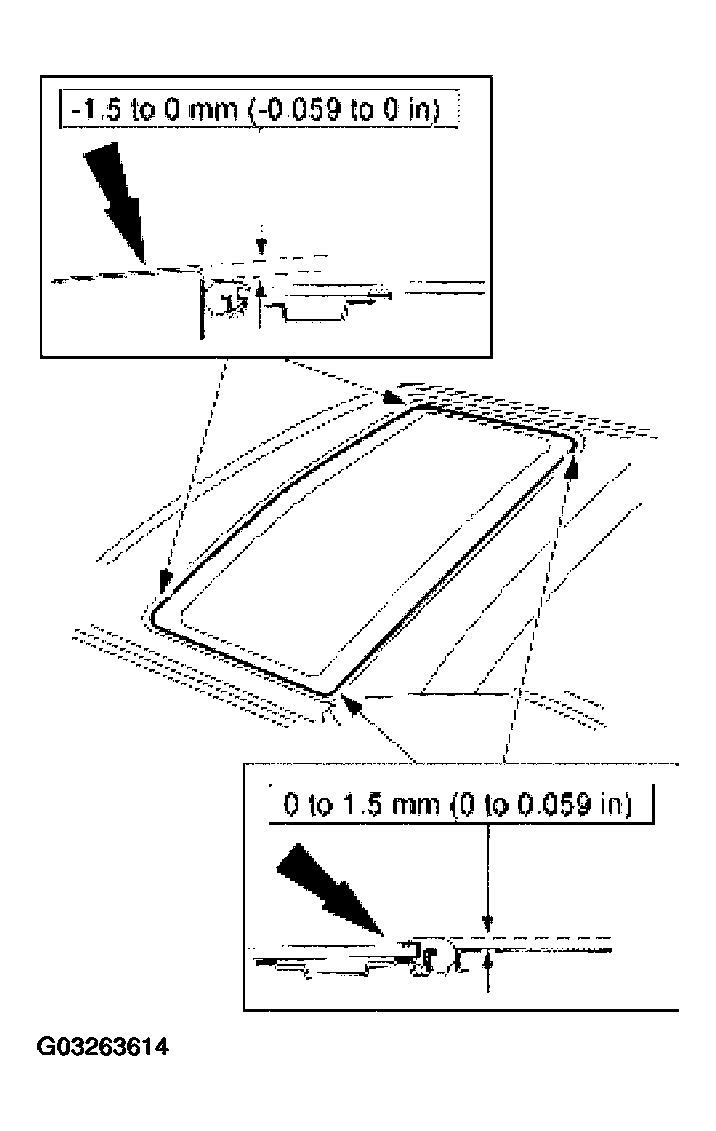

    Fig 2: Positioning Roof Opening Panel
    G03263614Courtesy of FORD MOTOR CO.
  4. Tighten the four lifter arm bolts.
    Fig 3: Tightening Lifter Arm Bolts
    G03263615Courtesy of FORD MOTOR CO.
