Audio Unit Amplifier: Notes

Disconnect the battery.
Remove the right side rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

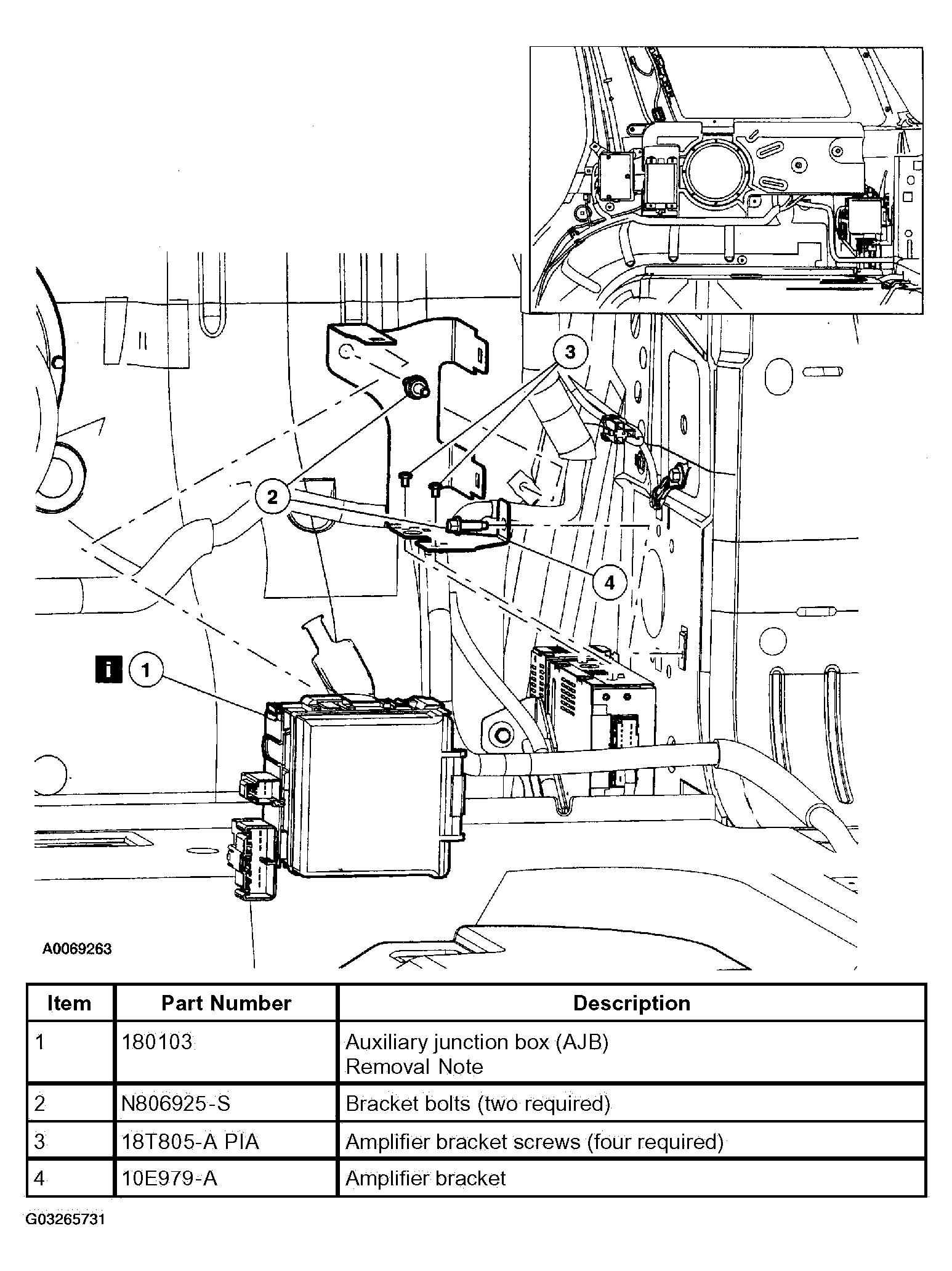

Fig 1: Identifying Removal Order Of Audio Unit Amplifier (Items 1-4)
Courtesy of FORD MOTOR CO.

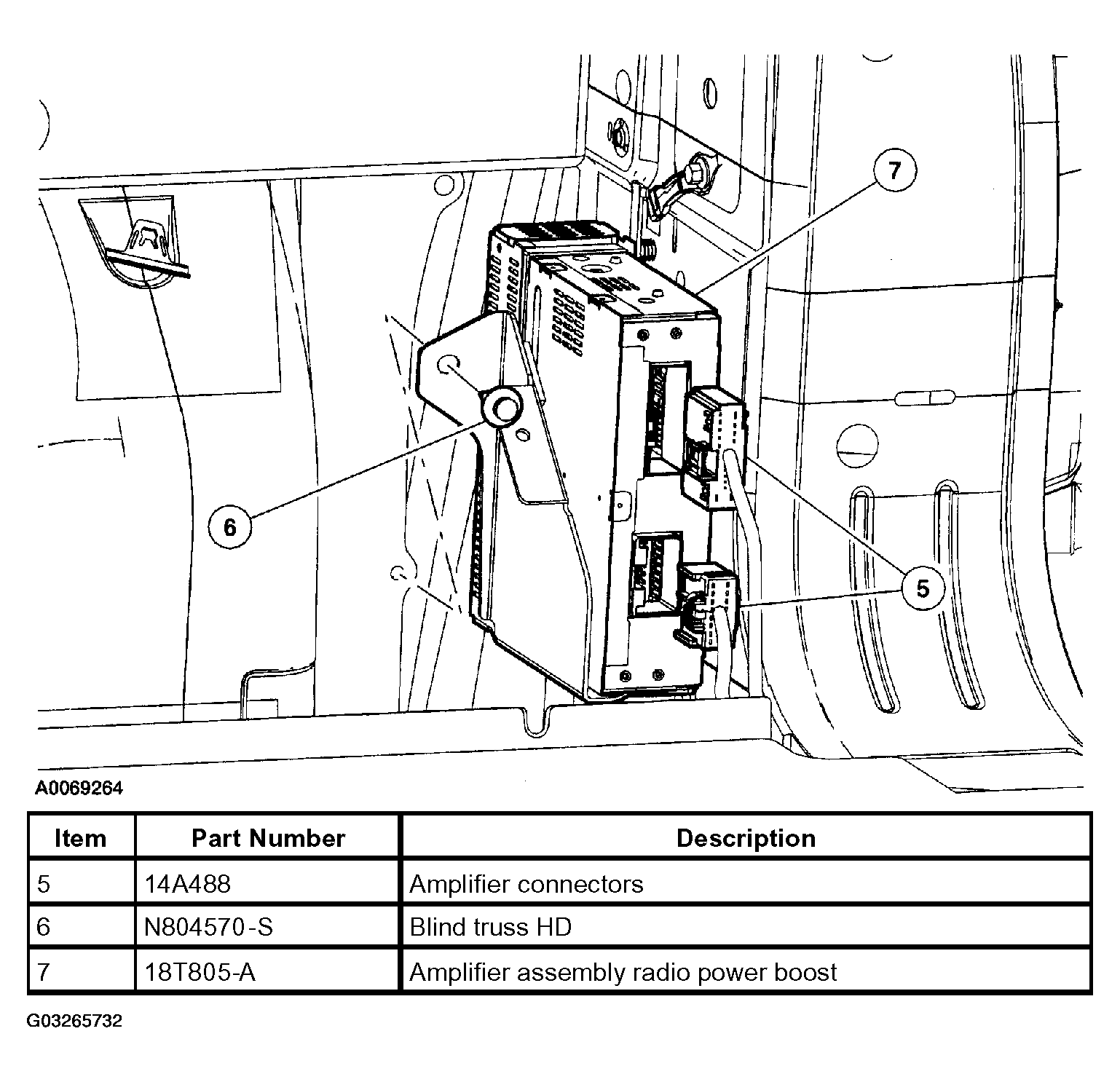

Fig 2: Identifying Removal Order Of Audio Unit Amplifier (Items 5-7)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
