Item 4: Panel Assembly Removal Note

  1. Remove the push pins.

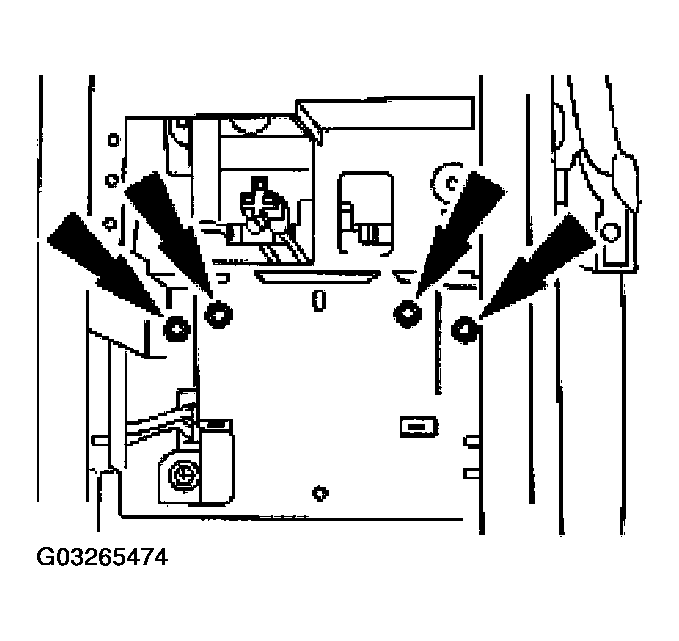

    Fig 1: Removing Push Pins
    G03265474Courtesy of FORD MOTOR CO.
  2. Remove the panel by prying rearward at the top of the panel.

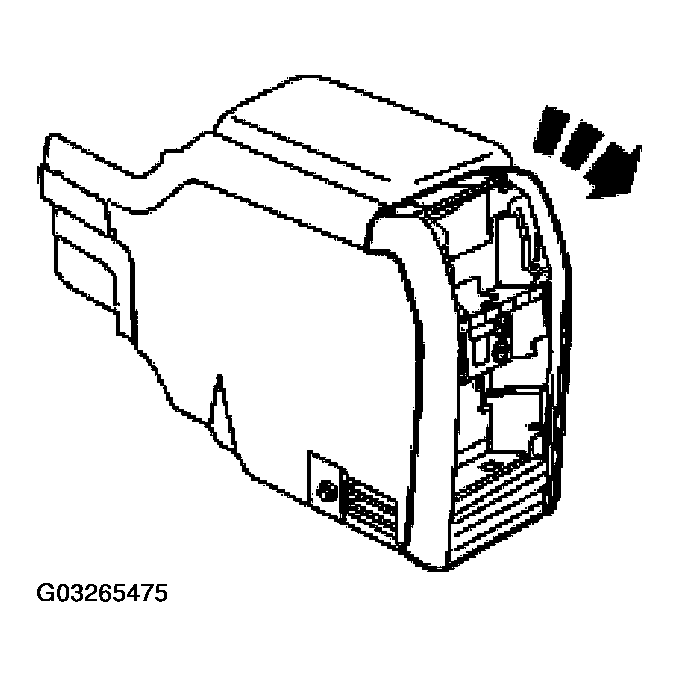

    Fig 2: Removing Panel By Prying Rearward At Top Of Panel
    G03265475Courtesy of FORD MOTOR CO.
