Four Wheel Drive (4WD) Control Module C281b

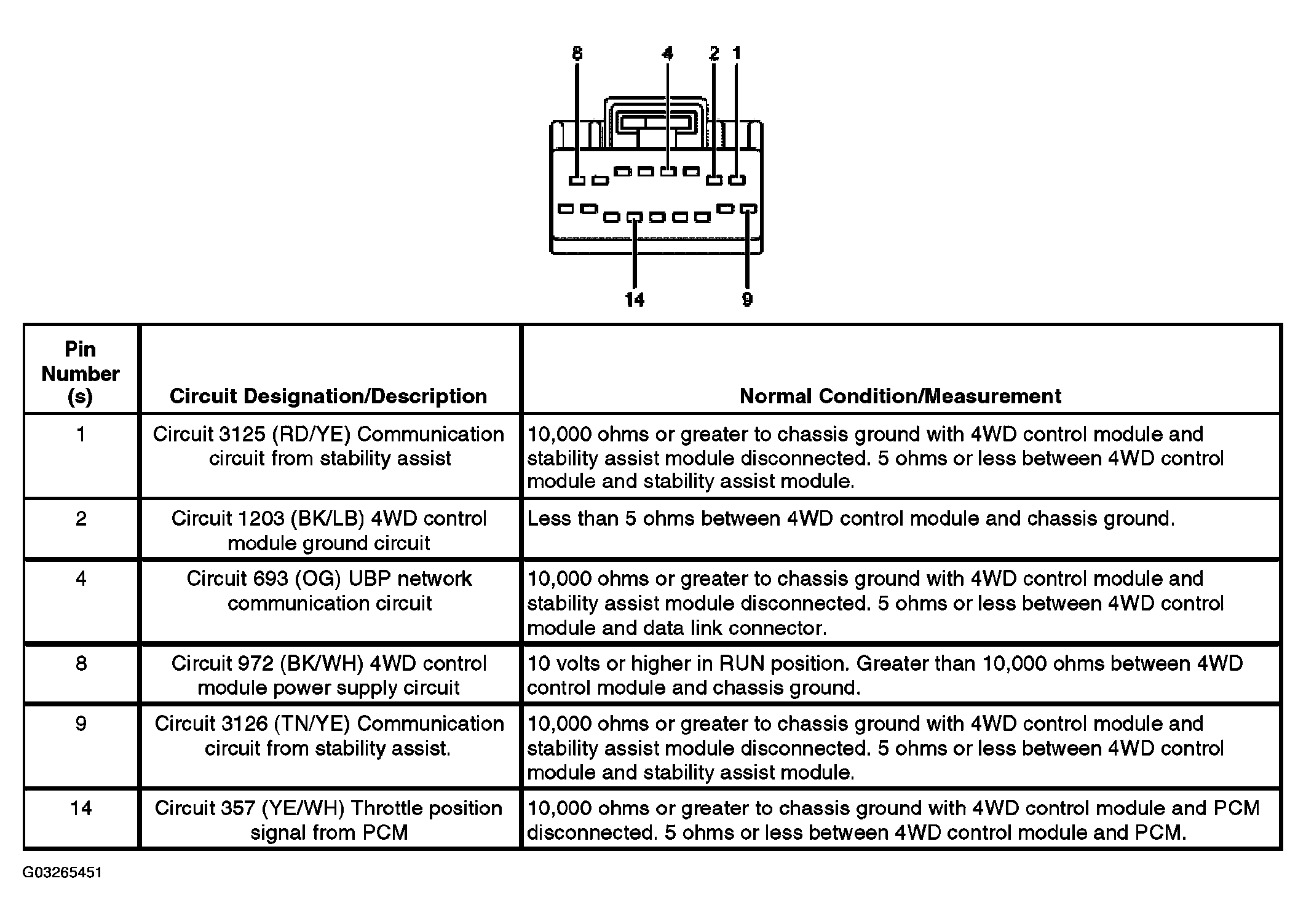

Fig 1: Identifying Four Wheel Drive (4WD) Control Module C281B Connectors Pins
G03265451Courtesy of FORD MOTOR CO.
