Special Tool(s)

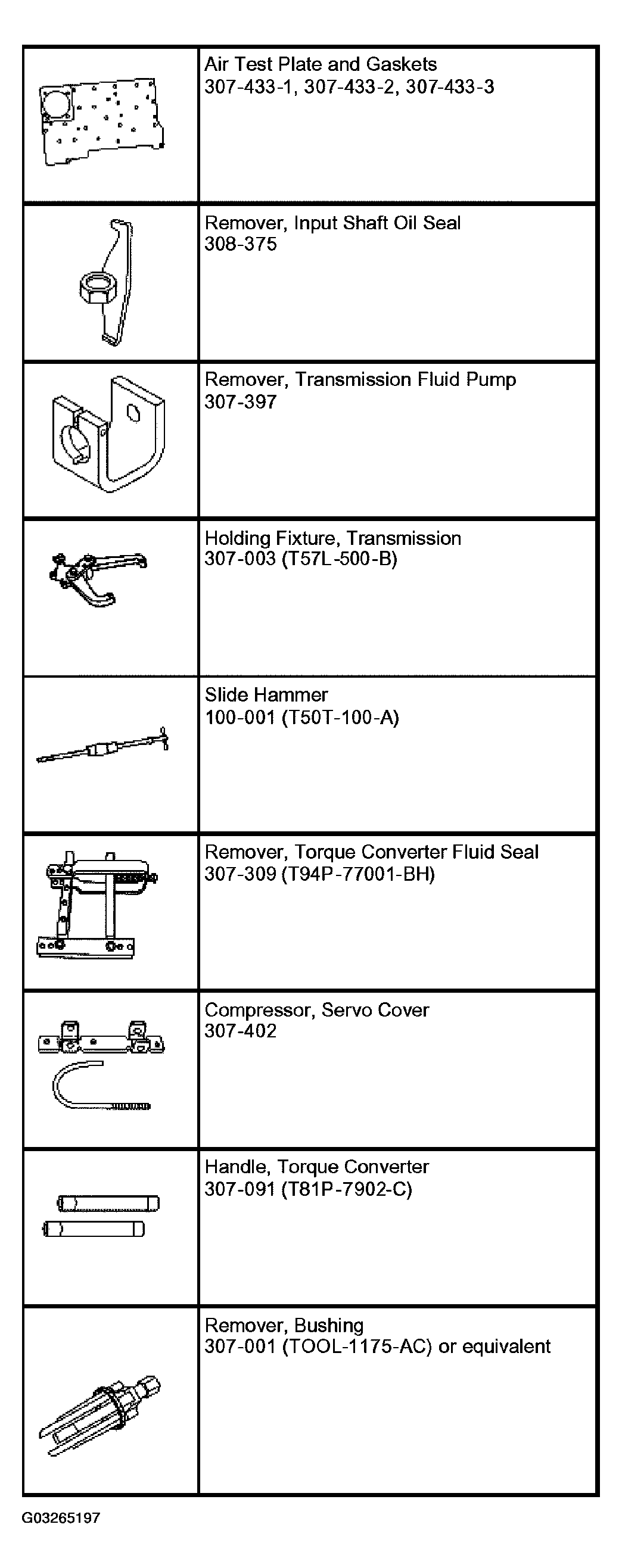

Fig 1: Identifying Special Tool(s)

G03265197

Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect the gasket for damage. If not damaged, the gasket should be reused.

NOTE: Tag and identify all parts for reassembly.

Remove the parts in the order indicated in the following illustration and table.

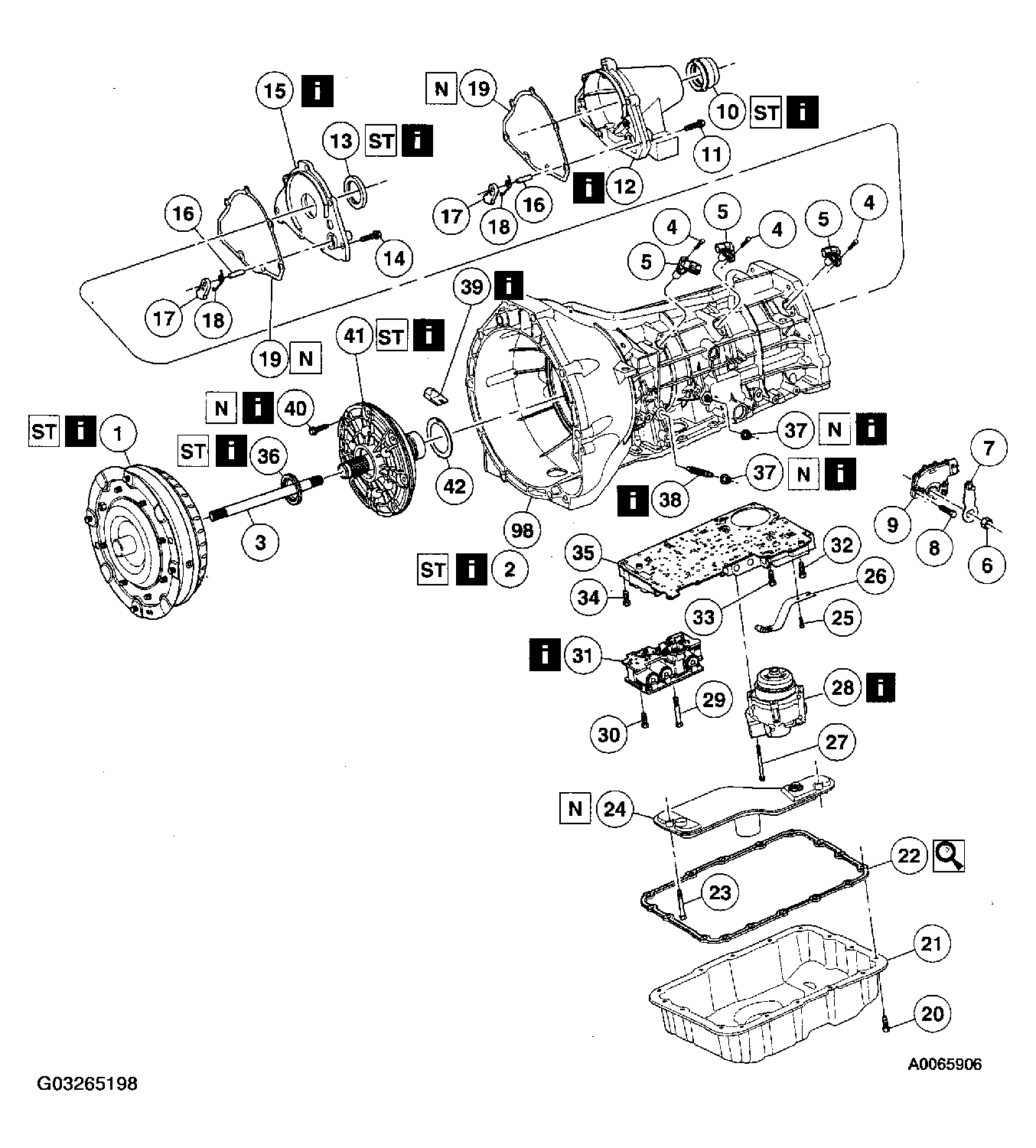

Fig 2: Removing Transmission Components
Courtesy of FORD MOTOR CO.

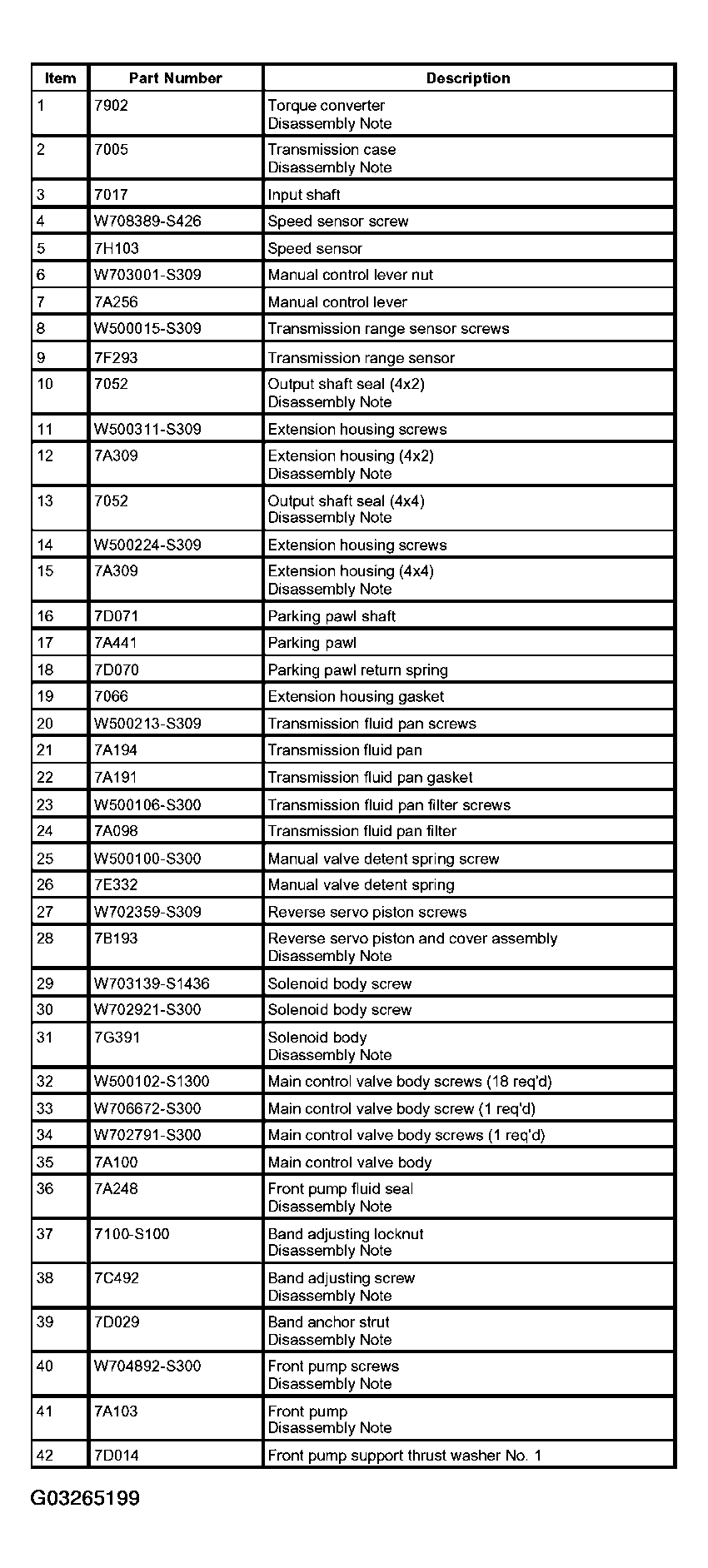

Fig 3: Parts Description Table
Courtesy of FORD MOTOR CO.

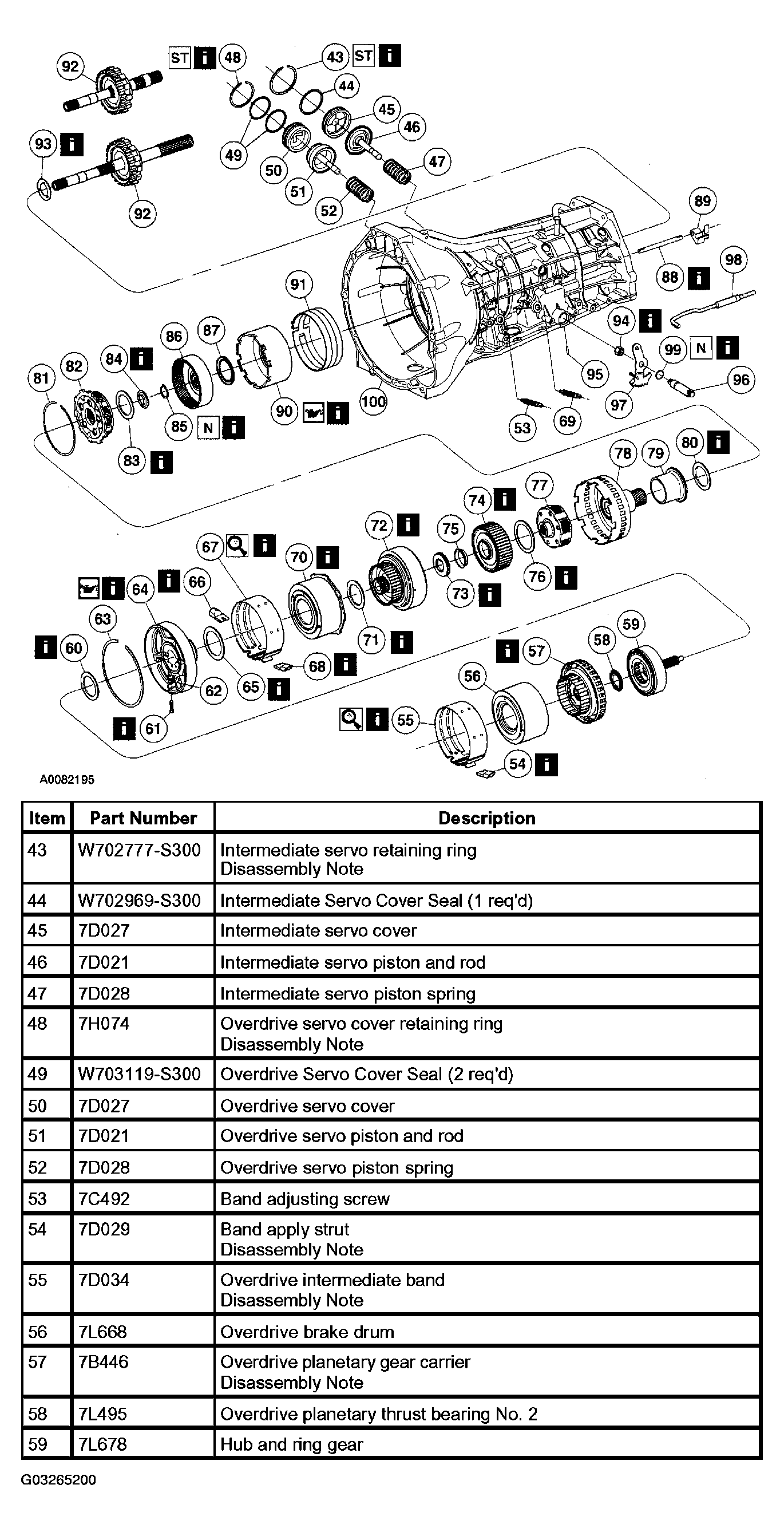

Fig 4: Removing Transmission Components
Courtesy of FORD MOTOR CO.

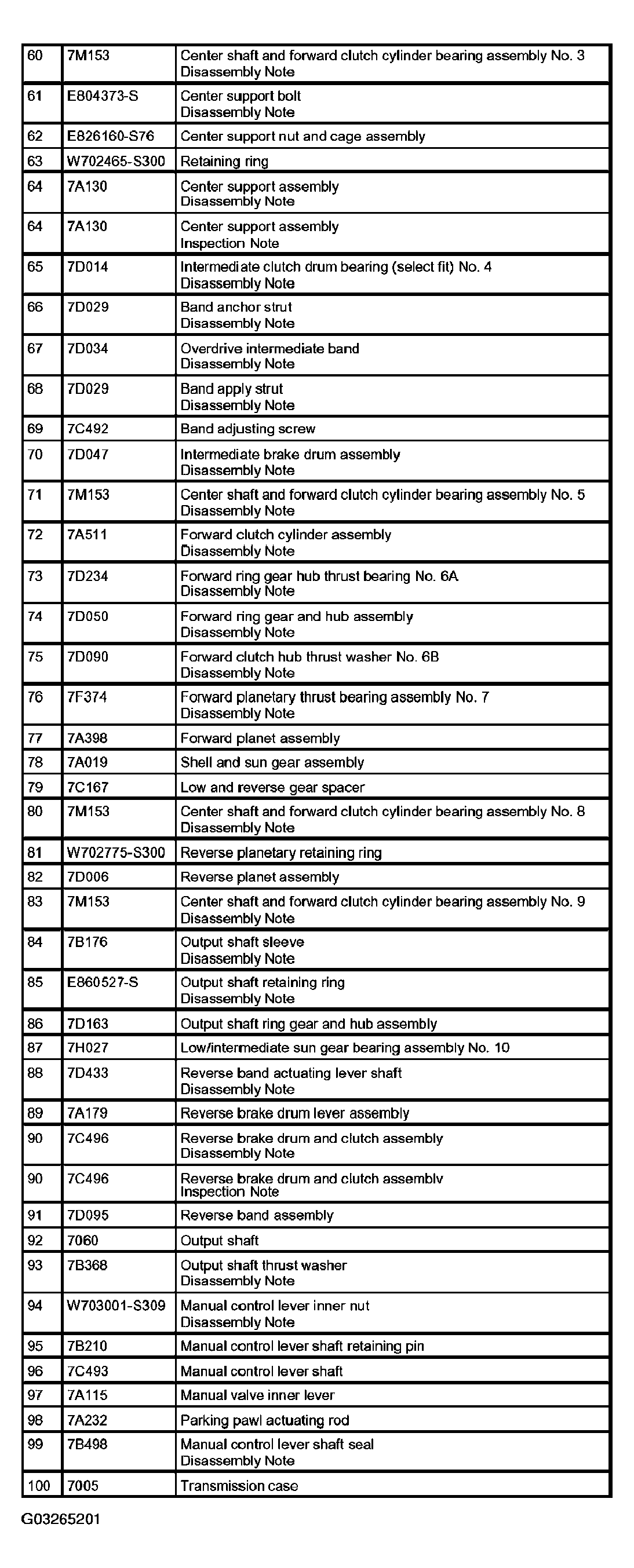

Fig 5: Parts Description Table
Courtesy of FORD MOTOR CO.
