Items 1 and 2: Main Control Valve Body Separator Plate Assembly Note

    NOTE: Use a new valve body separator plate for main control valve body installation.

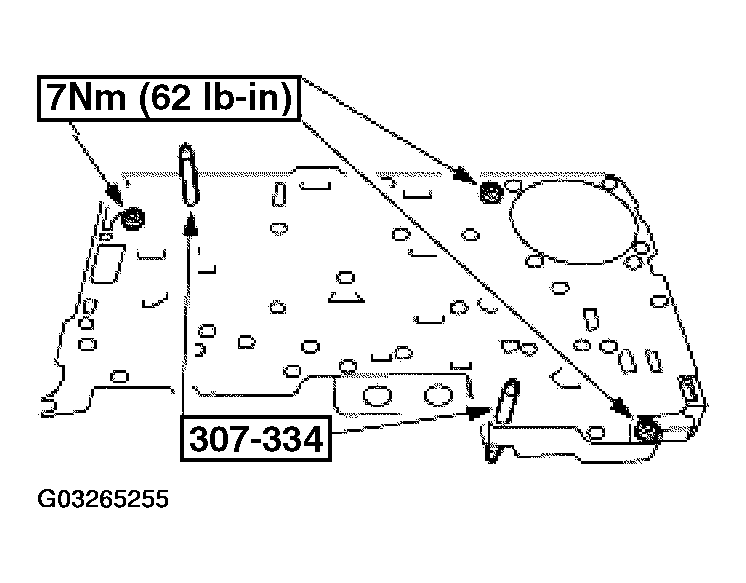

    Fig 1: Installing Main Control Valve Body Separator Plate
    G03265255Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the main control valve body separator plate.
