Item 59: Fluid Pump Assembly Note

    CAUTION: Make sure that the fluid pump inlet thrust washer (No. 1), selective thrust washer, fluid pump gasket and the fluid pump-to-case O-ring seal remain in the correct position throughout this step.

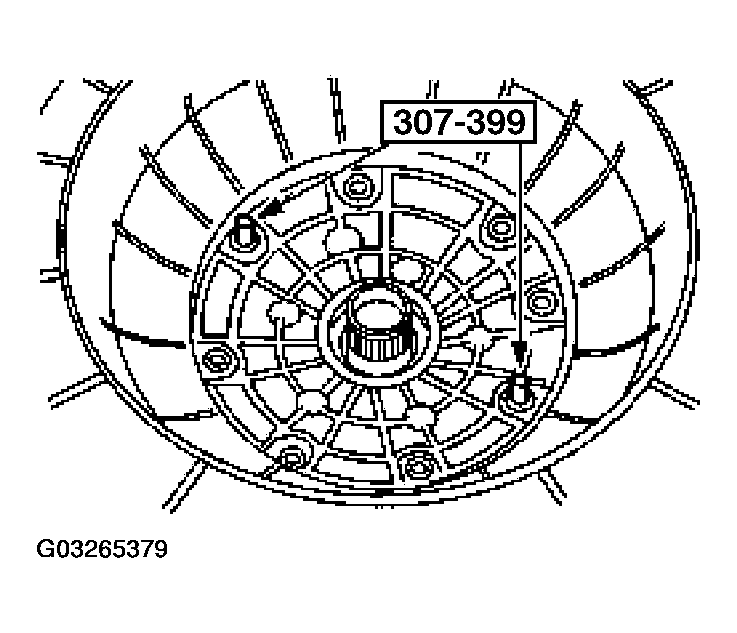

    Fig 1: Installing Fluid Pump
    G03265379Courtesy of FORD MOTOR CO.
  1. Install the fluid pump.
    2. CAUTION: The special tools must be used to correctly align the pump with the adapter plate to reduce gear noise, bushing failure and leakage.

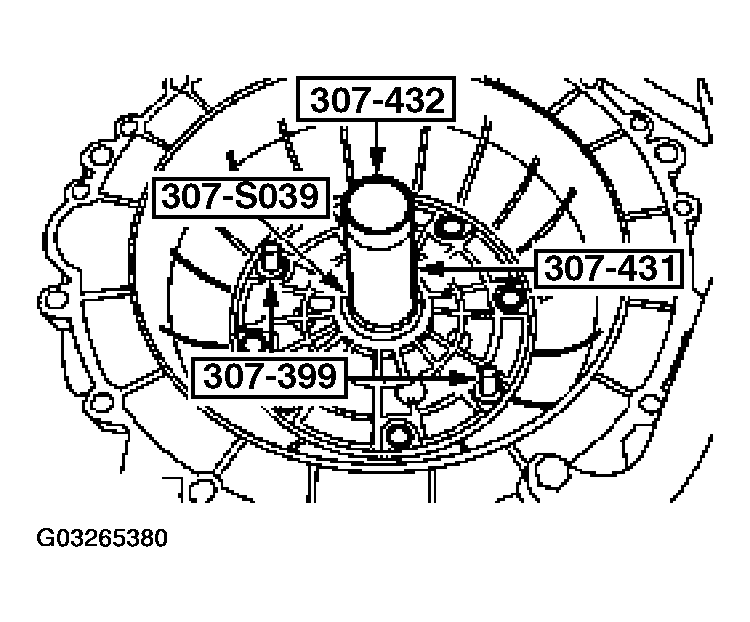

    Fig 2: Aligning Fluid Pump To Adapter Plate
    G03265380Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the fluid pump to the adapter plate.
