Cooling Module: Notes

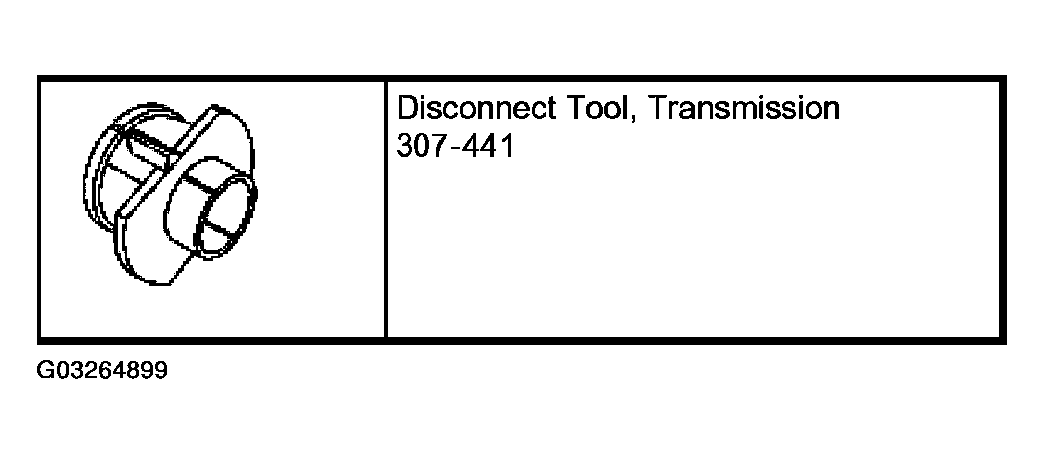

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIALS

Item	Specification
Motorcraft Premium Engine Coolant VC-4-A (in Canada CXC-10, in Oregon VC-5) or equivalent (green color)	ESE-M97B44-A
Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color)	WSS-M97B51-A1
PAG Compressor Oil (R-134a Systems) F7AZ-19589-DA (MC YN-12-C)	WSH-M1C231-B

Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM .
Remove the fan shroud. For additional information refer to RADIATOR, COOLING FAN AND SHROUD, AND DEGAS BOTTLE .
Remove the parts in the order indicated in the following illustration and table.

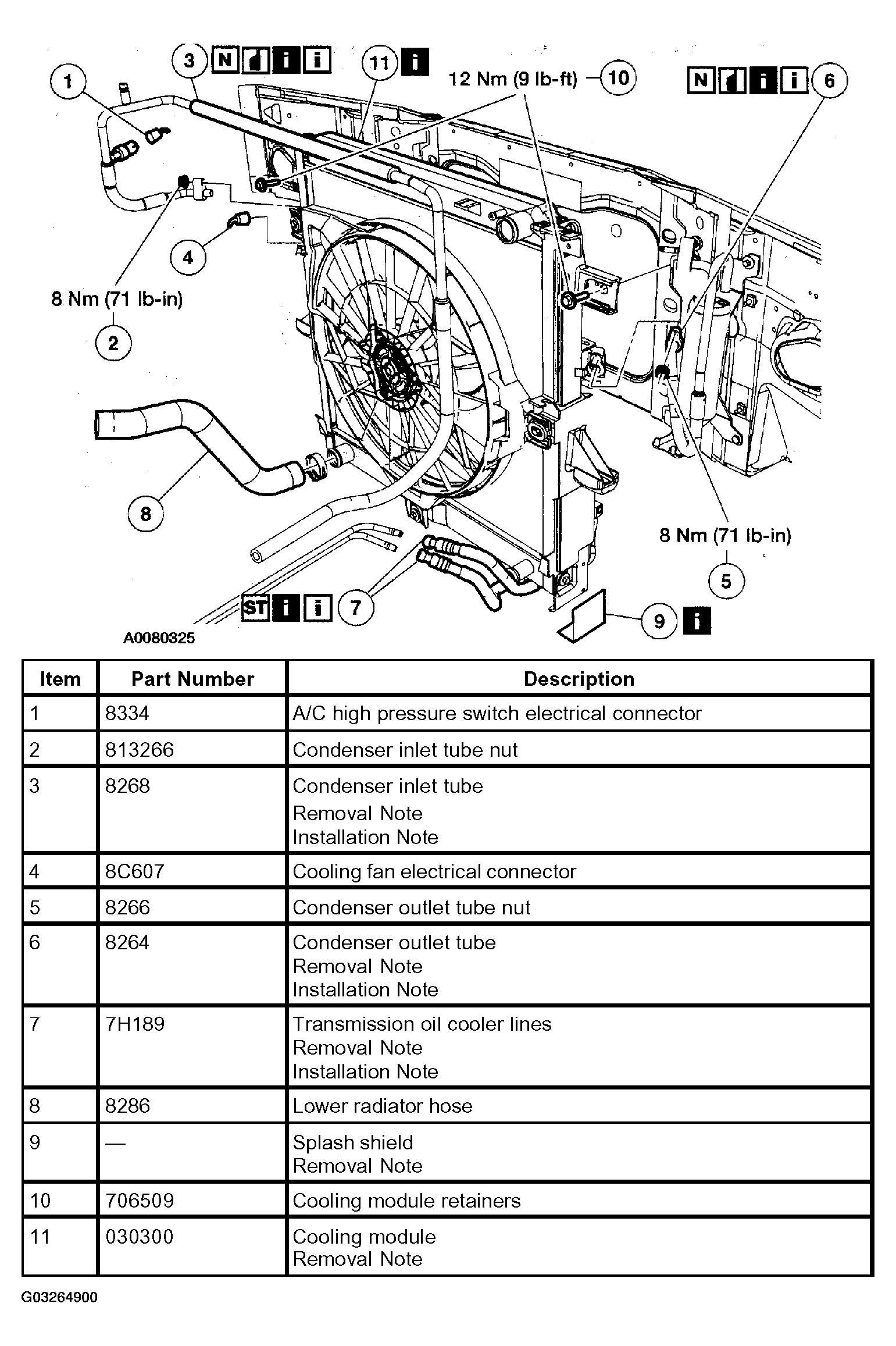

Fig 2: Removing Cooling Module Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
