Item 14: Differential Case Assembly Note

  1. Install the special tools.
    • Position the clutch housing gauge needle in the differential carrier spreader adapter hole.

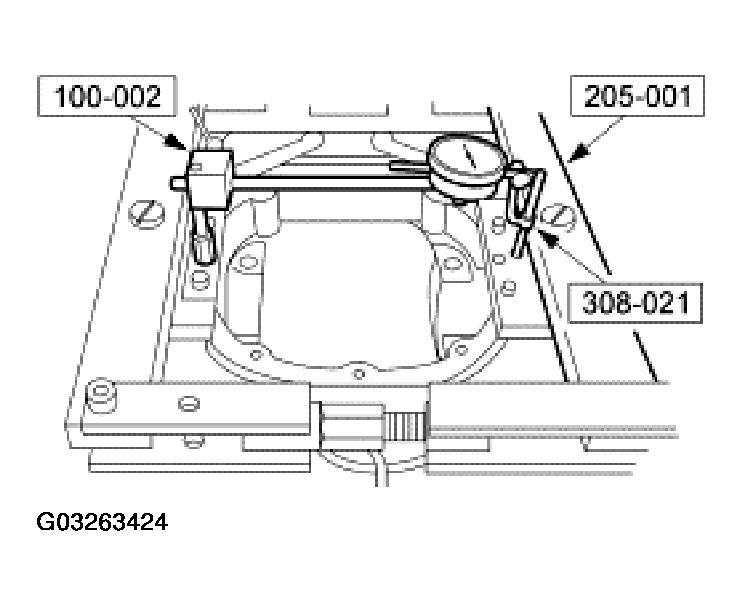

    Fig 1: Installing Special Tools
    G03263424Courtesy of FORD MOTOR CO.
    2. CAUTION: Overspreading can damage the differential housing.

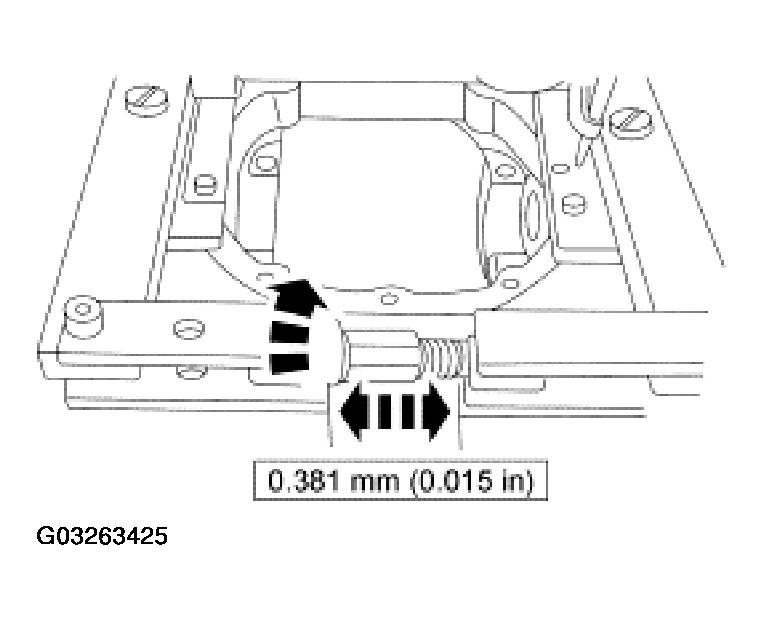

    Fig 2: Spreading Differential Housing To Specification
    G03263425Courtesy of FORD MOTOR CO.
  2. Spread the differential housing to the specification.
  3. Remove the special tools.

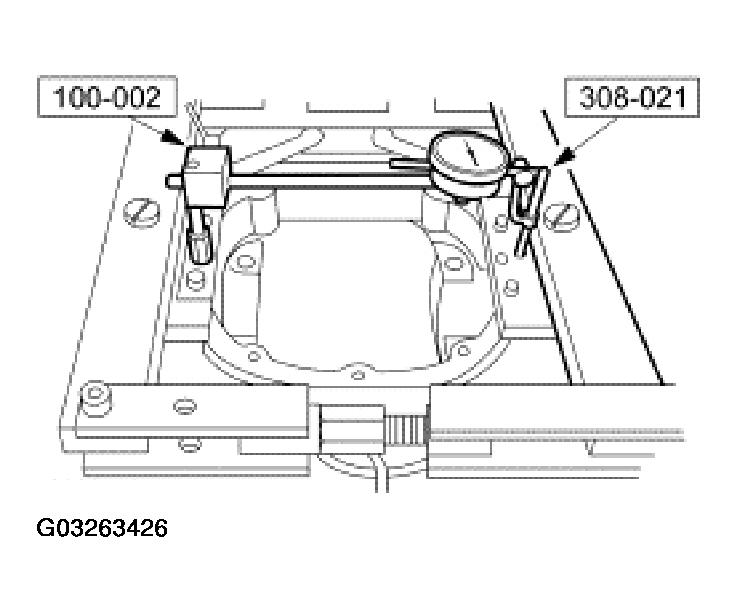

    Fig 3: Removing Special Tools
    G03263426Courtesy of FORD MOTOR CO.
    4. NOTE: Push the differential case downward to fully seat the differential bearing cups in the differential housing.

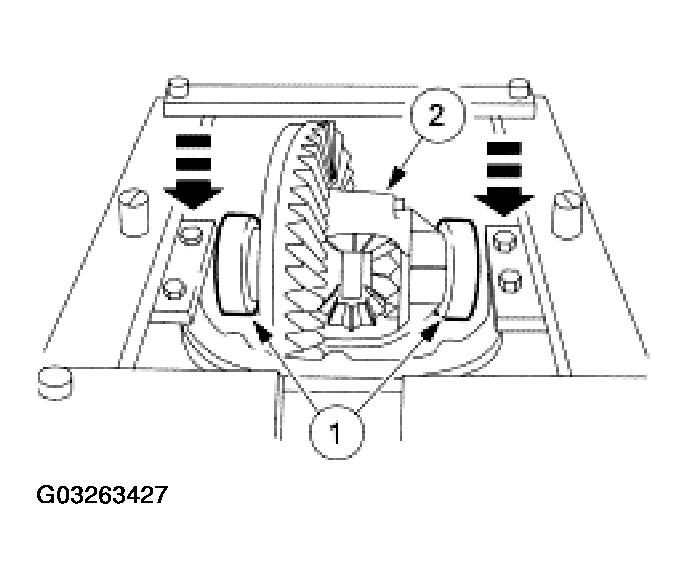

    Fig 4: Installing Differential Bearing Cups And Differential Case
    G03263427Courtesy of FORD MOTOR CO.
  4. Install the differential bearing cups and the differential case in the differential housing.
    1. Position the differential bearing cups on the differential bearings.
    2. Lower the differential case in place.
    5. CAUTION: Do not tighten the bolts to specification at this time.

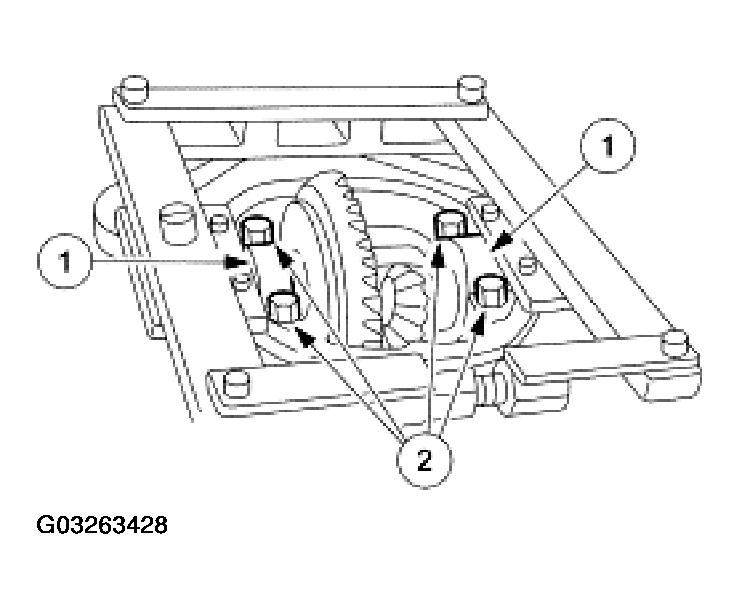

    Fig 5: Installing Differential Bearing Caps
    G03263428Courtesy of FORD MOTOR CO.
  5. Install the differential bearing caps in their original positions.
    1. Position the differential bearing caps.
    2. Install the bolts hand-tight.
  6. Remove the special tools.

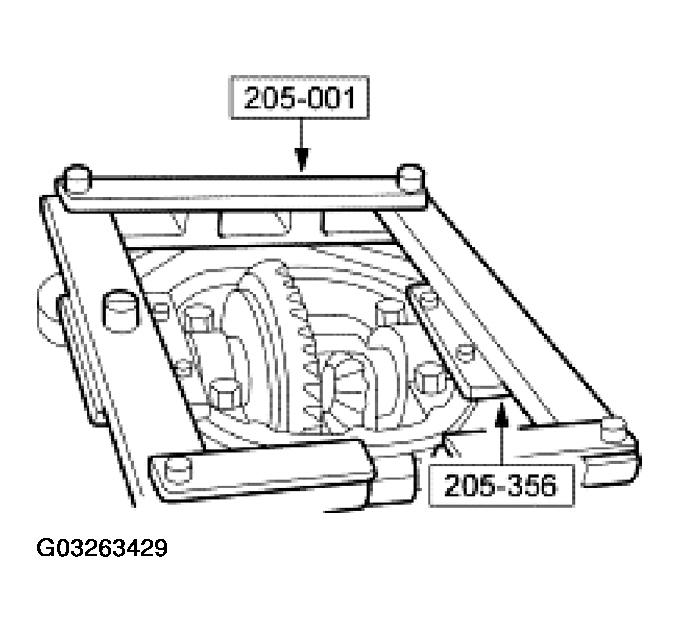

    Fig 6: Removing Special Tools
    G03263429Courtesy of FORD MOTOR CO.
  7. Tighten the bolts.

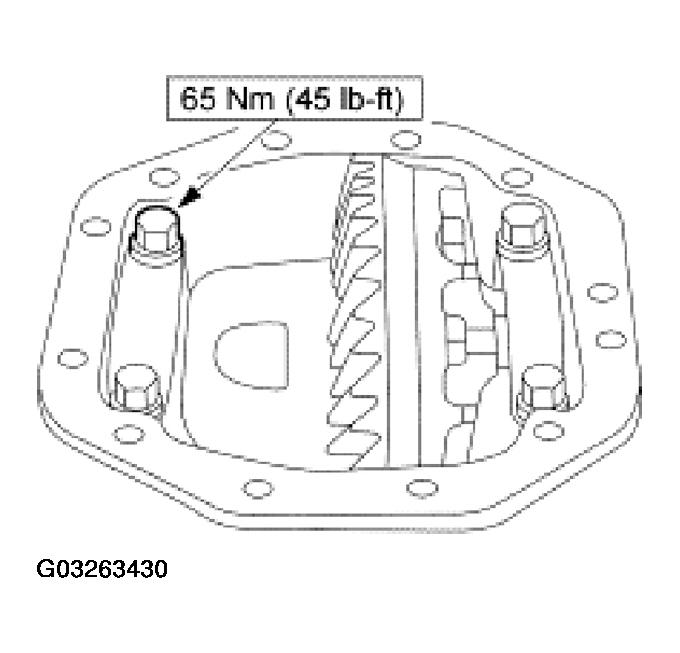

    Fig 7: Tightening Bearing Cap Bolts
    G03263430Courtesy of FORD MOTOR CO.
  8. Verify that the differential case rotates freely.
  9. Using the special tools, measure the backlash at three equally spaced points on the differential ring gear.
    1. Mount the special tool.
    2. Position the special tool.
    3. Zero the indicator.
    4. Turn the differential ring gear without turning the pinion gear. Record the measurement.
      • The backlash tolerance is 0.13 mm (0.005 in) to 0.20 mm (0.008 in) and cannot vary more than 0.05 mm (0.002 in) between points checked. A backlash variation of more than 0.005 mm (0.002 in) indicates gear/case runout.
      • If the backlash is not within specification, correct by increasing the thickness of one differential bearing shim and decreasing the thickness of the other differential bearing shim by the same amount.

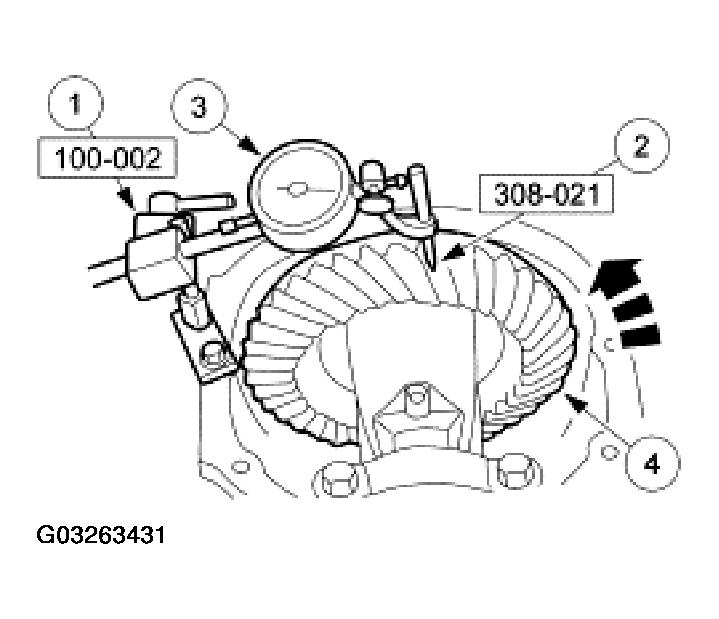

    Fig 8: Measuring Backlash
    G03263431Courtesy of FORD MOTOR CO.
