Door Lock Unit, Passenger Side Front (5421812)

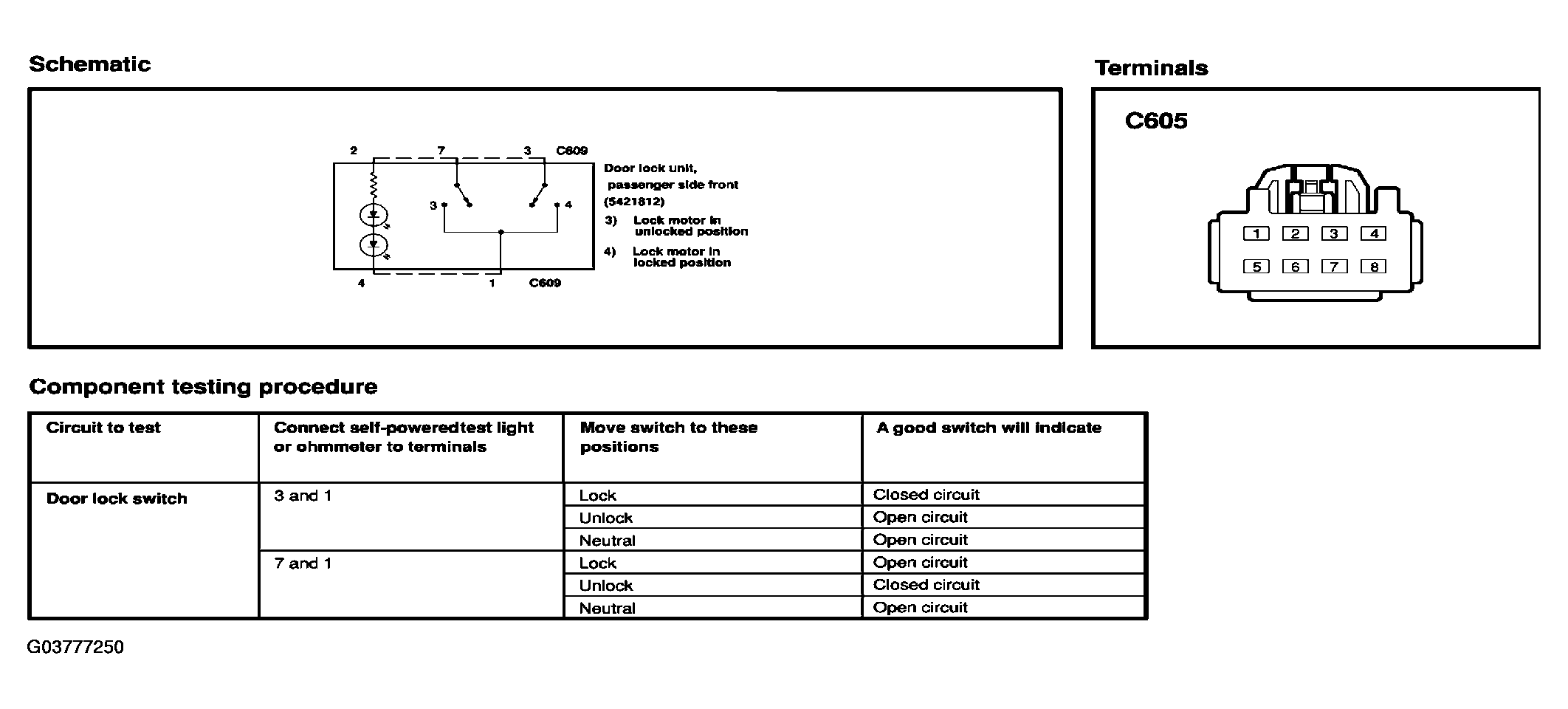

Fig 1: Testing Door Lock Switch - Passenger Side Front

G03777250

Courtesy of FORD MOTOR CO.
