Door Lock Switch, Drivers Side (14028)

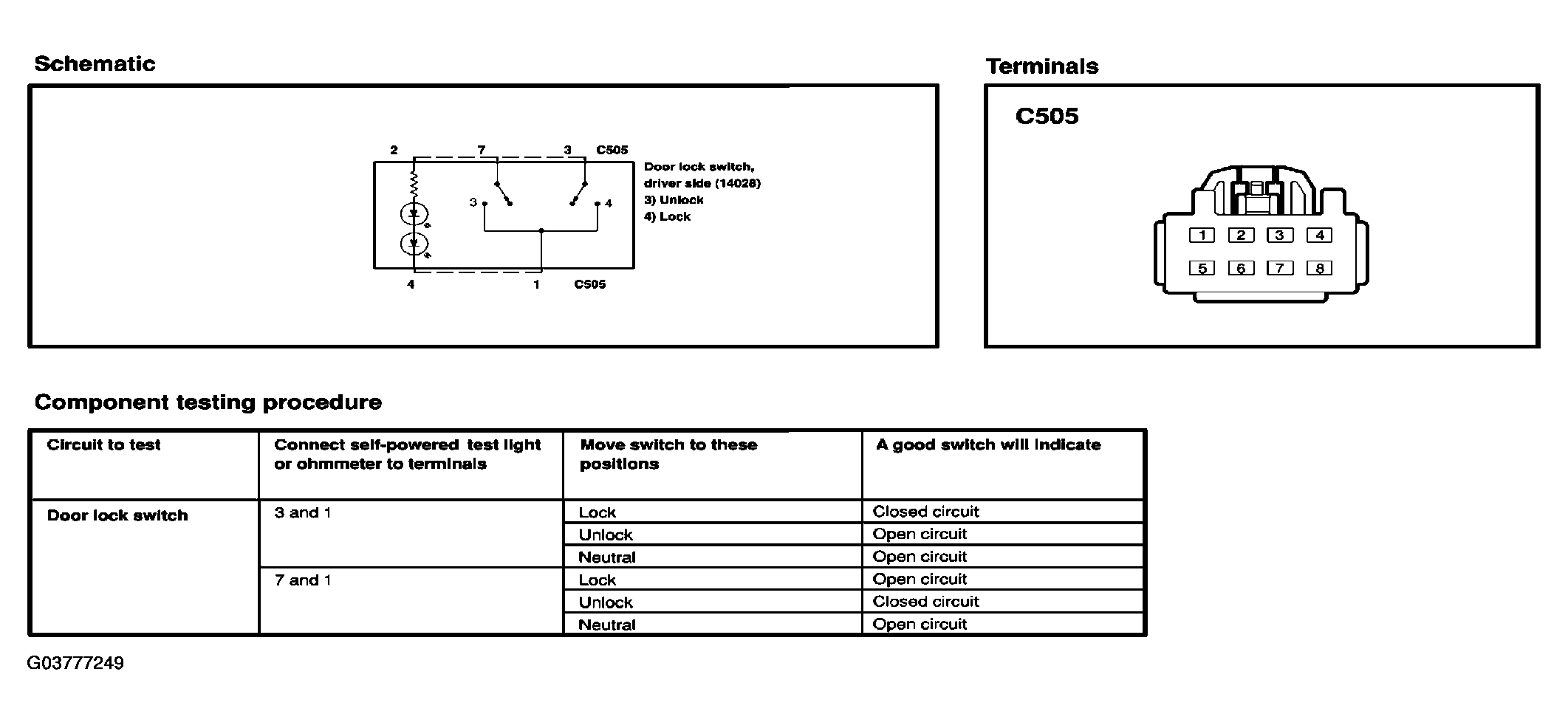

Fig 1: Testing Door Lock Switch - Drivers Side

G03777249

Courtesy of FORD MOTOR CO.
