Transmission Support Crossmember: Installation

  1. Position the LH side of the crossmember into the crossmember pocket and loosely install the bolts.
    Fig 1: Installing Left Side Of Crossmember
    G01336004Courtesy of FORD MOTOR CO.
  2. Position the RH side of the crossmember into the crossmember pocket and loosely install the bolts.
    Fig 2: Installing Right Side Of Crossmember
    G01336005Courtesy of FORD MOTOR CO.
  3. Tighten the LH crossmember bolts.
    Fig 3: Tightening Left Crossmember Bolts
    G01336006Courtesy of FORD MOTOR CO.
  4. Tighten the RH crossmember bolts.
    Fig 4: Tightening Right Crossmember Bolts
    G01336007Courtesy of FORD MOTOR CO.
  5. Install the parking brake cable bracket.

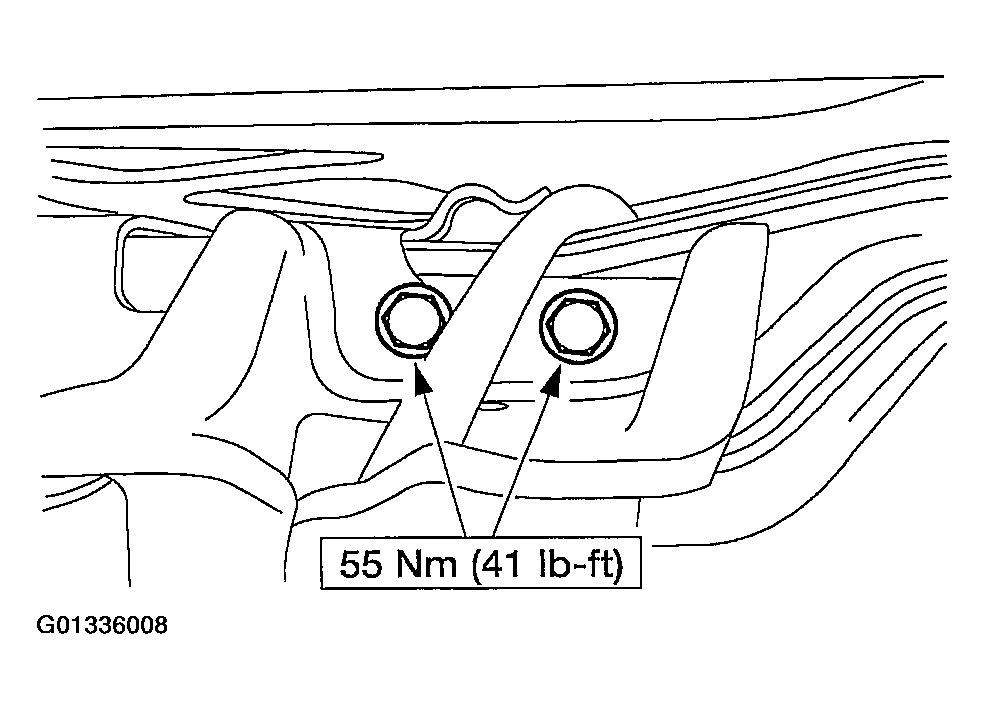

    Fig 5: Installing Parking Brake Cable Bracket Bolts
    G01336008Courtesy of FORD MOTOR CO.
  6. Lower the transmission onto the crossmember and install the rear transmission insulator nuts.
    Fig 6: Installing Rear Transmission
    G01336009Courtesy of FORD MOTOR CO.
  7. Remove the transmission jack.
  8. Position the RH catalytic converter assembly in place. Do not tighten the clamp at this time.

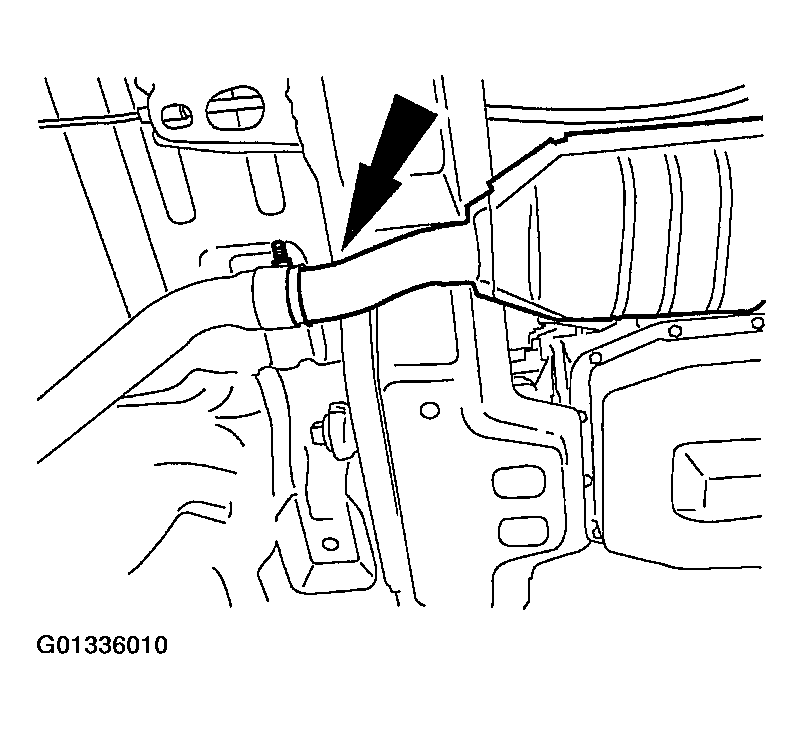

    Fig 7: Positioning Right Catalytic Converter Assembly
    G01336010Courtesy of FORD MOTOR CO.
  9. Install the RH exhaust flange nuts.

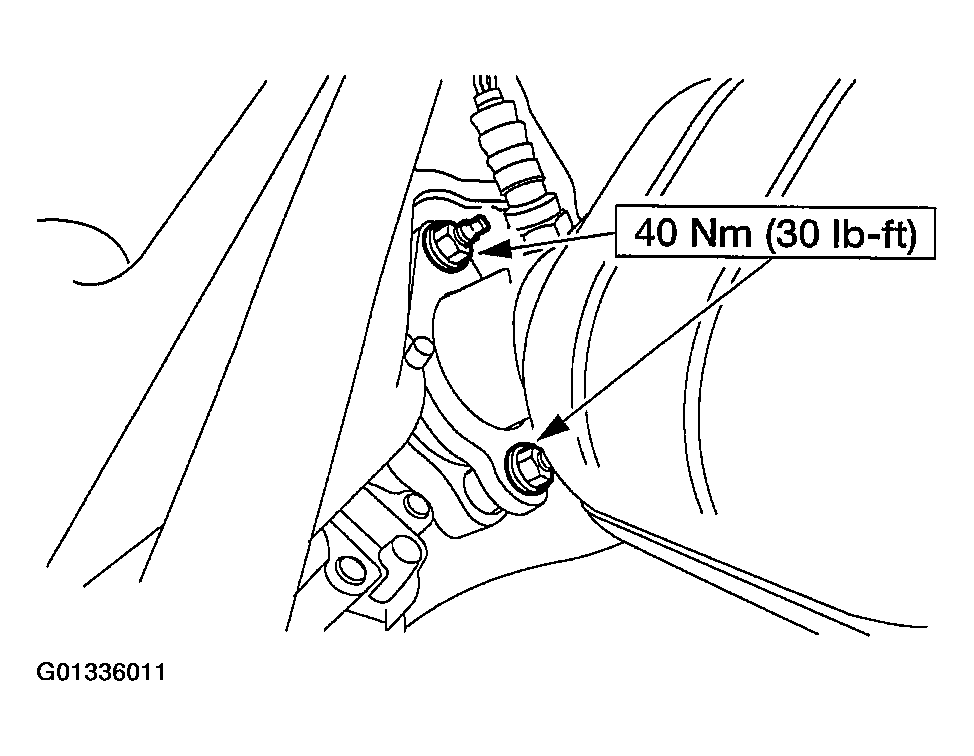

    Fig 8: Install Right Exhaust Flange Nuts
    G01336011Courtesy of FORD MOTOR CO.
  10. Tighten the RH exhaust clamp.
    Fig 9: Tighten Right Exhaust Clamp
    G01336012Courtesy of FORD MOTOR CO.
  11. Connect the RH HO2S sensor connector.

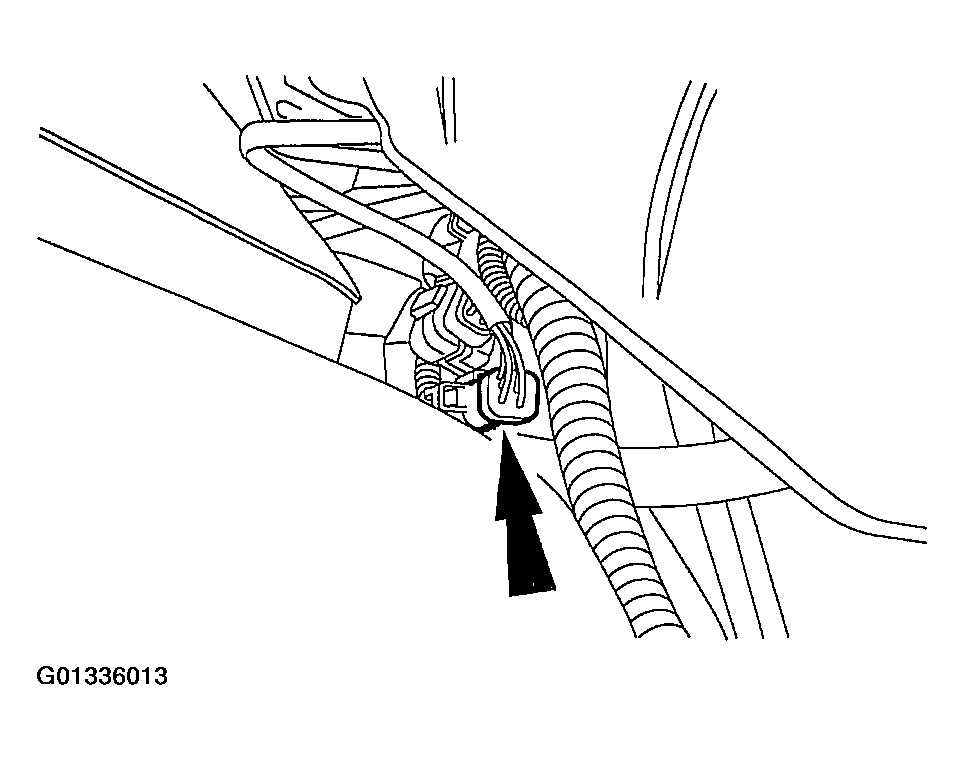

    Fig 10: Connecting Right HO2S Connector
    G01336013Courtesy of FORD MOTOR CO.
  12. Connect the RH catalyst monitor connector.

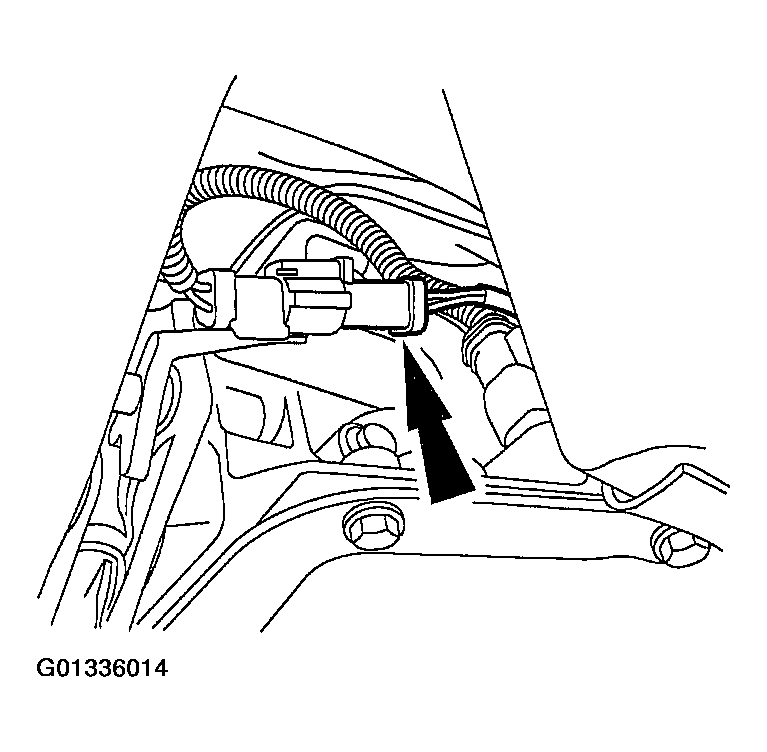

    Fig 11: Connecting Right Catalyst Monitor Connector
    G01336014Courtesy of FORD MOTOR CO.
  13. Position the LH catalytic converter assembly in place. Do not tighten the clamps at this time.

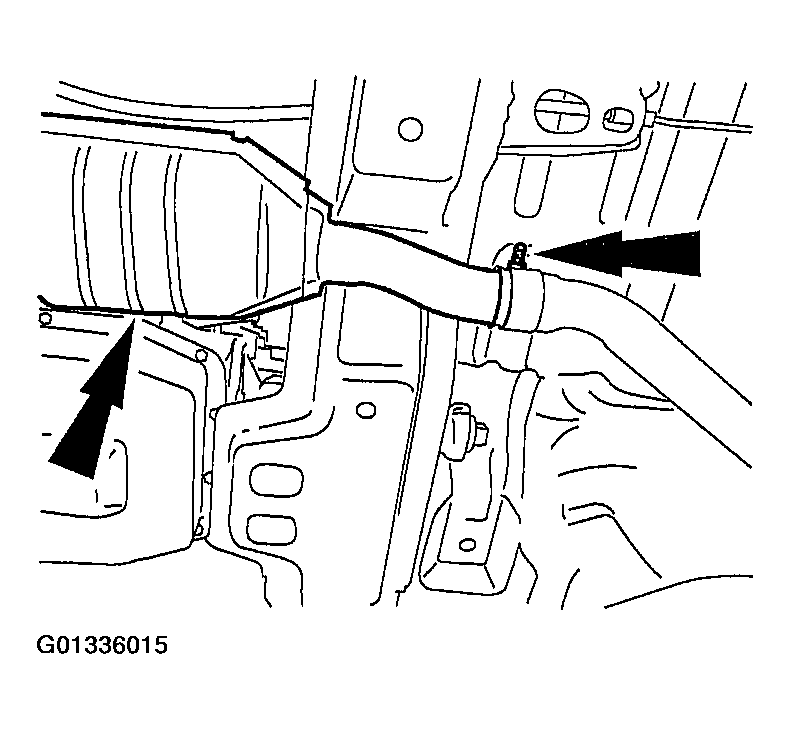

    Fig 12: Positioning Left Catalytic Converter Assembly
    G01336015Courtesy of FORD MOTOR CO.
  14. Install the LH exhaust flange nuts.

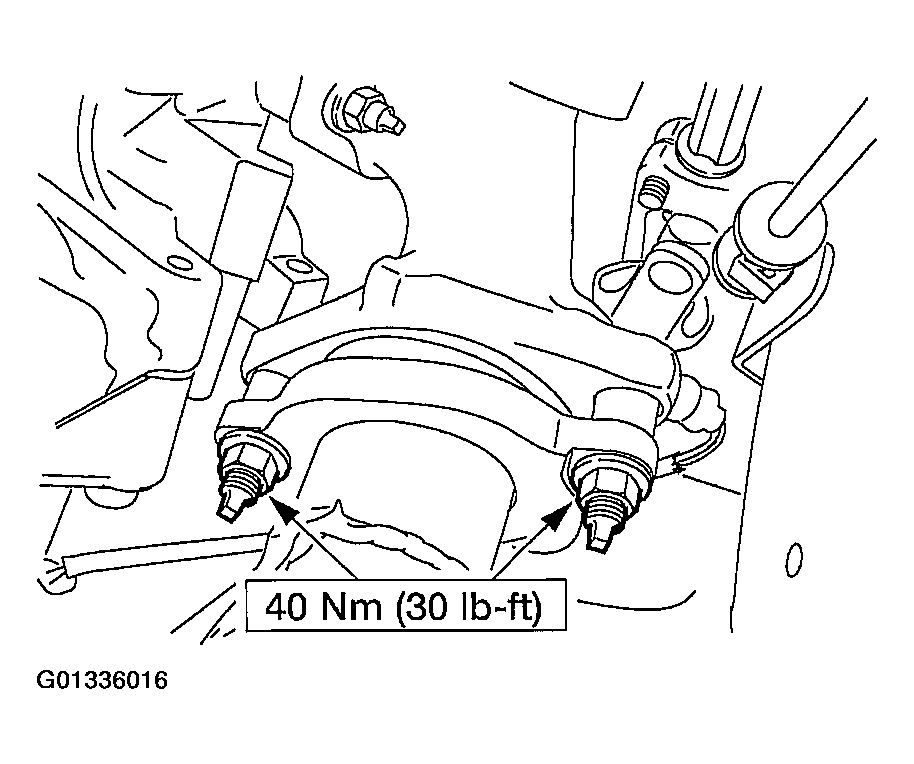

    Fig 13: Installing Left Exhaust Flange Nuts
    G01336016Courtesy of FORD MOTOR CO.
  15. Tighten the LH exhaust clamp.
    Fig 14: Tightening Left Exhaust Clamp
    G01336017Courtesy of FORD MOTOR CO.
  16. Connect the LH HO2S sensor connector.

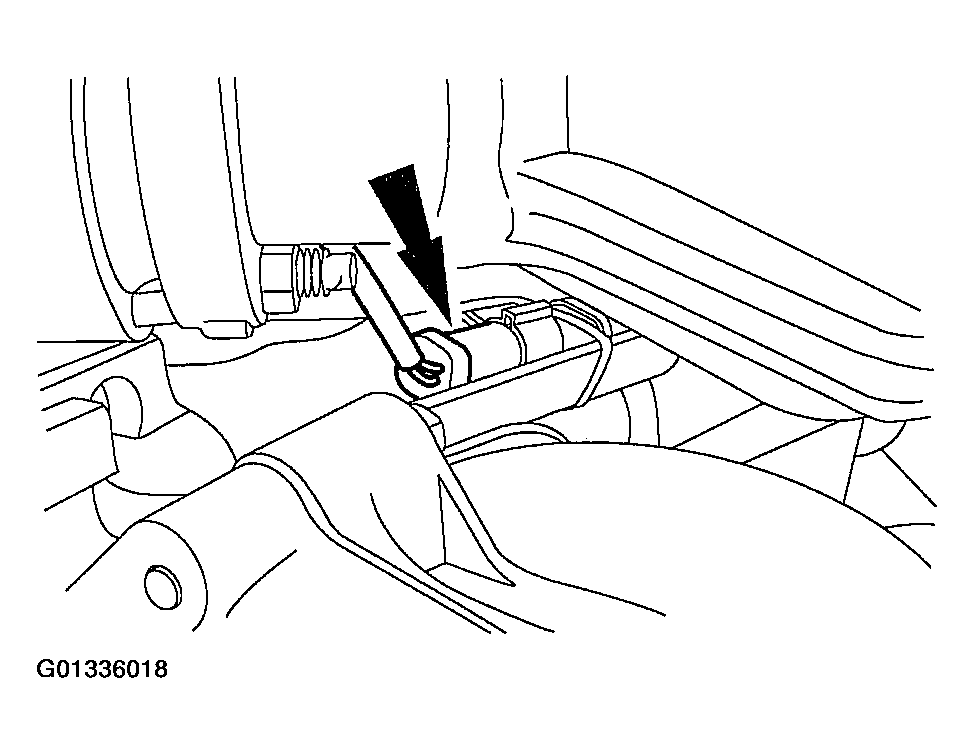

    Fig 15: Connecting Left HO2S Connector
    G01336018Courtesy of FORD MOTOR CO.
  17. Connect the LH catalyst monitor connector.

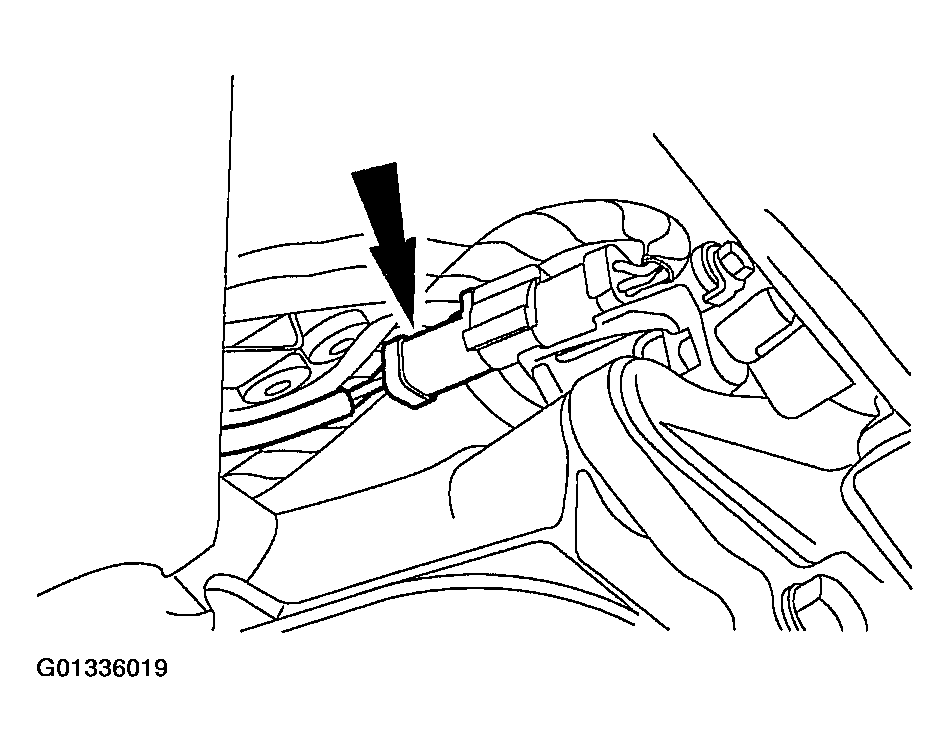

    Fig 16: Connecting Left Catalyst Monitor Connector
    G01336019Courtesy of FORD MOTOR CO.
  18. Lower the vehicle.
