Digital Transmission Range (TR) Sensor: Removal

  1. Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
  2. Raise the vehicle on a hoist. For additional information, refer to JACKING & HOISTING .
  3. Disconnect the manual lever shift control cable.

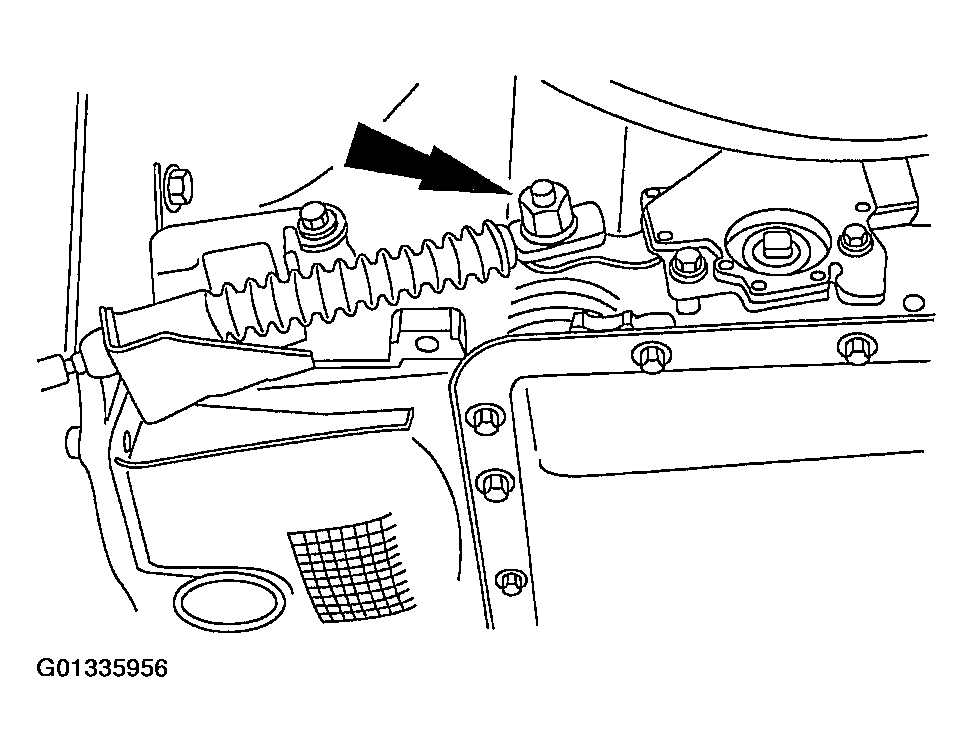

    Fig 1: Disconnecting Manual Lever Shift Control Cable
    G01335956Courtesy of FORD MOTOR CO.
  4. Disconnect the digital TR sensor connector.

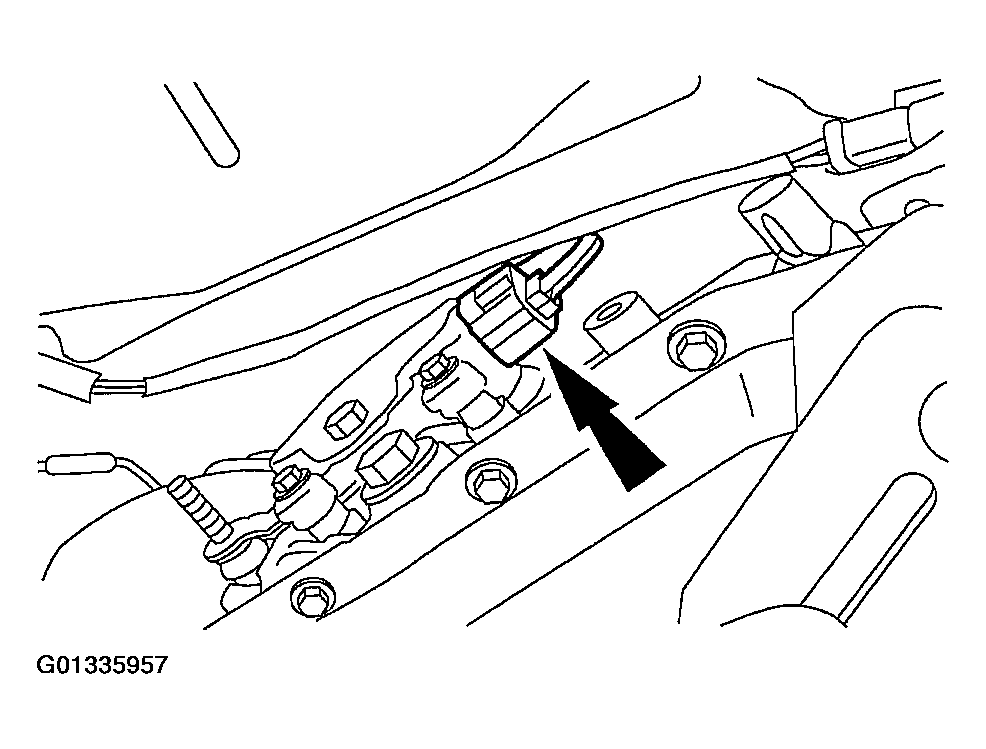

    Fig 2: Locating Digital TR Sensor Connector
    G01335957Courtesy of FORD MOTOR CO.
  5. Remove the bolts and remove the digital TR sensor.
    Fig 3: Locating Digital TR Sensor Bolts
    G01335958Courtesy of FORD MOTOR CO.
