Digital Transmission Range (TR) Sensor: Installation

  1. Install the digital TR sensor and loosely install the bolts.
    Fig 1: Installing Digital TR Sensor Bolts
    G01335959Courtesy of FORD MOTOR CO.
    2. NOTE: Manual shift lever shaft must be in the neutral position.
    Fig 2: Installing TR Sensor Alignment Gauge
    G01335960Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
  3. Tighten the bolts and remove the special tool.
    Fig 3: Tightening Digital TR Sensor Bolts
    G01335961Courtesy of FORD MOTOR CO.
  4. With the manual lever in overdrive, connect the shift lever control cable.

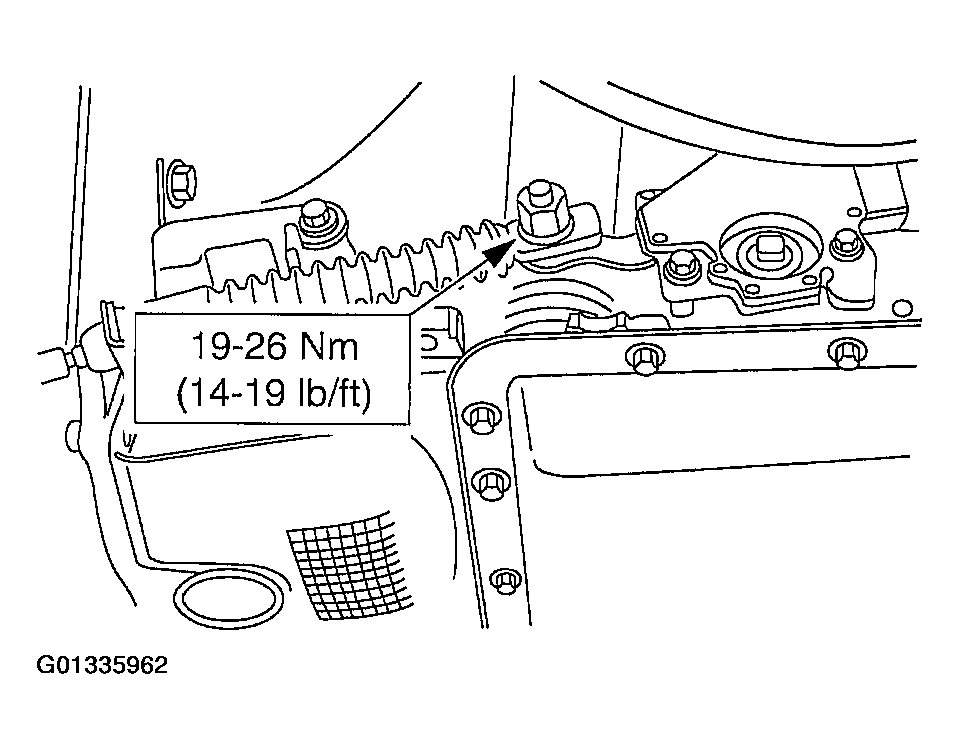

    Fig 4: Connecting Manual Lever Shift Control Cable
    G01335962Courtesy of FORD MOTOR CO.
  5. Connect the digital TR sensor electrical connector.

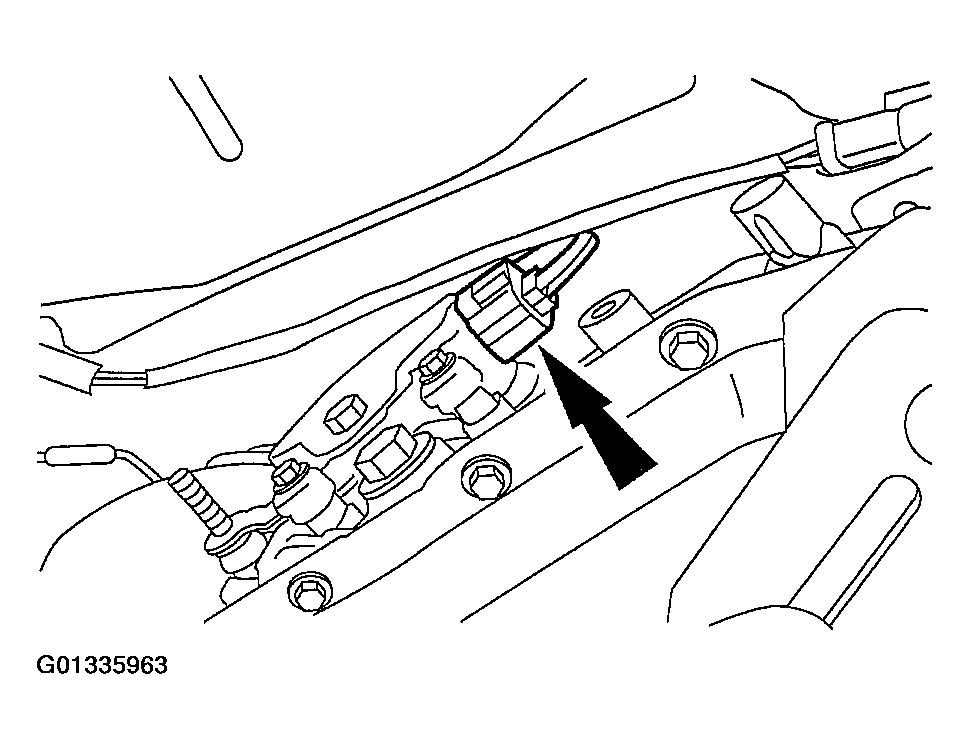

    Fig 5: Connecting Digital TR Sensor Connector
    G01335963Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Connect the battery ground cable.
