Torque Converter End Play Check

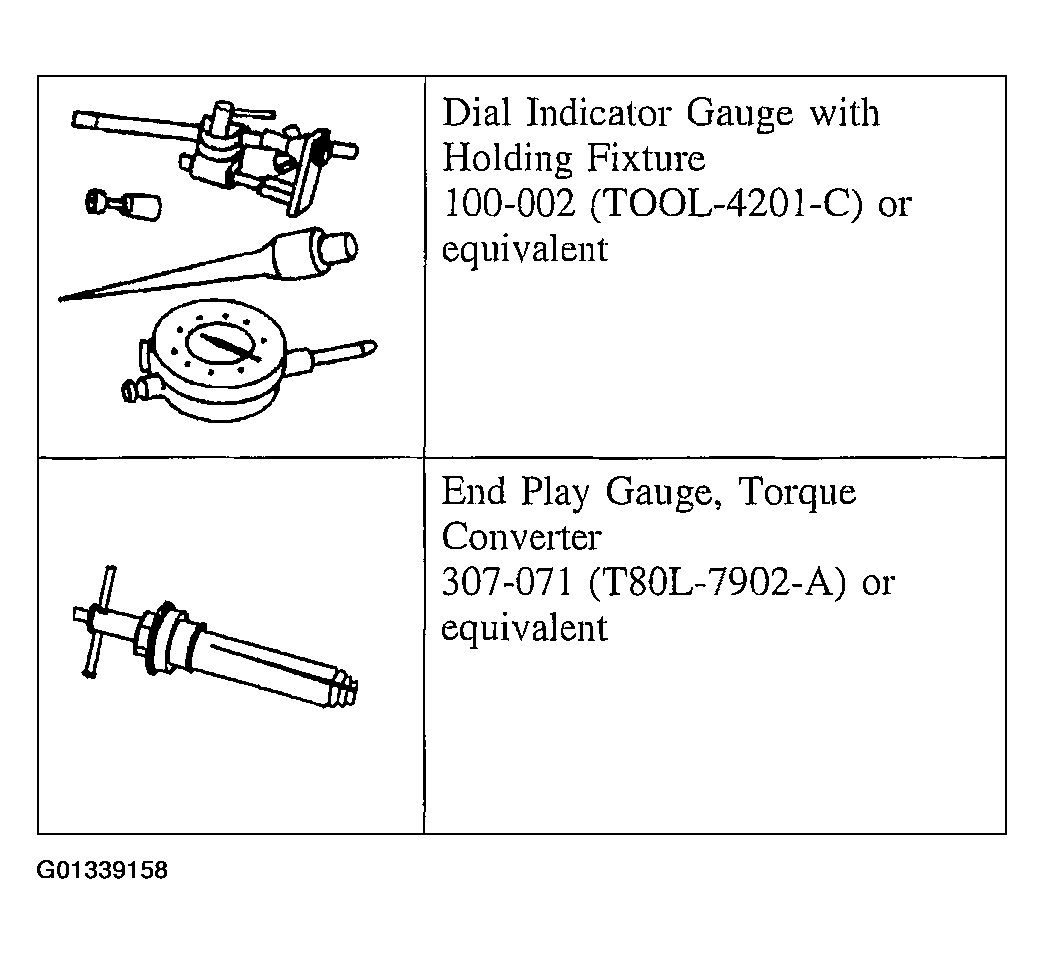

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Install the special tool into the torque converter pump drive.
- Tighten the inner post until the tool is securely locked.

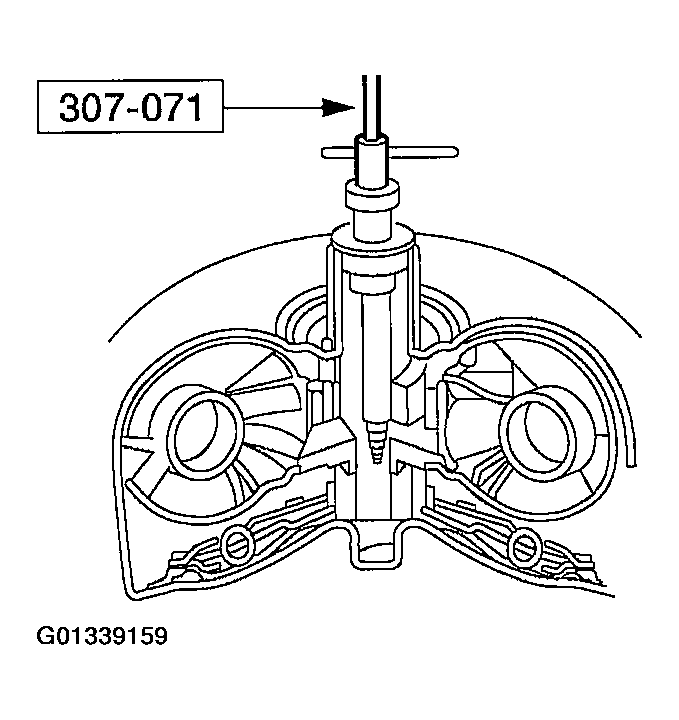

Fig 2: Installing Torque Converter End Play Gauge
Courtesy of FORD MOTOR CO.
Install the special tool on the converter pump drive hub and zero the dial indicator.

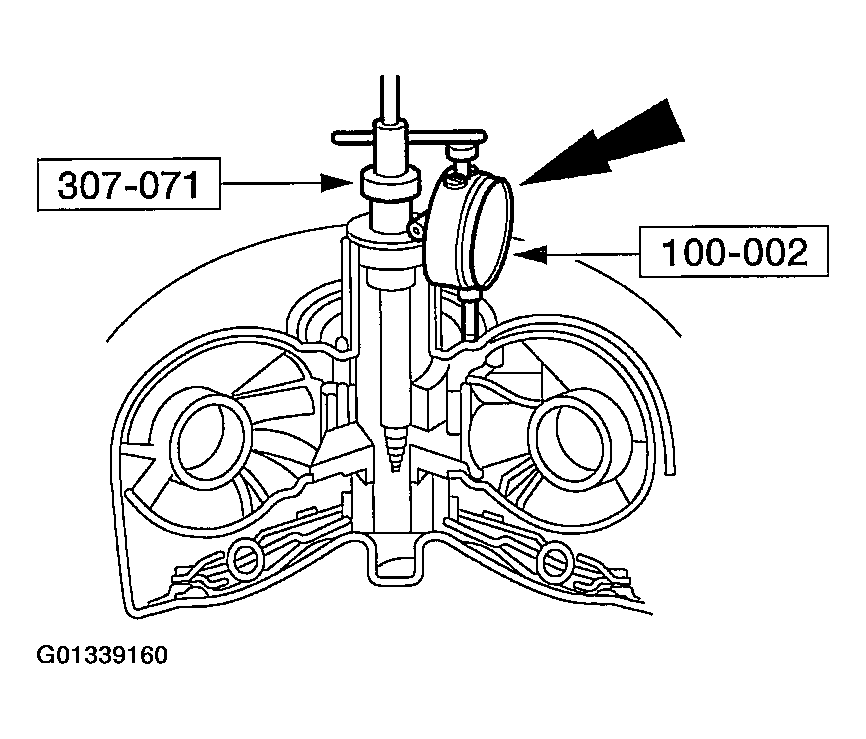

Fig 3: Installing Dial Indicator
Courtesy of FORD MOTOR CO.

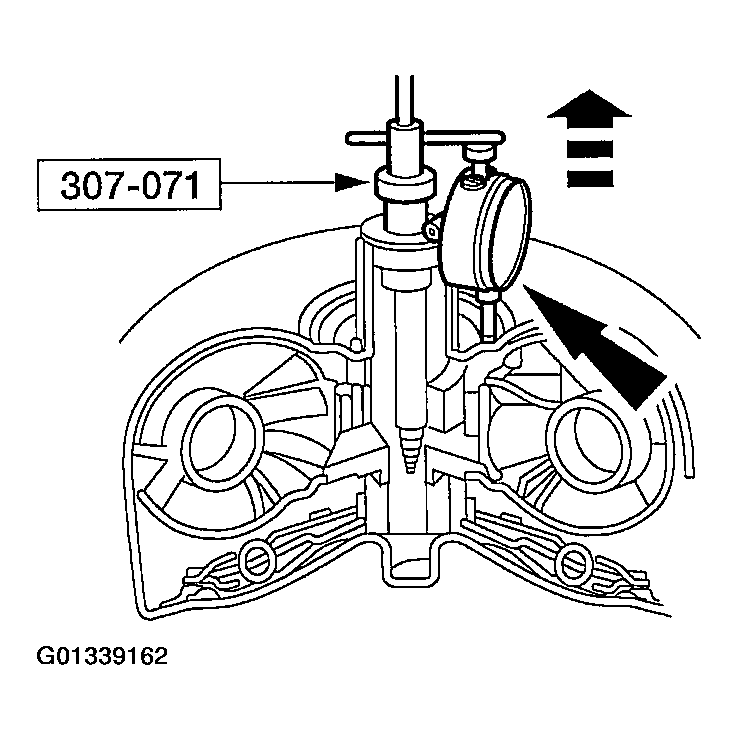

Lift up on the special tool and note the dial indicator reading.
- If the reading exceeds end play limits, install a new or remanufactured torque converter.
Fig 4: Torque Converter End Play
Courtesy of FORD MOTOR CO.

Fig 5: Checking Torque Converter End Play
Courtesy of FORD MOTOR CO.
Remove the special tools.
