Hydraulic System: Notes

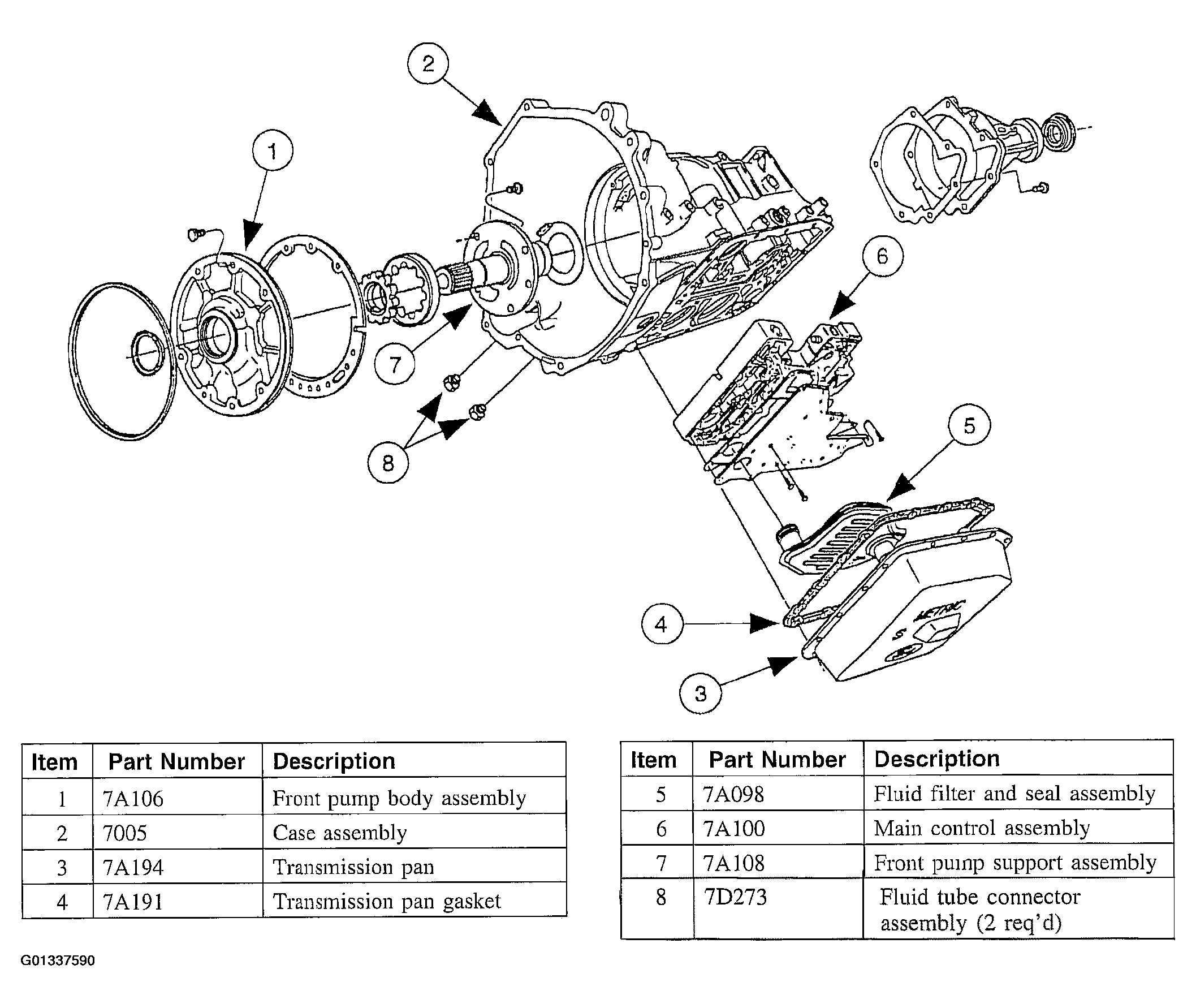

Fig 1: Identifying Hydraulic System Components
G01337590Courtesy of FORD MOTOR CO.
