Main Control

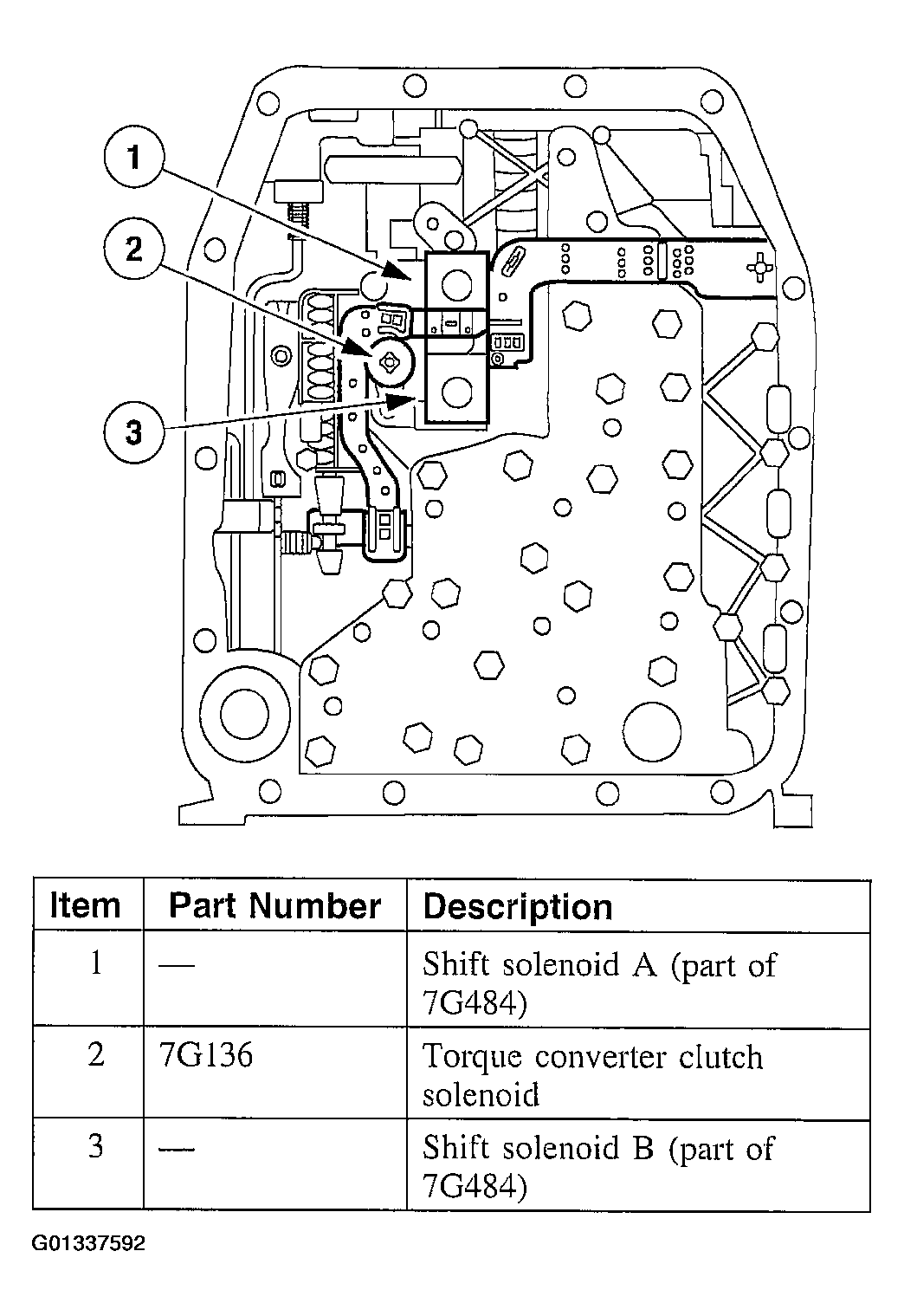

Fig 1: Identifying Main Control Valve Body Solenoids

Courtesy of FORD MOTOR CO.

The main control valve body houses three electronic solenoids:

• Two shift solenoids
• One torque converter clutch solenoid (TCC solenoid)
