Disassembled Views

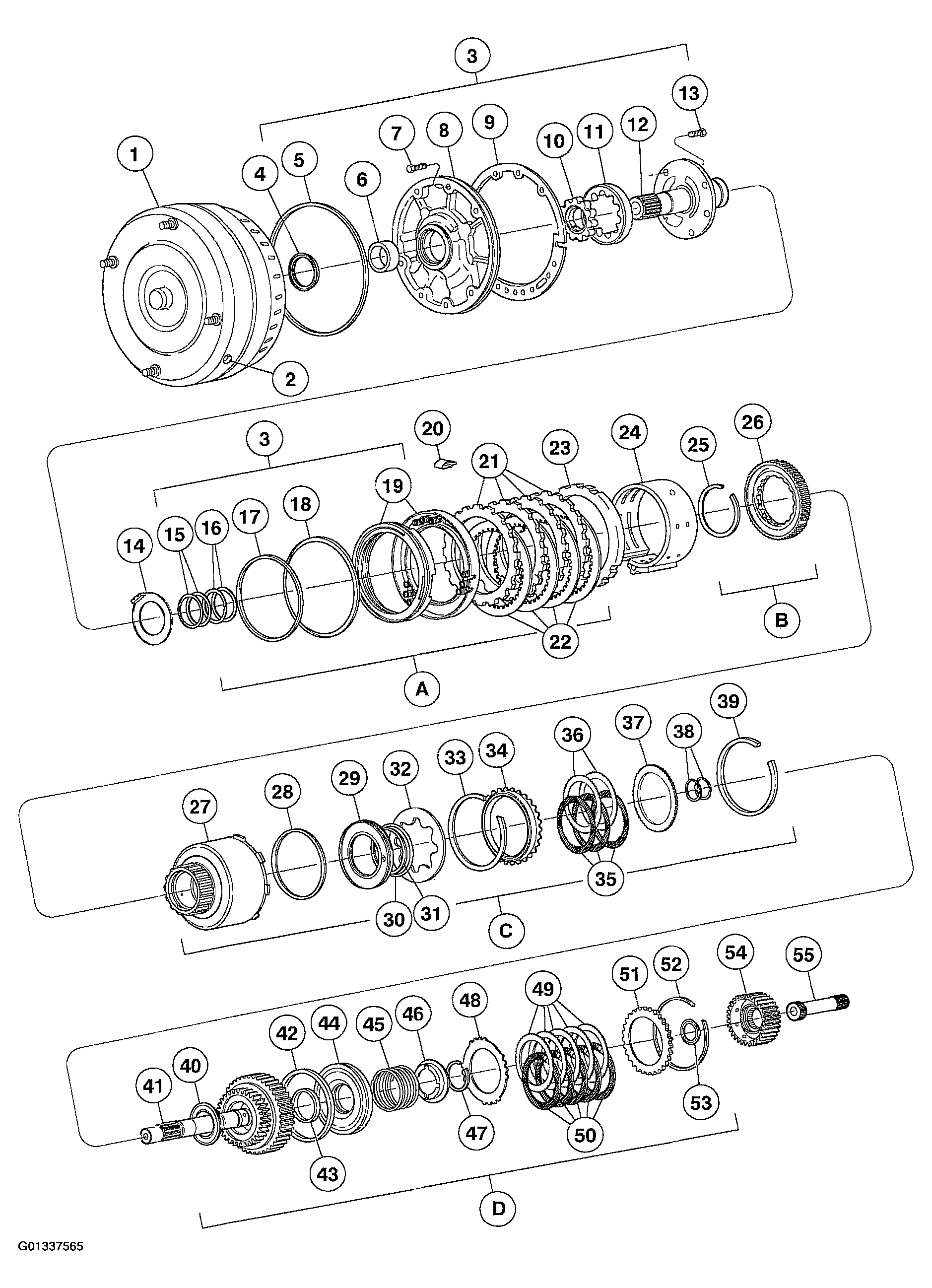

Fig 1: 4R70W Automatic Transmission - Disassembled View (1 Of 2)
G01337565Courtesy of FORD MOTOR CO.

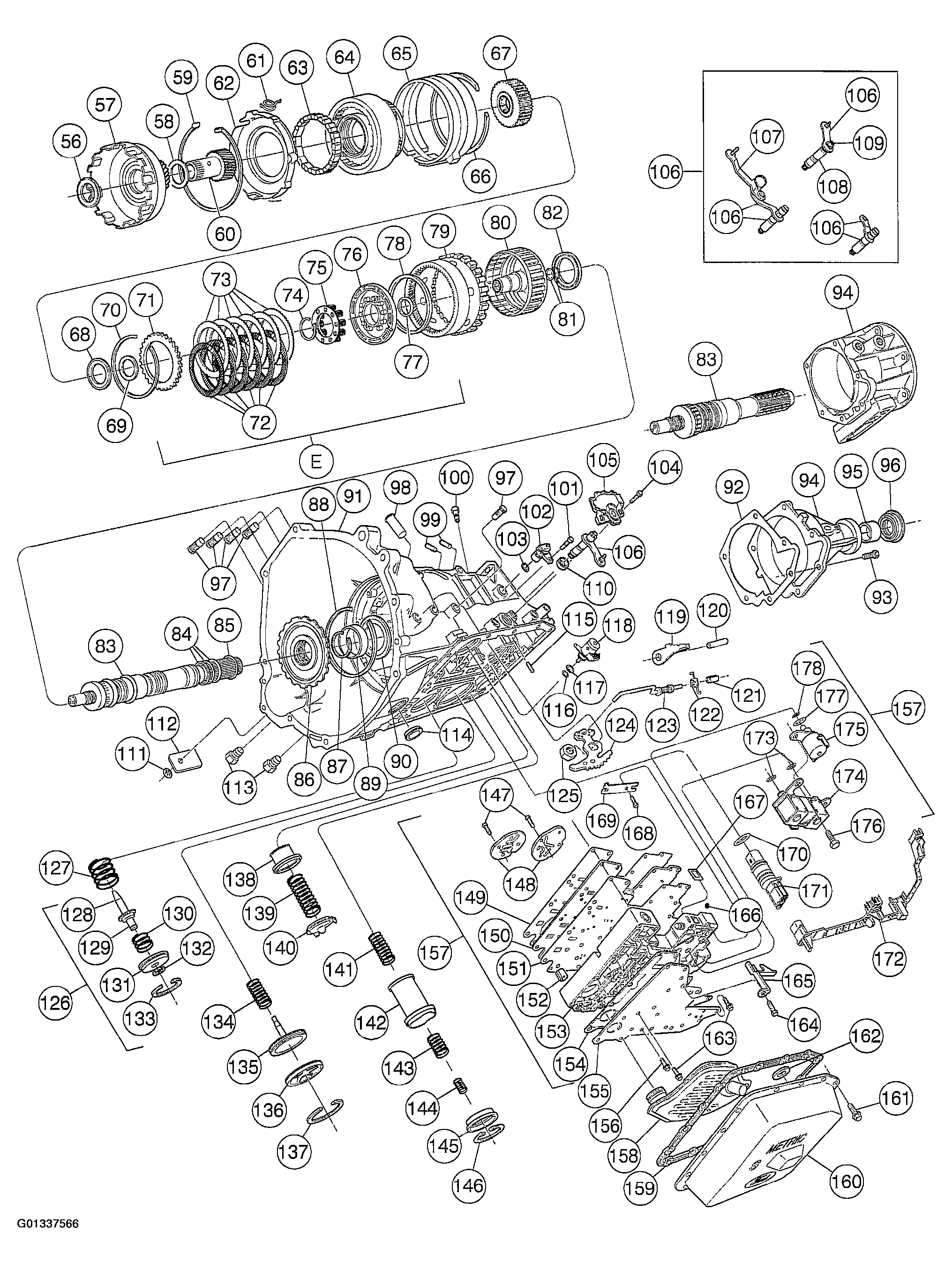

Fig 2: 4R70W Automatic Transmission - Disassembled View (2 Of 2)
G01337566Courtesy of FORD MOTOR CO.

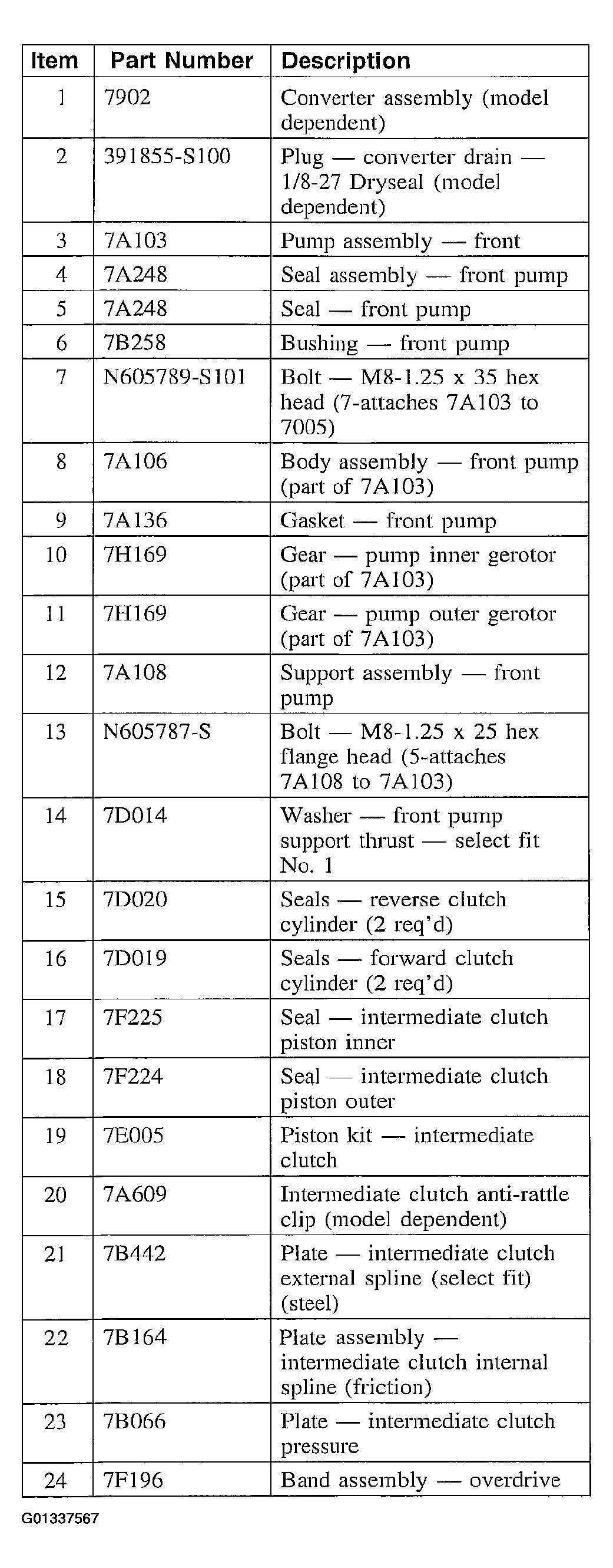

Fig 3: 4R70W Automatic Transmission - Disassembled View Legend (Items 1-24)
G01337567Courtesy of FORD MOTOR CO.

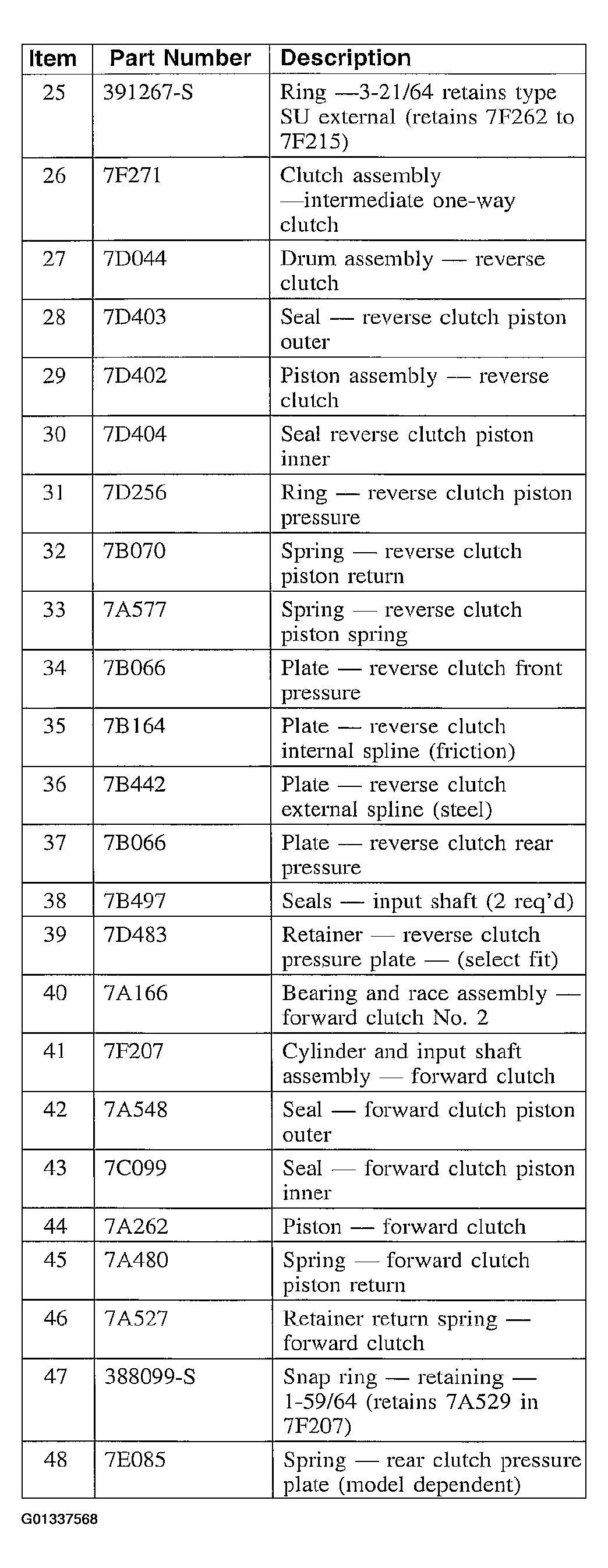

Fig 4: 4R70W Automatic Transmission - Disassembled View Legend (Items 25-48)
G01337568Courtesy of FORD MOTOR CO.

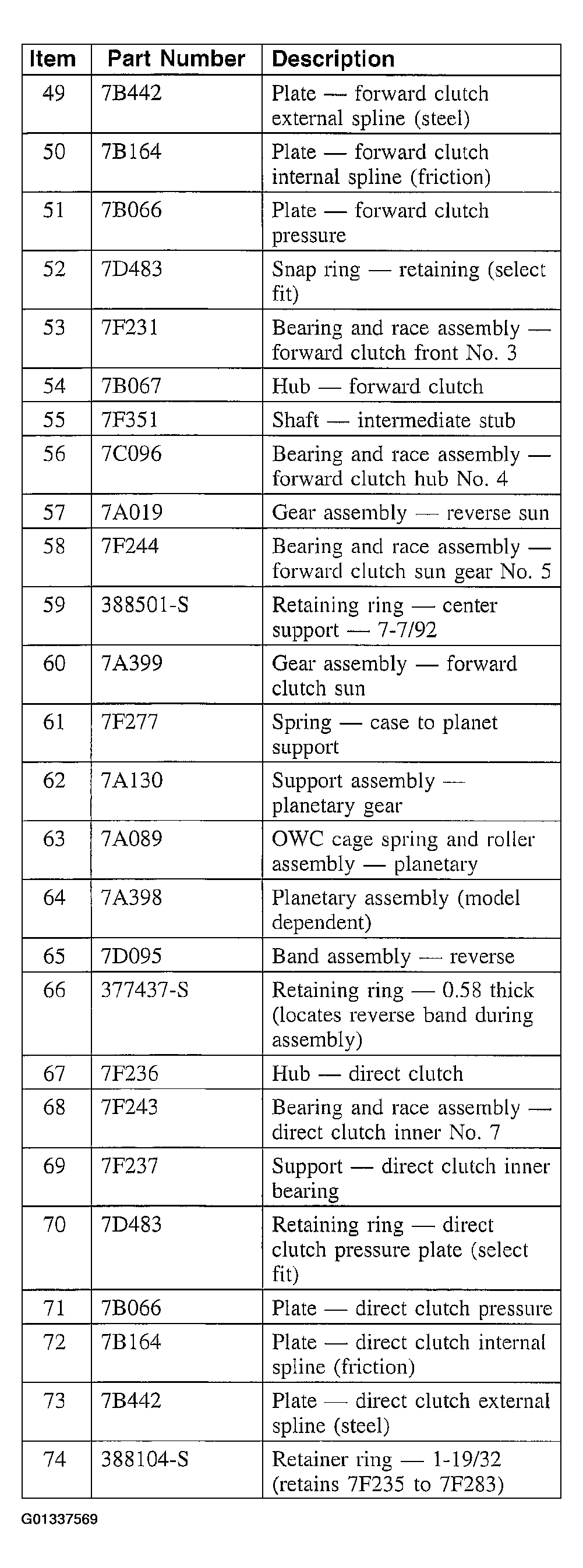

Fig 5: 4R70W Automatic Transmission - Disassembled View Legend (Items 49-74)
G01337569Courtesy of FORD MOTOR CO.

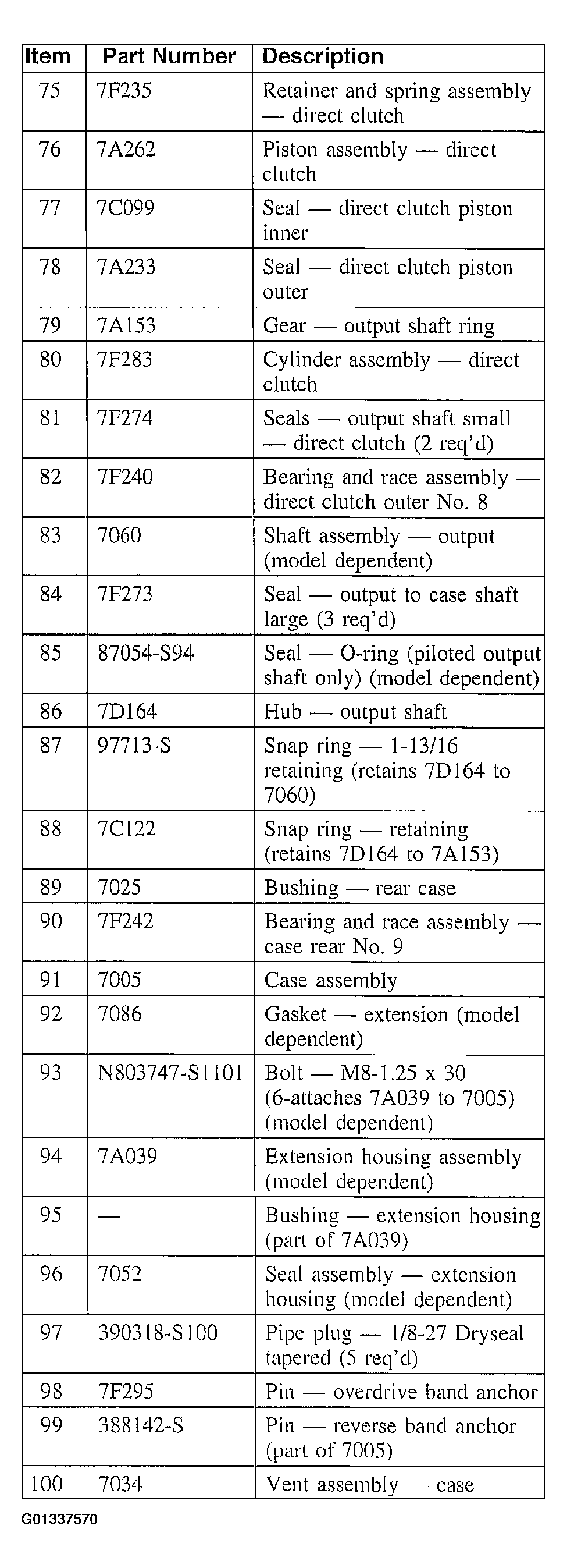

Fig 6: 4R70W Automatic Transmission - Disassembled View Legend (Items 75-100)
G01337570Courtesy of FORD MOTOR CO.

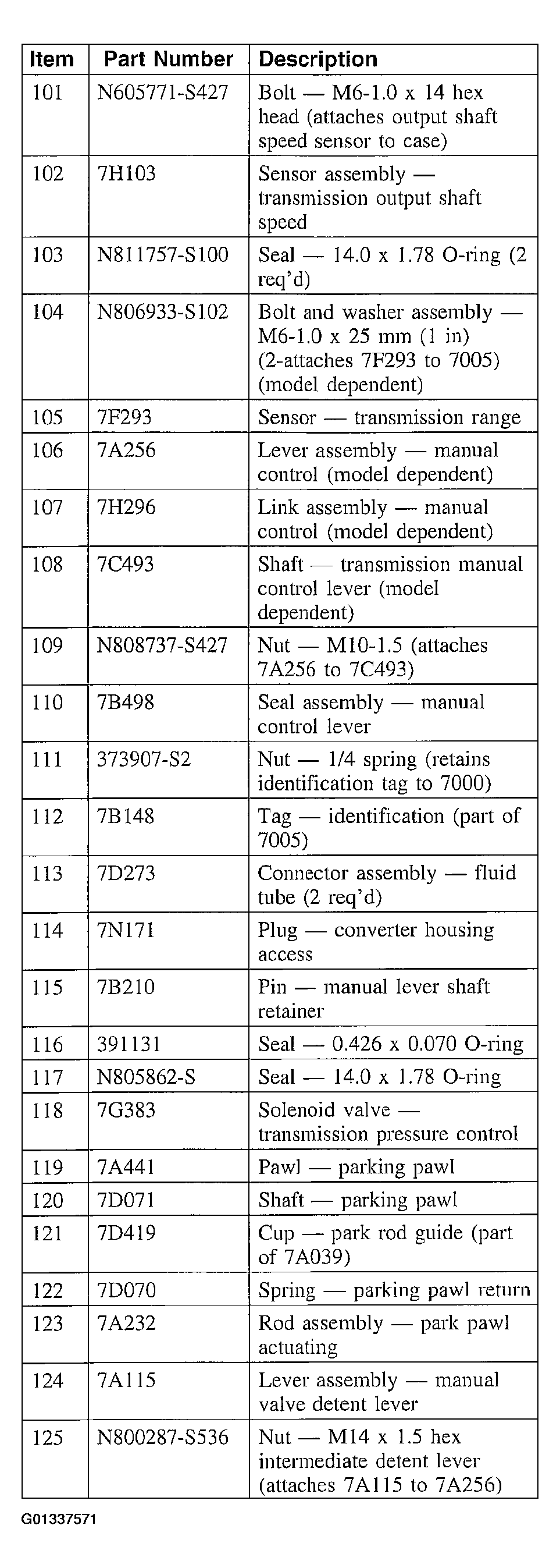

Fig 7: 4R70W Automatic Transmission - Disassembled View Legend (Items 101-125)
G01337571Courtesy of FORD MOTOR CO.

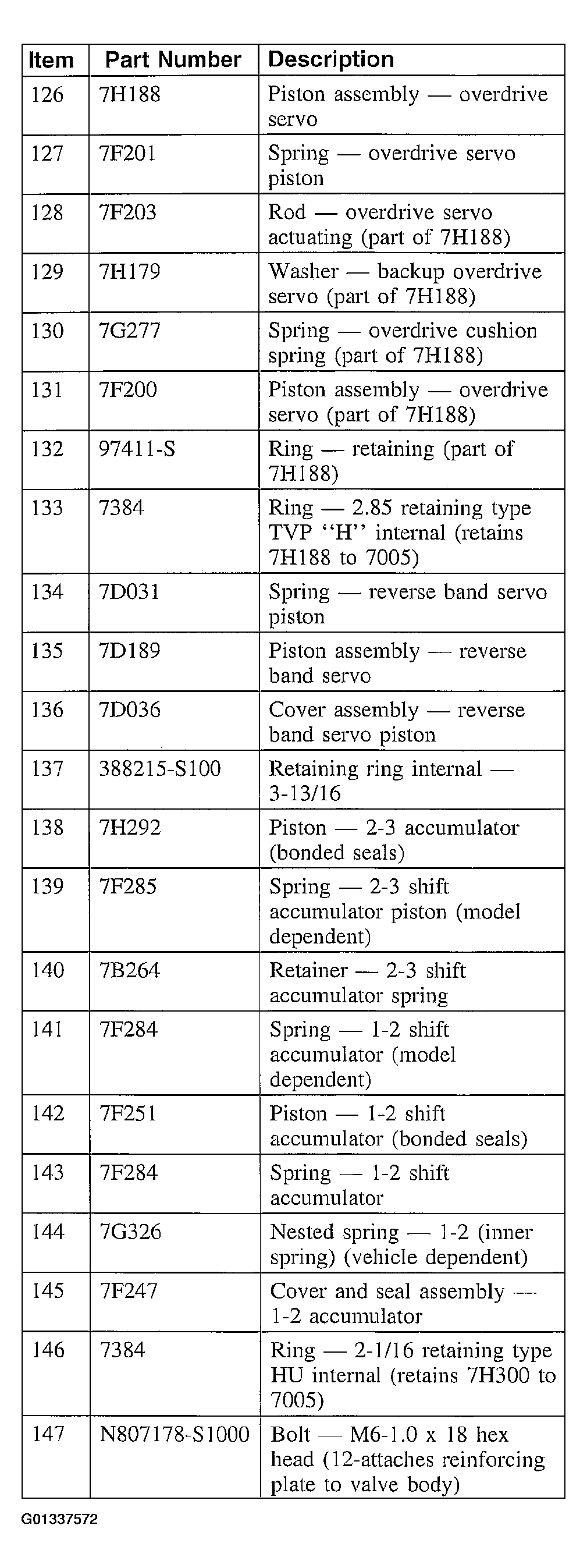

Fig 8: 4R70W Automatic Transmission - Disassembled View Legend (Items 126-147)
G01337572Courtesy of FORD MOTOR CO.

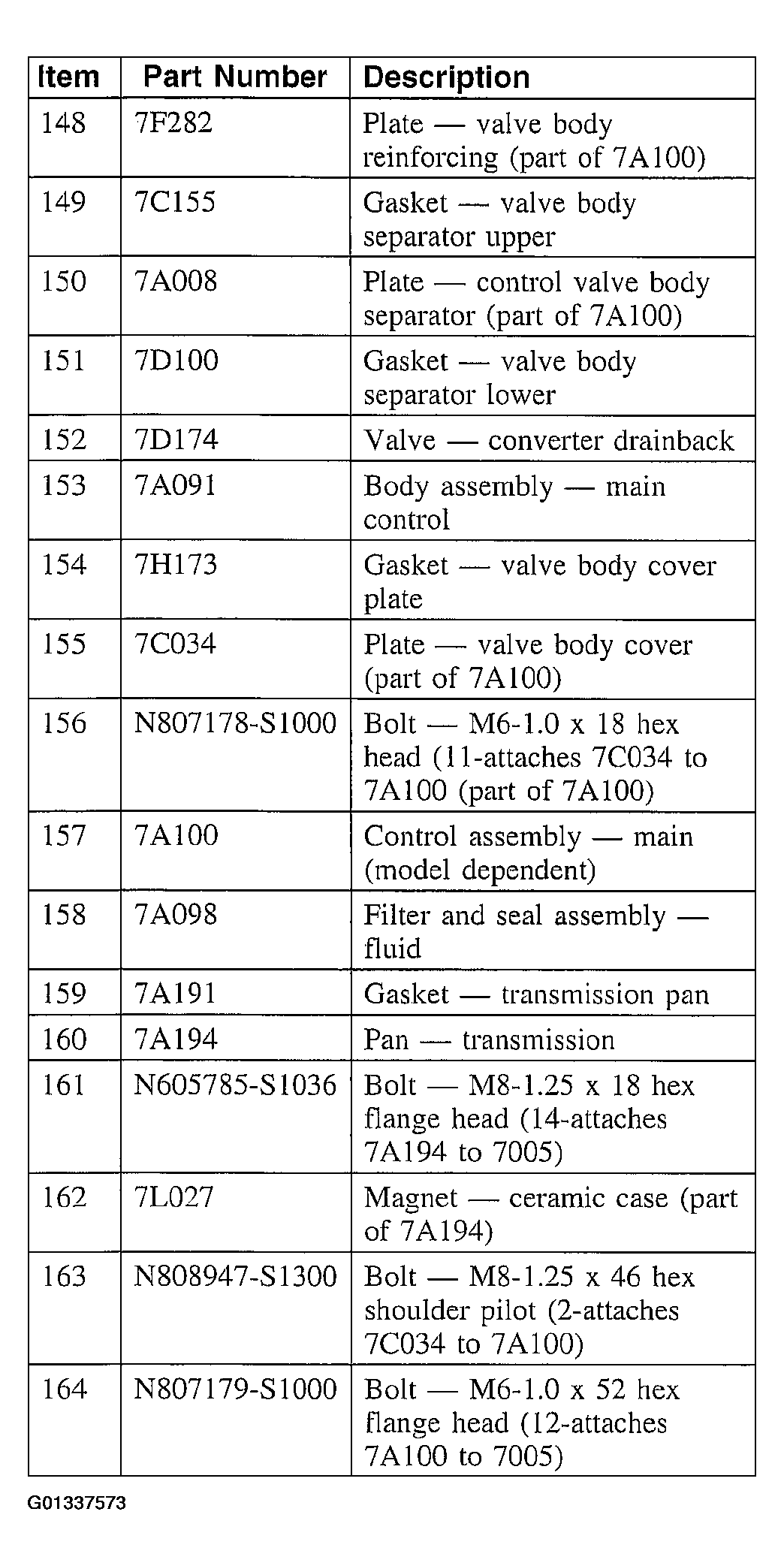

Fig 9: 4R70W Automatic Transmission - Disassembled View Legend (Items 148-164)
G01337573Courtesy of FORD MOTOR CO.

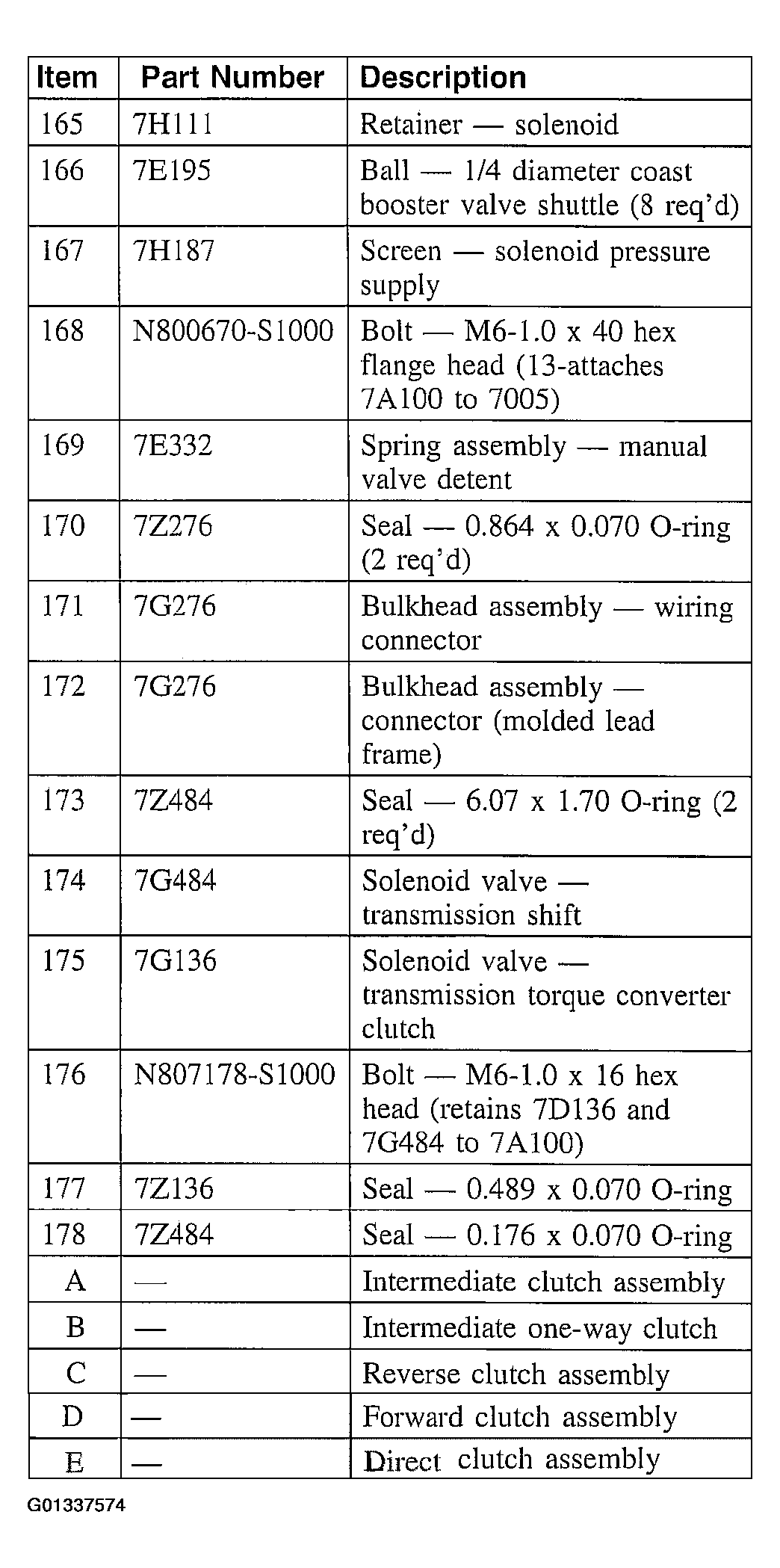

Fig 10: 4R70W Automatic Transmission - Disassembled View Legend (Items 165-178 & Items A-E)
G01337574Courtesy of FORD MOTOR CO.
