LEMON Manuals
: Even more car manuals for everyone
Home
>>
Lincoln
>>
2003
>>
Town Car Protection Series
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission External Controls
>>
Diagnosis And Testing
>>
External Controls
>>
Symptom Chart
Symptom Chart

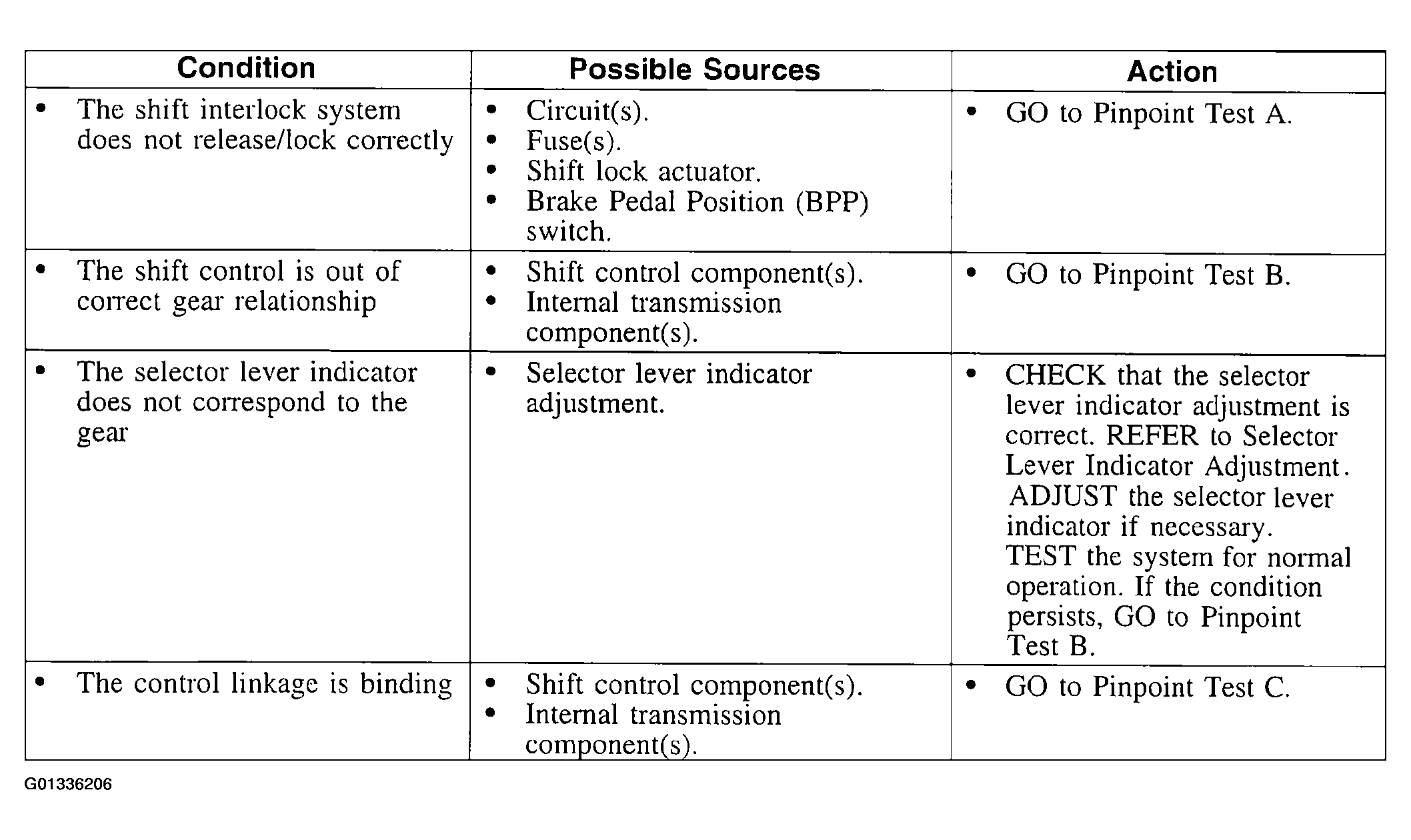

Fig 1: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

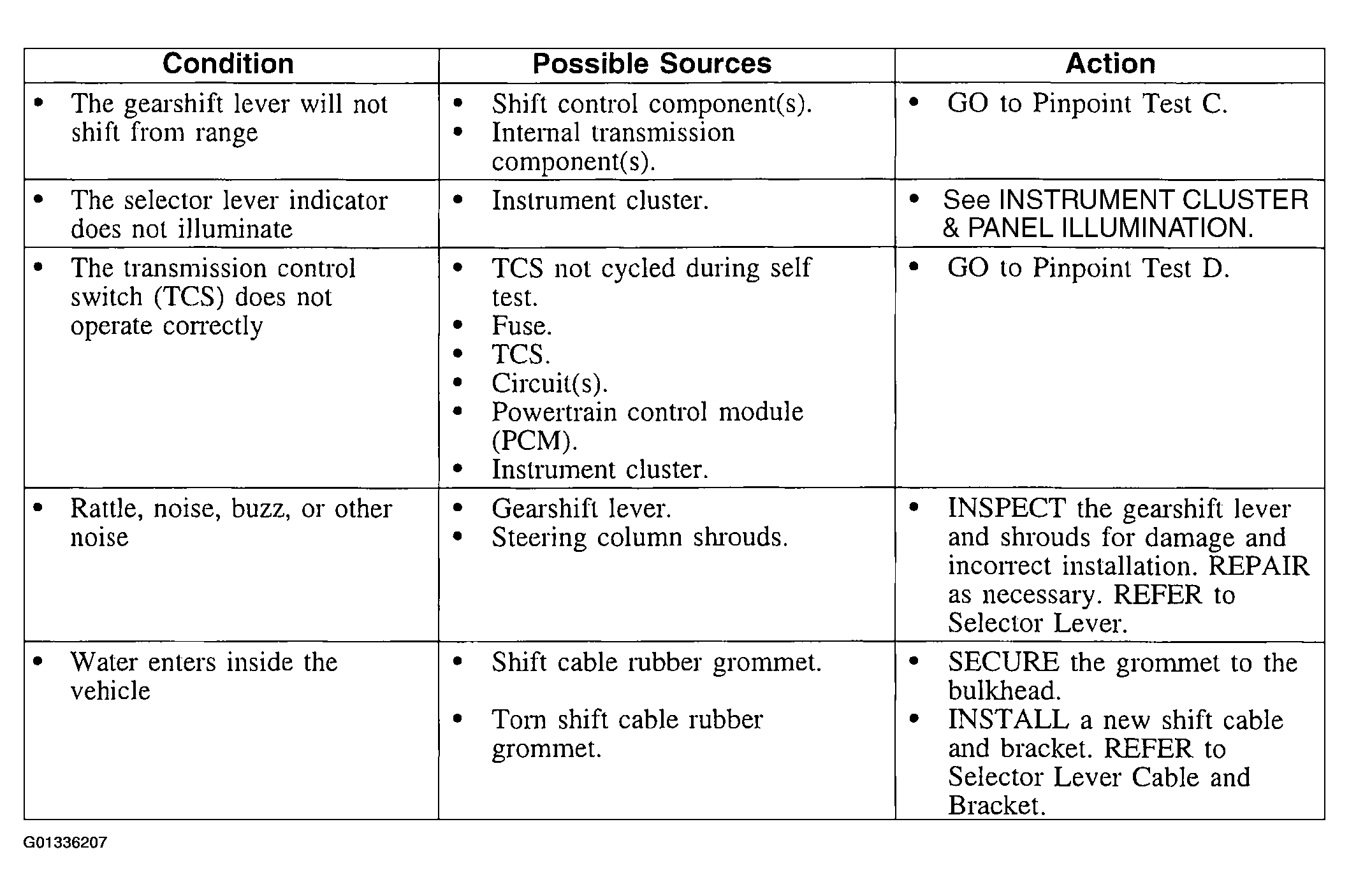

Fig 2: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
