Pinpoint Test D

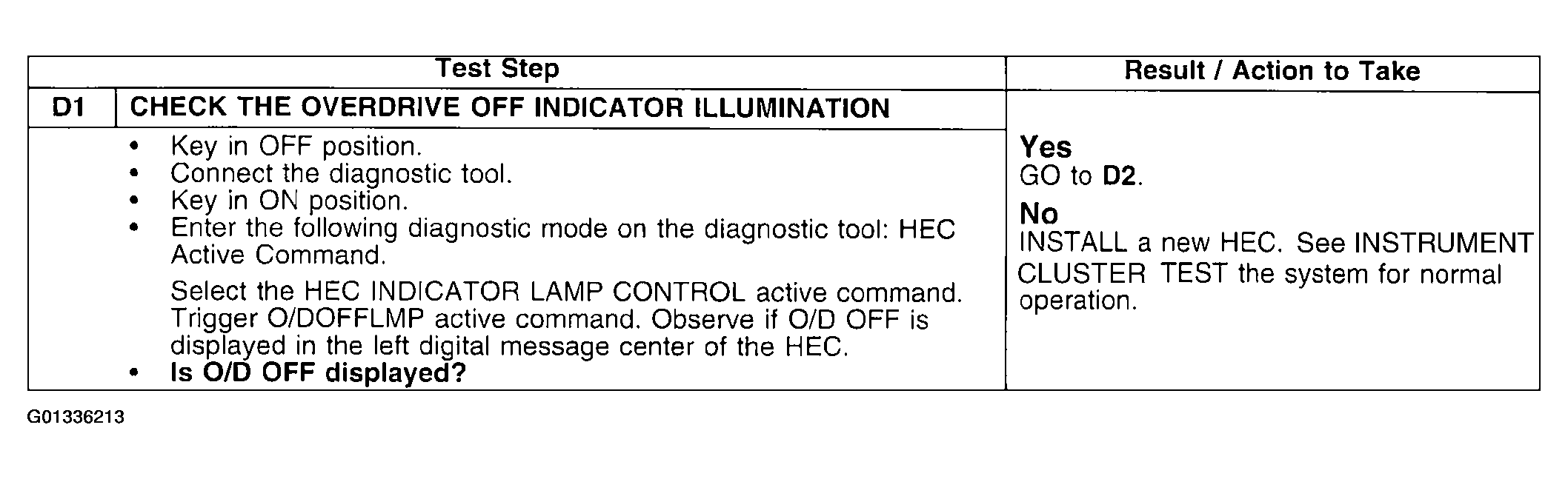

Fig 1: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (1 Of 3)
G01336213Courtesy of FORD MOTOR CO.

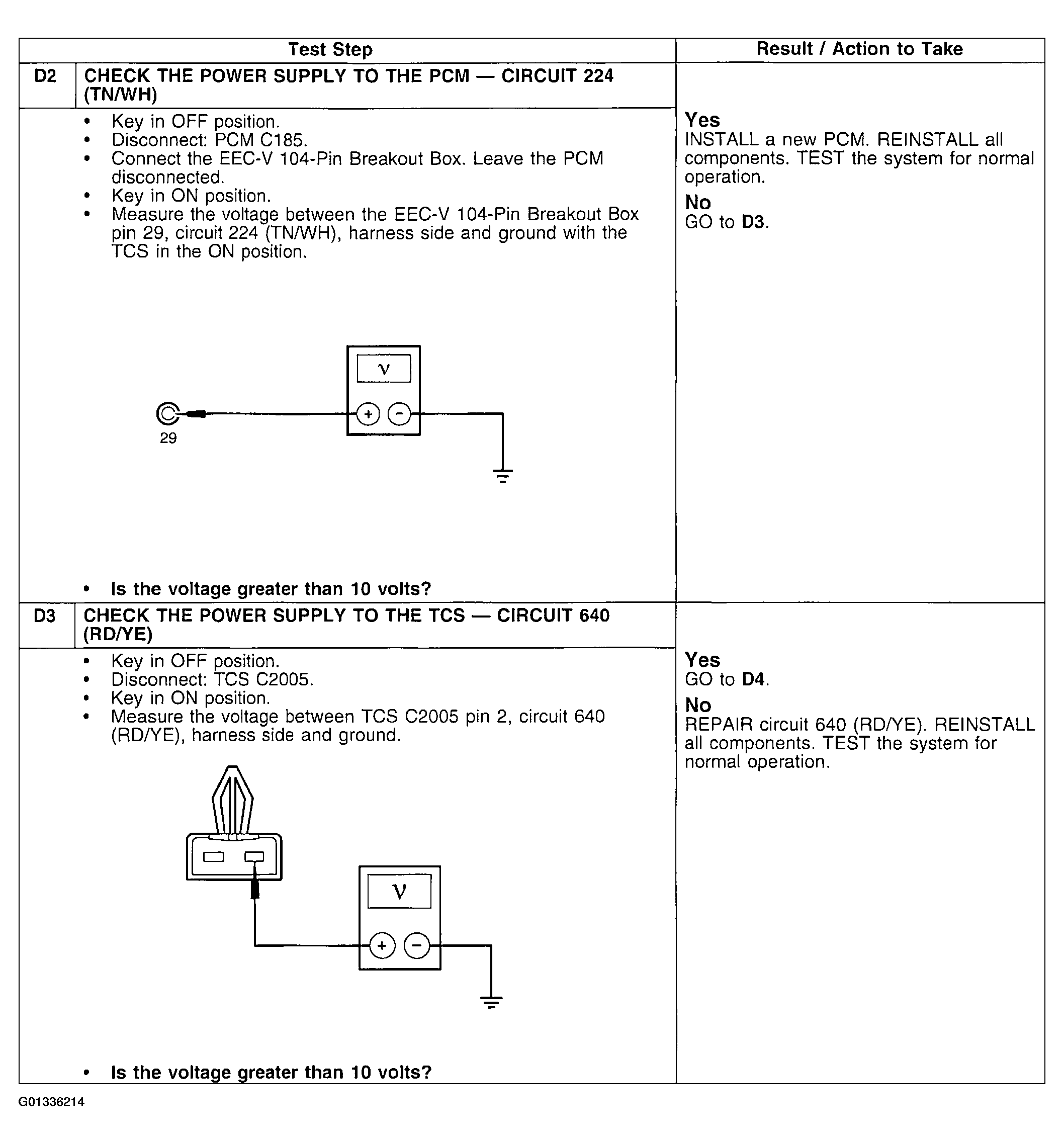

Fig 2: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (2 Of 3)
G01336214Courtesy of FORD MOTOR CO.

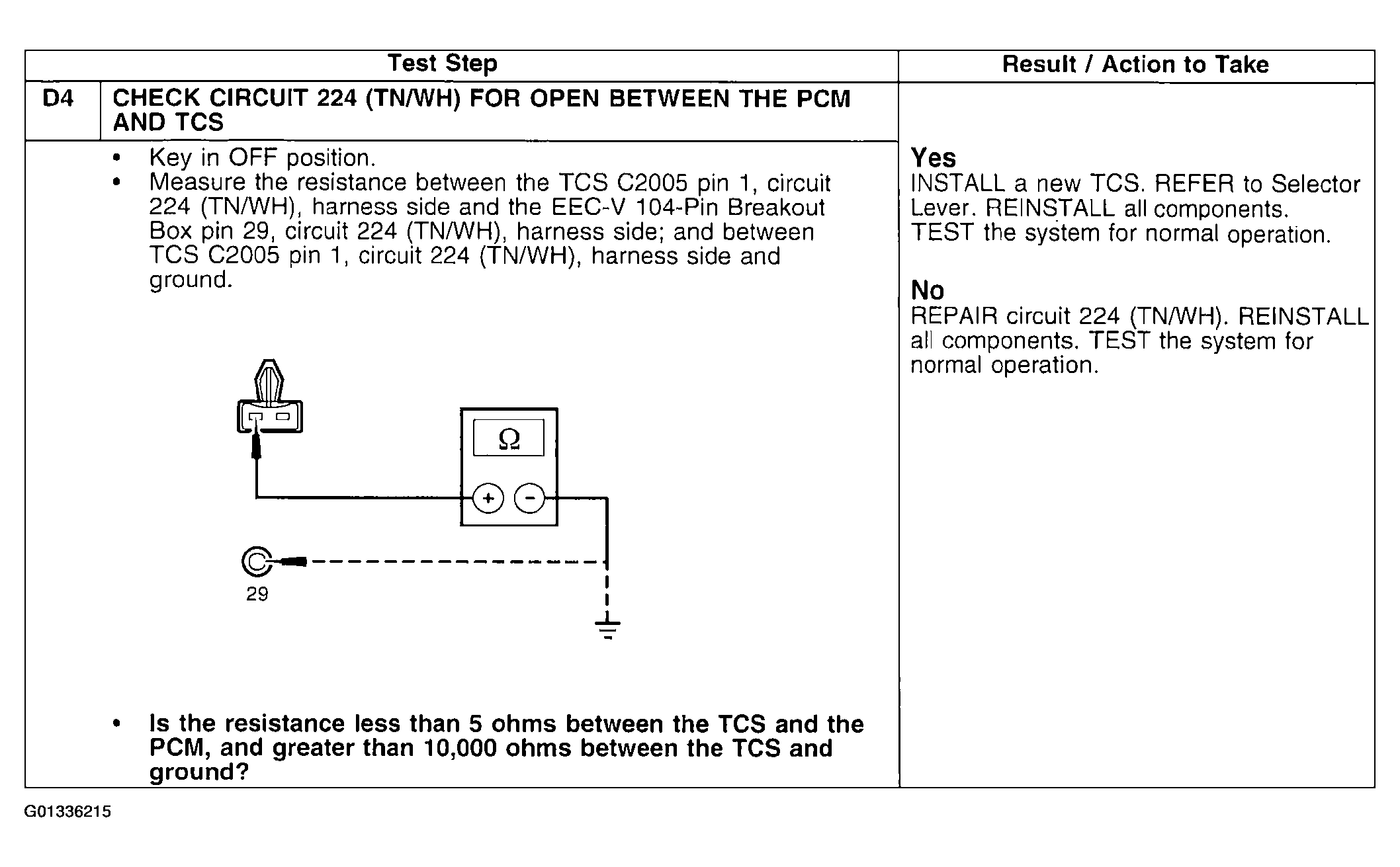

Fig 3: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (3 Of 3)
G01336215Courtesy of FORD MOTOR CO.
