Removal & Installation
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS
. RCM is located on center tunnel, under instrument panel. Disable air bag system. See DISABLING SYSTEM
under DISABLING & ACTIVATING AIR BAG SYSTEM.

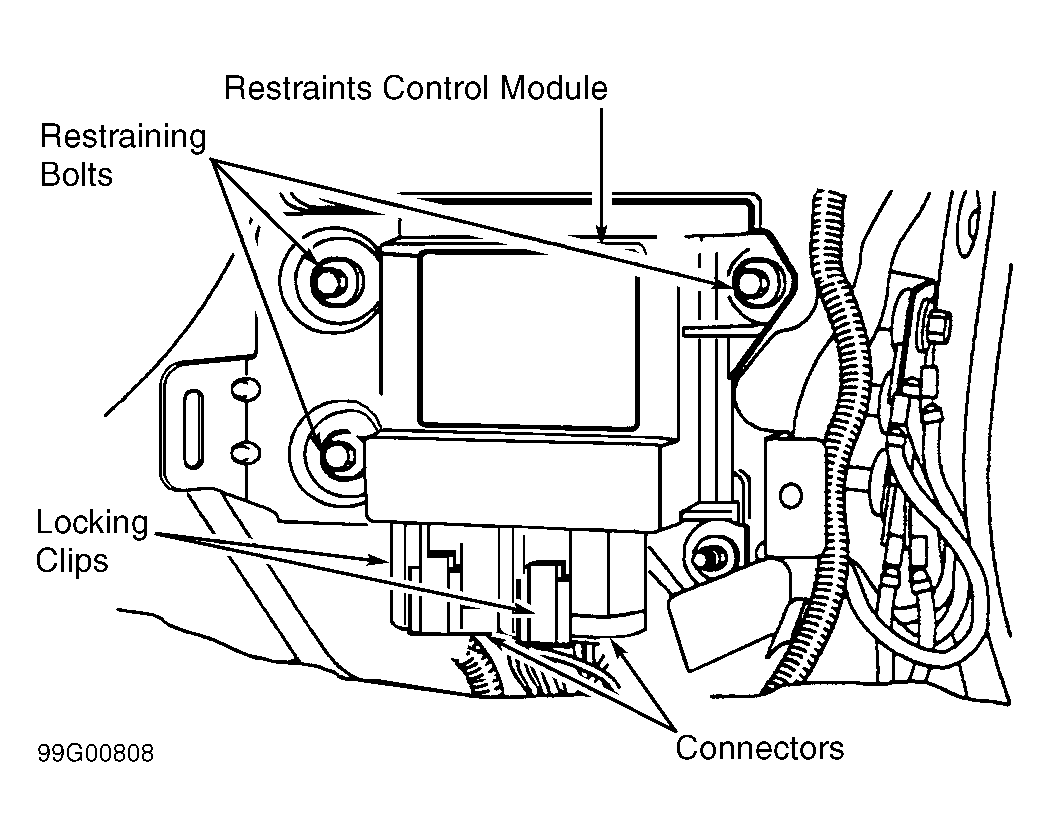

- Release retaining tabs and remove ashtray. Remove carpet patch on side of center tunnel. Disconnect RCM electrical connector locking clip and disconnect connectors. See Fig 1
. Remove RCM mounting bolts and RCM.
CAUTION:
Improper air bag system operation is possible. RCM mounting bolts that are not properly tightened may result in air bag system malfunction. Ensure RCM mounting bolts are tightened to specification. See TORQUE SPECIFICATIONS
.
- To install, reverse removal procedure. Tighten RCM mounting bolts to specification. See TORQUE SPECIFICATIONS
. Connect negative battery cable. With air bag simulators installed at all deployable devices, perform system operation check. See SYSTEM OPERATION CHECK
. Activate air bag system. See ACTIVATING SYSTEM
under DISABLING & ACTIVATING AIR BAG SYSTEM.
Courtesy of FORD MOTOR CO.
