Ignition switch (3C529)

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

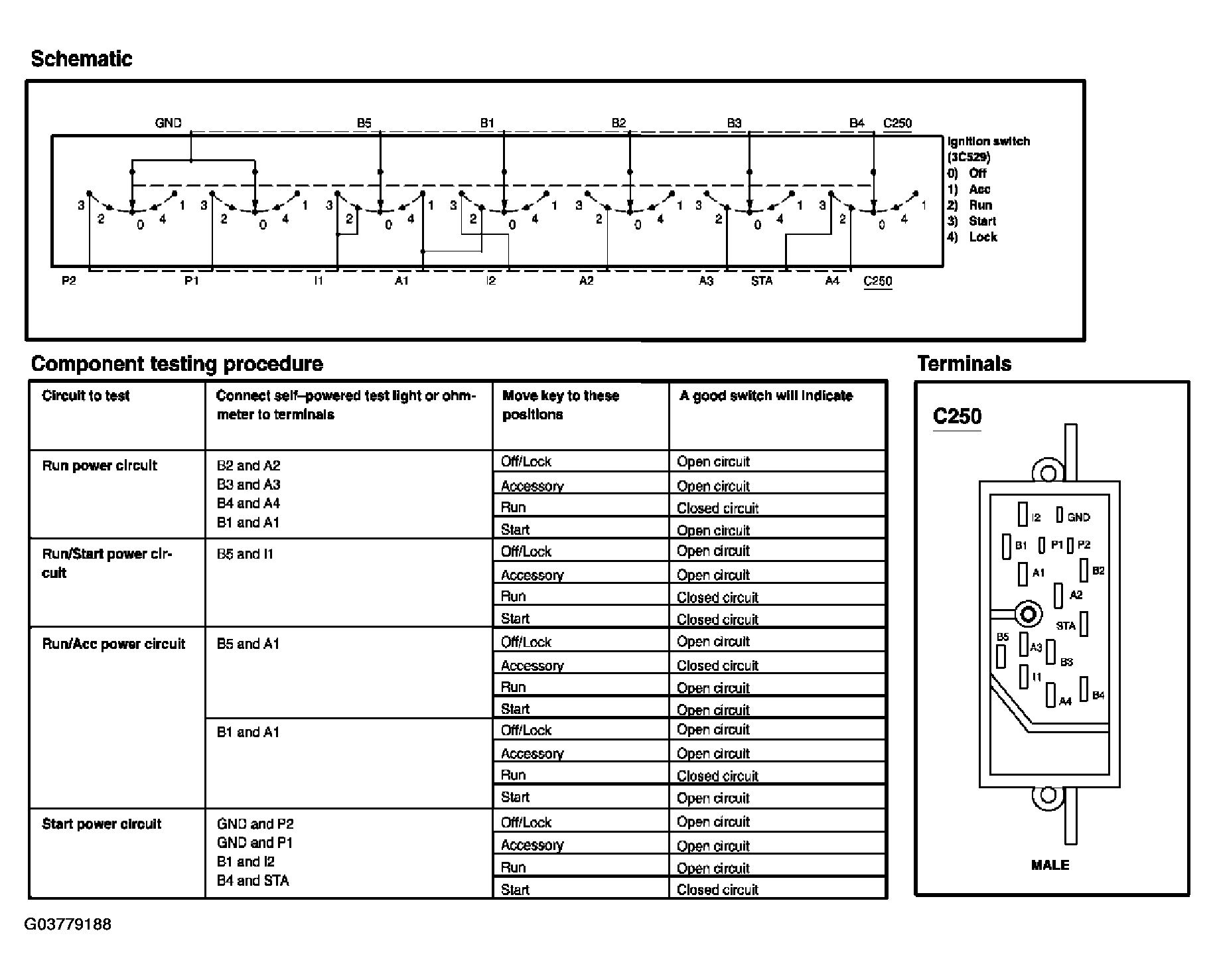

Fig 1: Testing Ignition Switch (3C529)
G03779188Courtesy of FORD MOTOR CO.
