Luggage Compartment Lid Alignment

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the luggage compartment lid hinge covers.

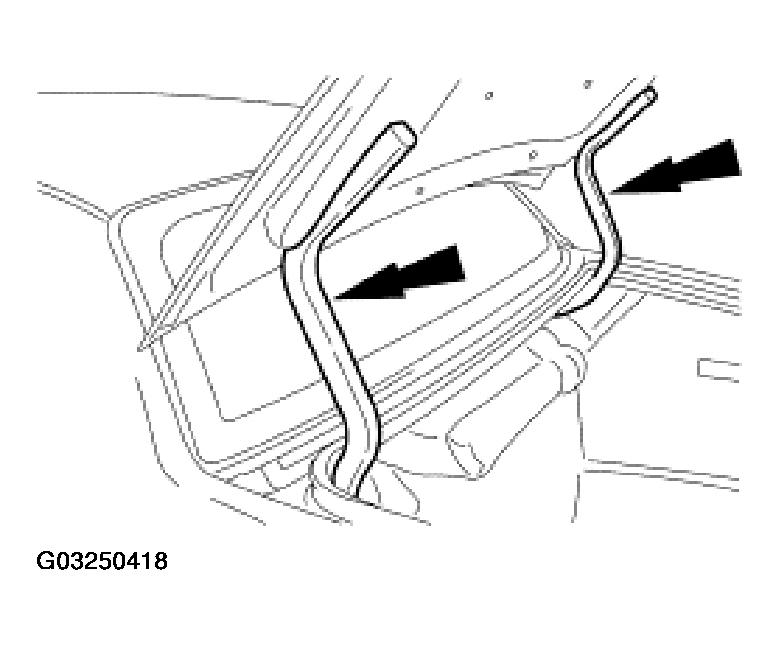

Fig 1: Removing Luggage Compartment Lid Hinge Covers
Courtesy of FORD MOTOR CO.
Loosen the luggage compartment lid bolts.

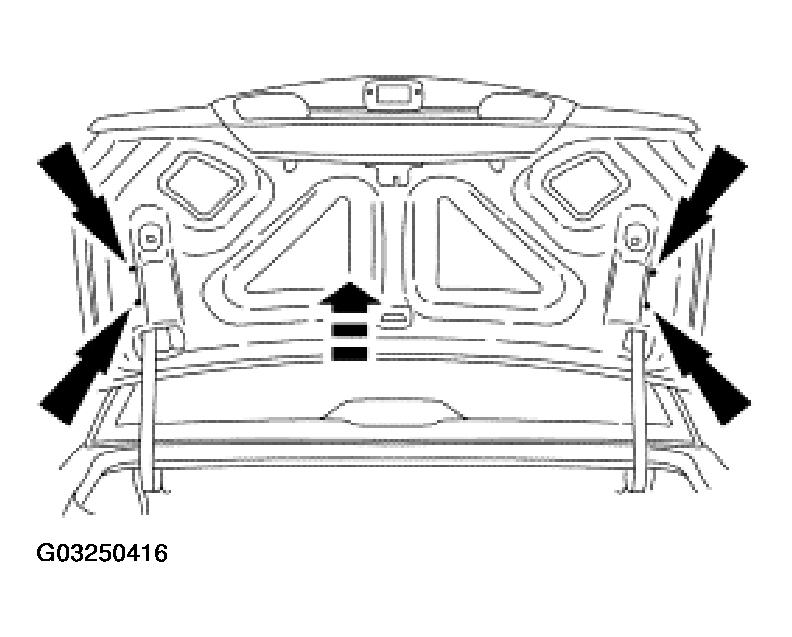

Fig 2: Loosening Luggage Compartment Lid Bolts
Courtesy of FORD MOTOR CO.
Adjust the luggage compartment lid as necessary.
Tighten the luggage compartment hinge bolts.

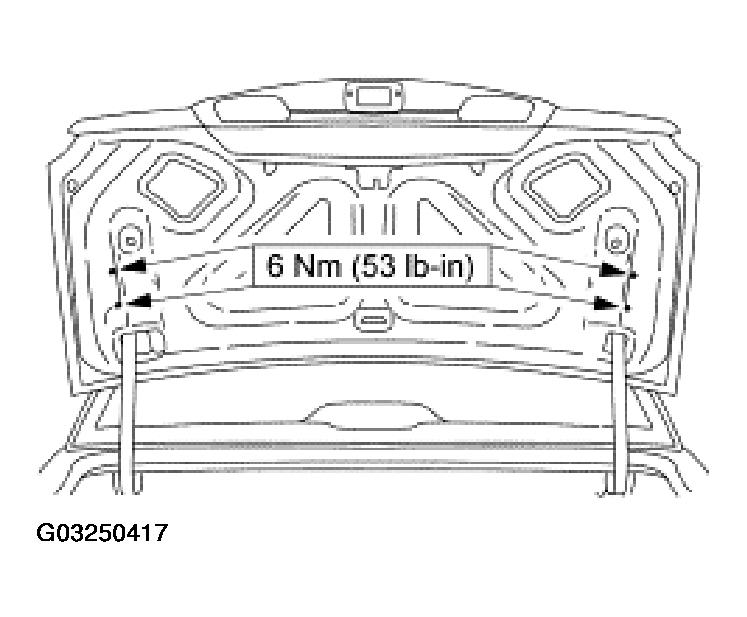

Fig 3: Tightening Luggage Compartment Hinge Bolts
Courtesy of FORD MOTOR CO.
Install the luggage compartment lid hinge covers.

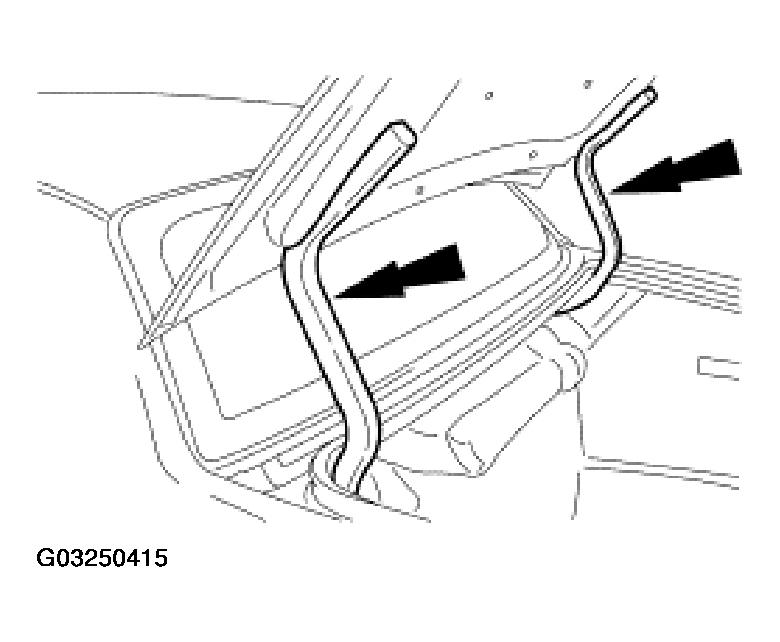

Fig 4: Installing Luggage Compartment Lid Hinge Covers
Courtesy of FORD MOTOR CO.
