Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  2. Remove the screw and the speed control switch.
    • Disconnect the electrical connector.

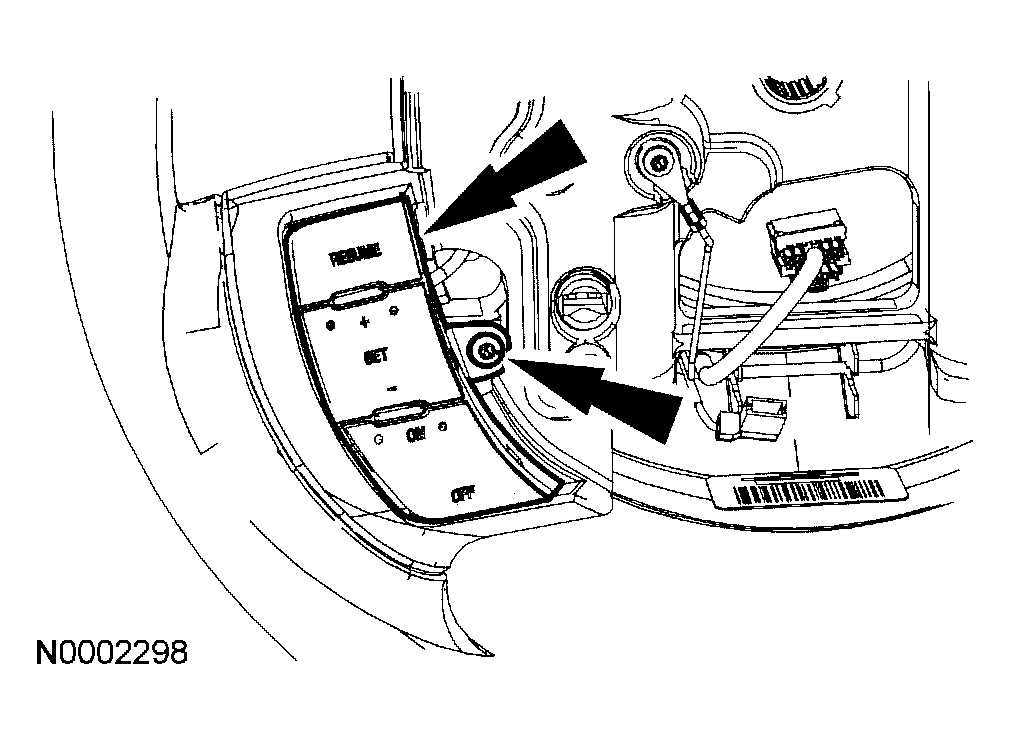

    Fig 1: Removing Speed Control Switch
    G03883138Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
