Seat adjust switch, passenger side front: Schematic

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

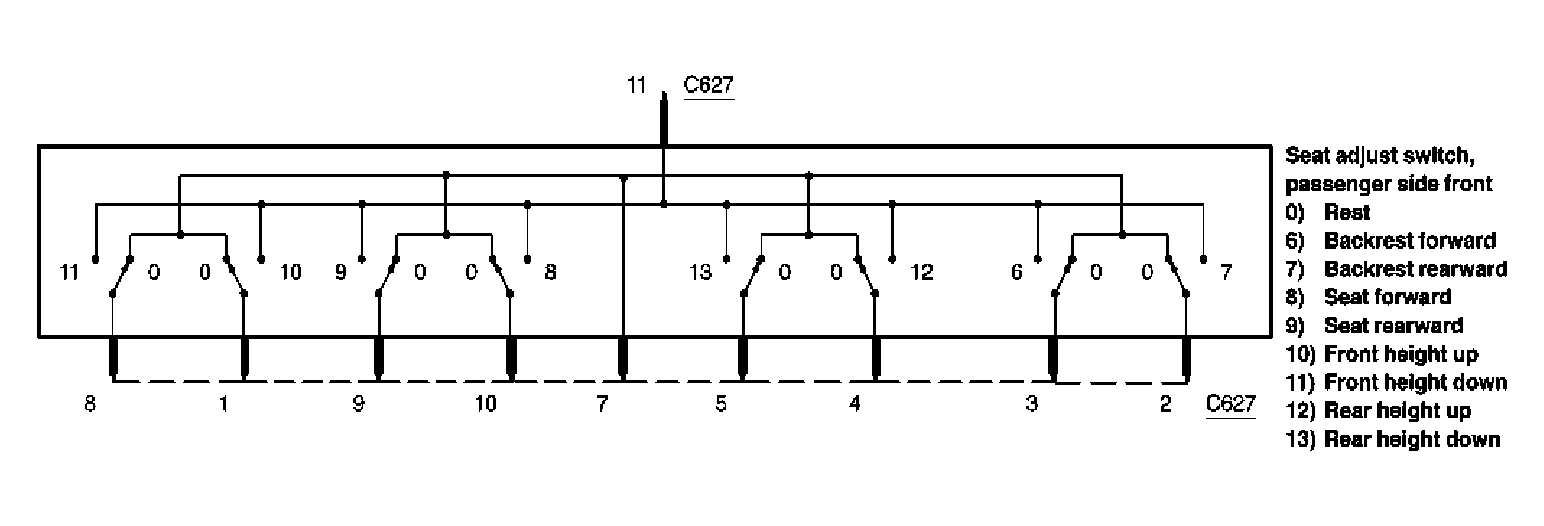

Fig 1: Seat Adjust Switch, Passenger Side Front - Schematic
G04013191Courtesy of FORD MOTOR CO.
