Fuel Pump Module: Installation

  1. Clean the fuel pump mounting flange and the fuel tank mounting surface.
  2. Install a fuel pump mounting gasket on the mounting flange.
    3. NOTE: Tighten fuel pump bolts in a star pattern.

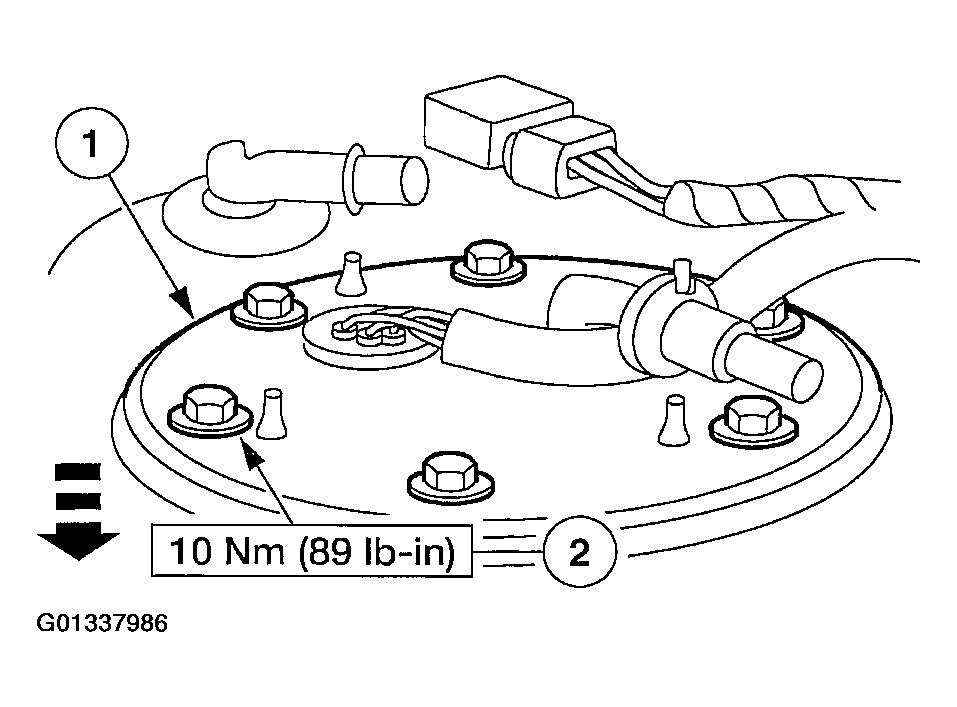

    Fig 1: Installing Fuel Pump Module Bolts
    G01337986Courtesy of FORD MOTOR CO.
  3. Install the fuel pump.
    1. Position the fuel pump in the fuel tank.
    2. Install the bolts.
  4. Connect the pressure transducer connector on the top rear corner of the fuel tank.
  5. Install the fuel tank. For additional information, see FUEL TANK .
