Instrument Panel: Installation

    NOTE: Installation of the instrument panel into the vehicle requires an assistant.
  1. Install the instrument panel into the vehicle.
  2. Install the lower LH instrument panel cowl side bolt.

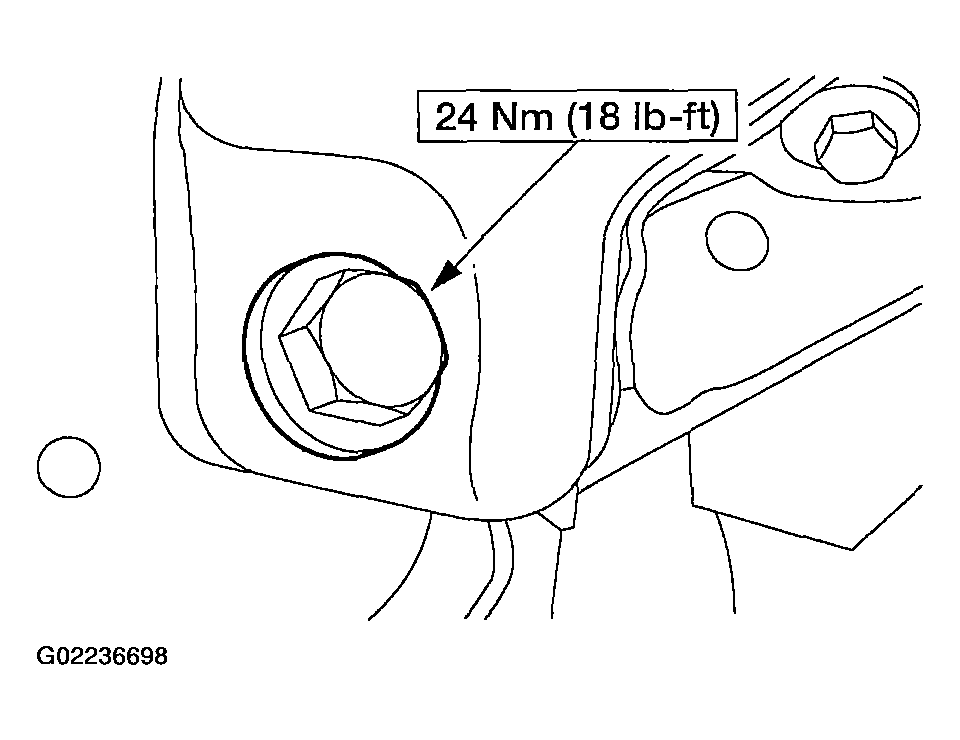

    Fig 1: Installing Left Instrument Panel Cowl Side Bolt
    G02236698Courtesy of FORD MOTOR CO.
  3. Install the upper LH instrument panel cowl side nut.

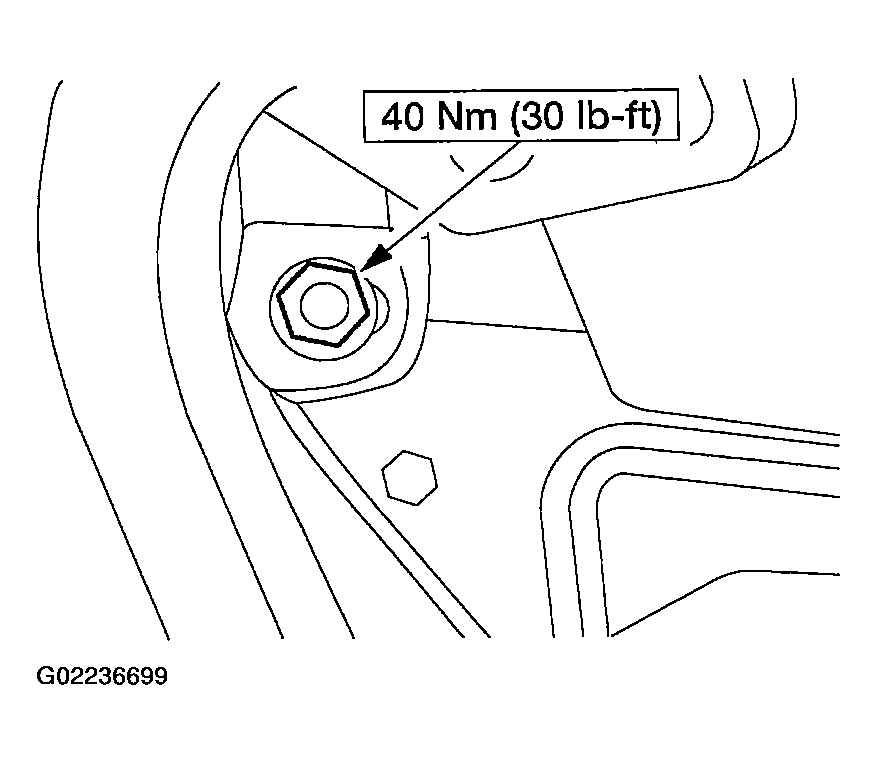

    Fig 2: Installing Left Instrument Panel Cowl Side Nut
    G02236699Courtesy of FORD MOTOR CO.
  4. Install the RH instrument panel cowl side nut.

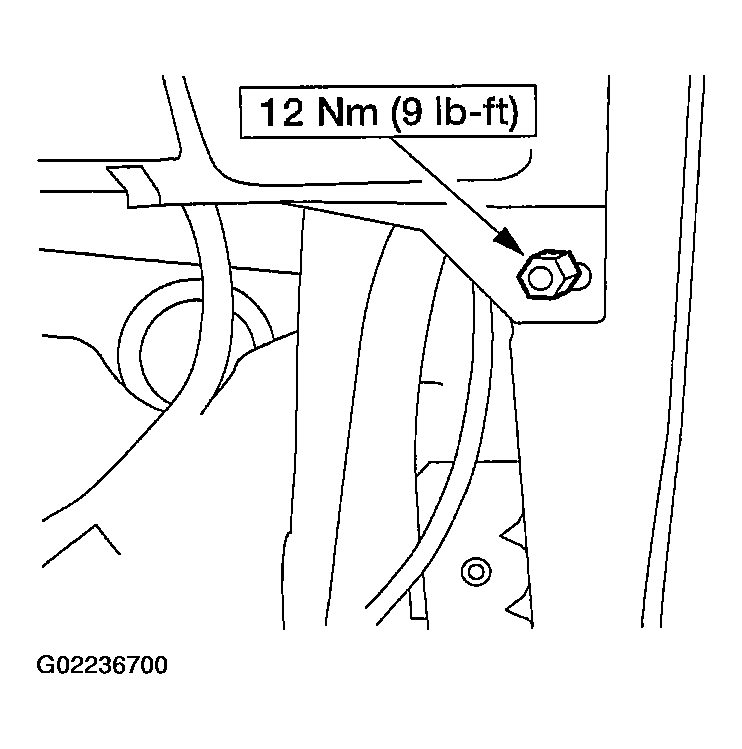

    Fig 3: Installing Right Instrument Panel Cowl Side Nut
    G02236700Courtesy of FORD MOTOR CO.
  5. Install the three instrument panel cowl top screws.

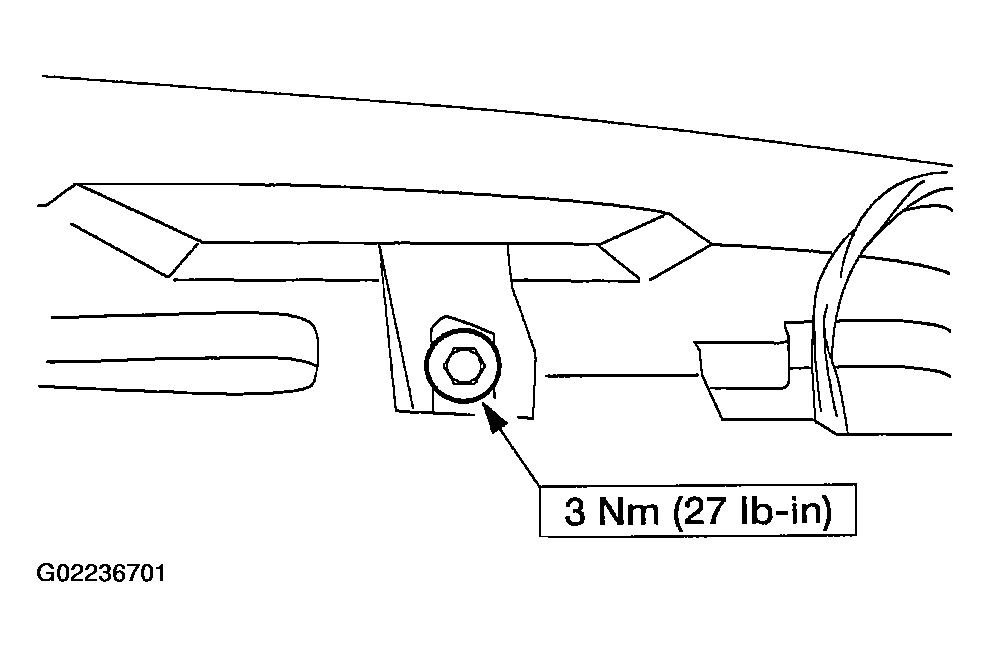

    Fig 4: Installing Instrument Panel Cowl Top Screws
    G02236701Courtesy of FORD MOTOR CO.
  6. Install the instrument panel defroster opening grille.
  7. Connect the parking brake switch electrical connector.

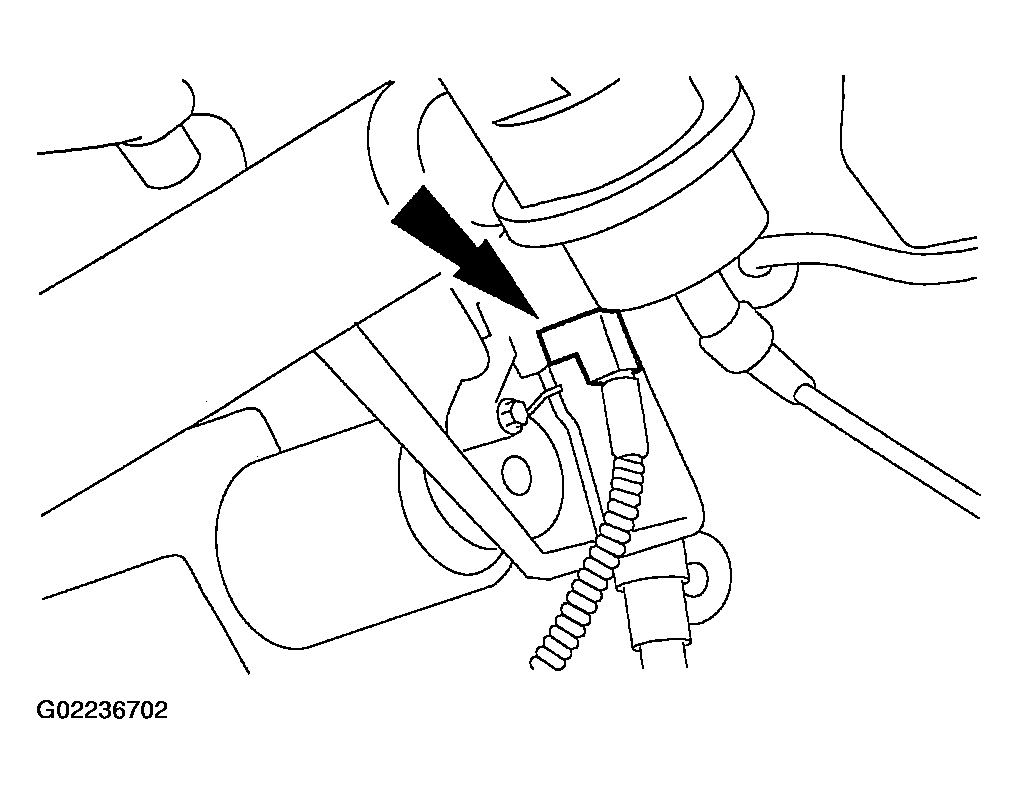

    Fig 5: Connecting Parking Brake Switch Electrical Connector
    G02236702Courtesy of FORD MOTOR CO.
  8. Connect the LH wiring harness connectors.

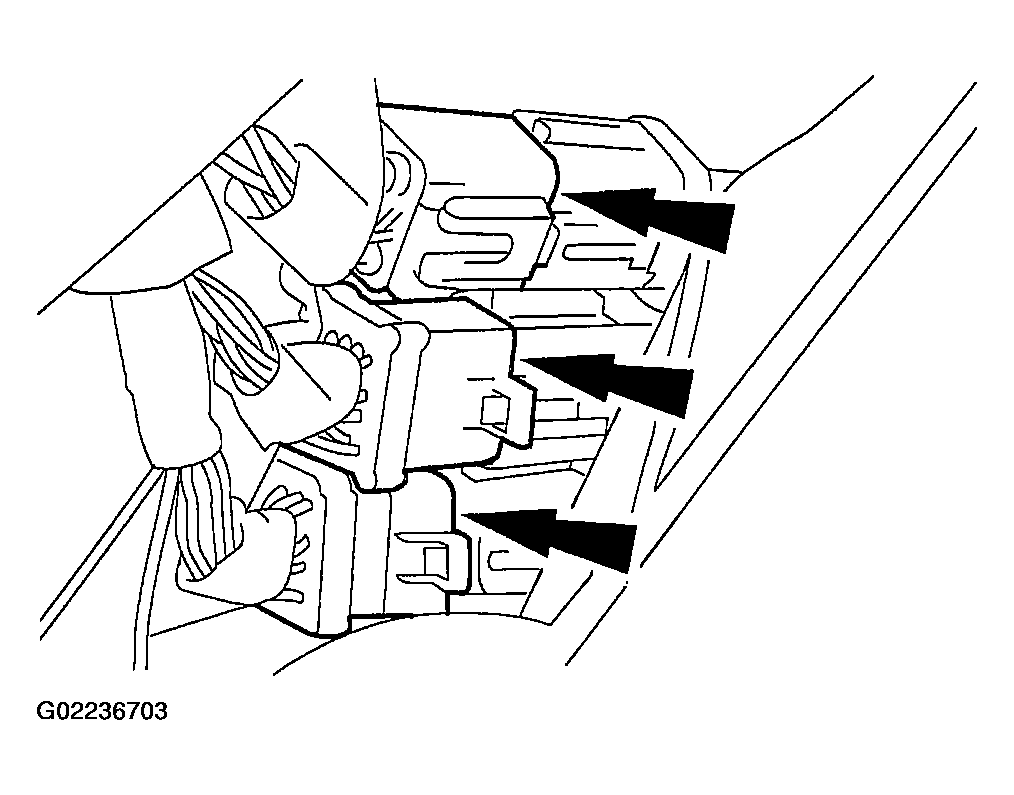

    Fig 6: Connecting Left Wiring Harness Connectors
    G02236703Courtesy of FORD MOTOR CO.
  9. Install the LH ground bolts.

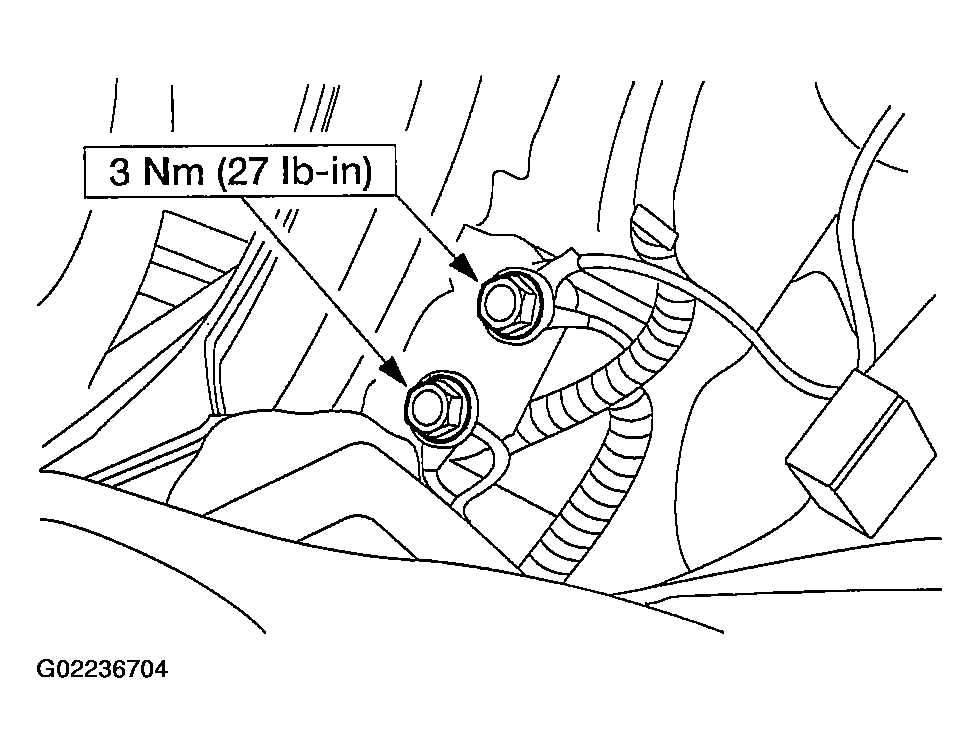

    Fig 7: Installing Left Ground Bolts
    G02236704Courtesy of FORD MOTOR CO.
    10. NOTE: LH shown, RH similar.

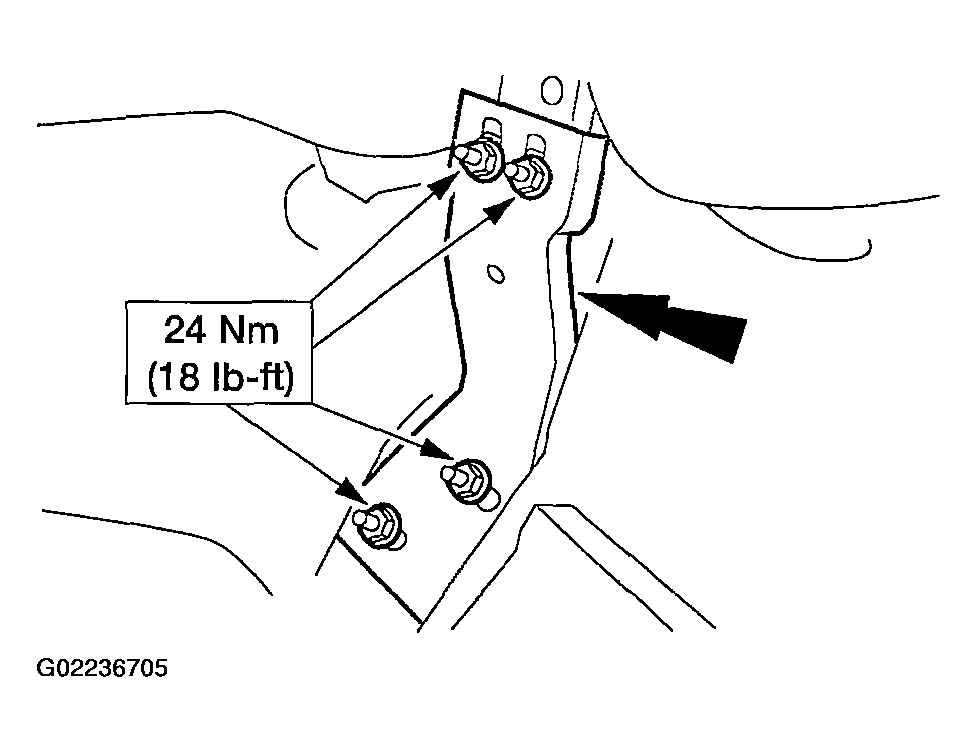

    Fig 8: Installing Instrument Panel Tunnel Braces
    G02236705Courtesy of FORD MOTOR CO.
  10. Install the eight nuts and the two instrument panel tunnel braces.
  11. Connect the climate control head vacuum harness connector.

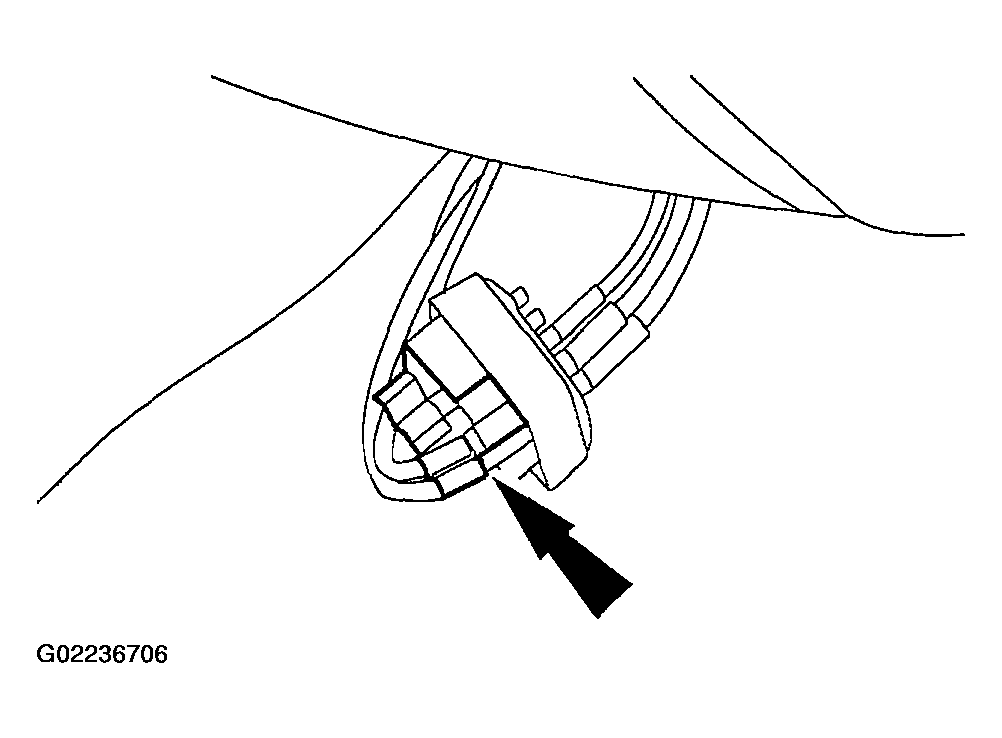

    Fig 9: Connecting Climate Control Head Vacuum Harness Connector
    G02236706Courtesy of FORD MOTOR CO.
  12. Position the tunnel brace trim cover and install the two pin-type retainers.

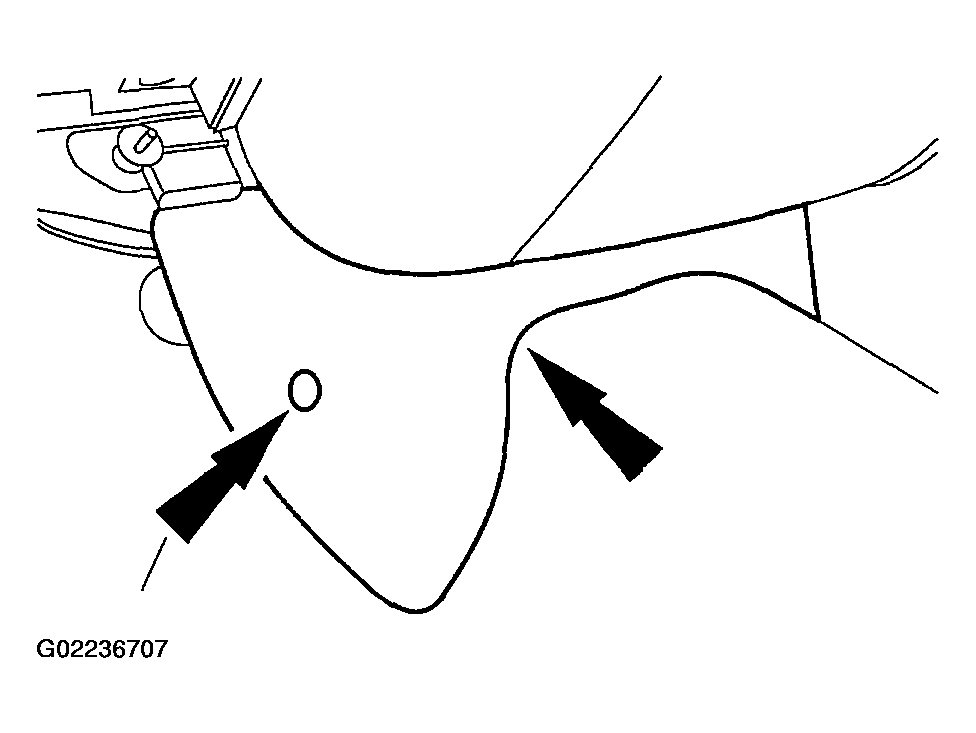

    Fig 10: Installing Tunnel Brace Trim Cover
    G02236707Courtesy of FORD MOTOR CO.
  13. Install the LH and RH door weatherstrip seals.
  14. Connect the RH bulkhead connector.
    • Tighten the bolt.

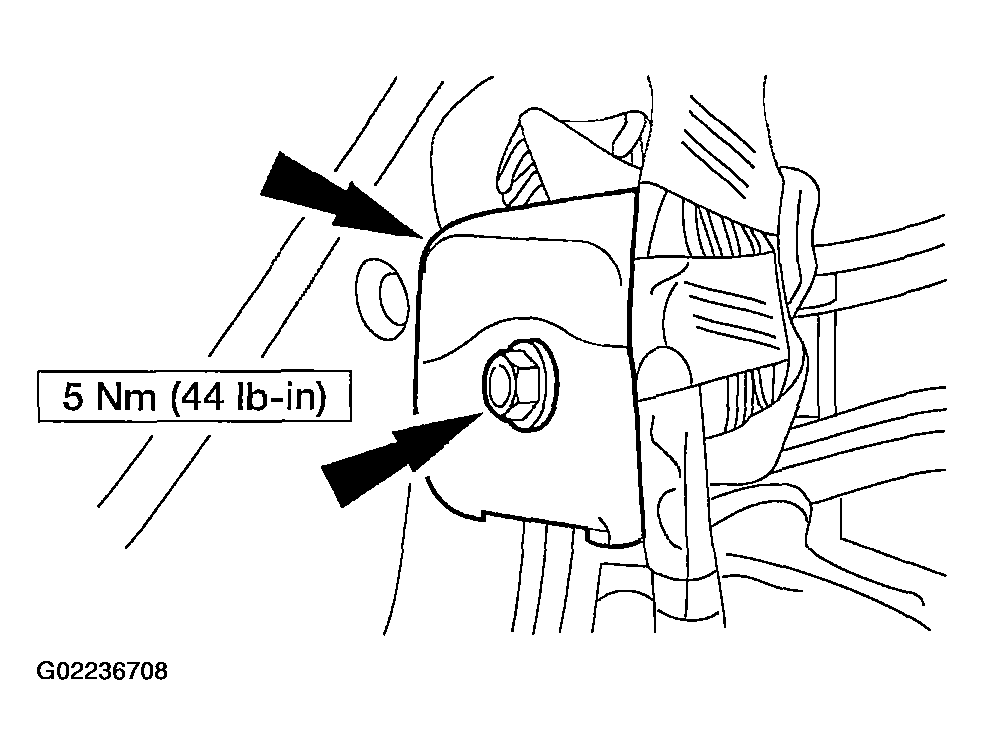

    Fig 11: Connecting Right Bulkhead Connector
    G02236708Courtesy of FORD MOTOR CO.
  15. Connect the EATC hose to the evaporator housing.

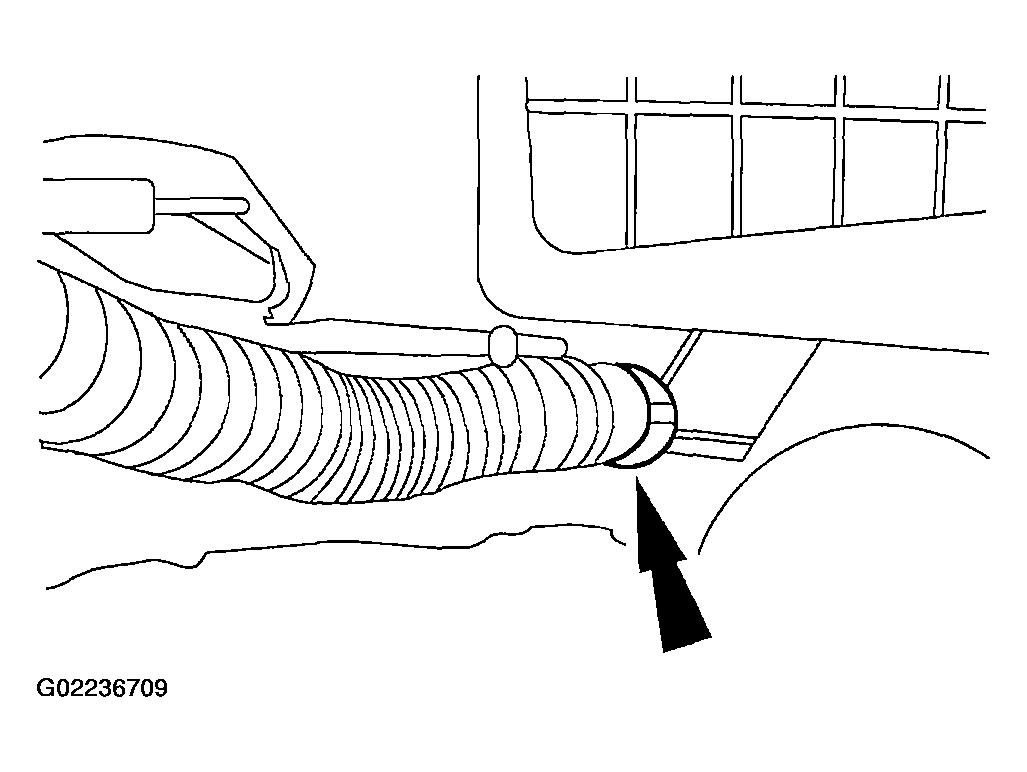

    Fig 12: Connecting EATC Hose To Evaporator Housing
    G02236709Courtesy of FORD MOTOR CO.
  16. Install the RH ground bolts.

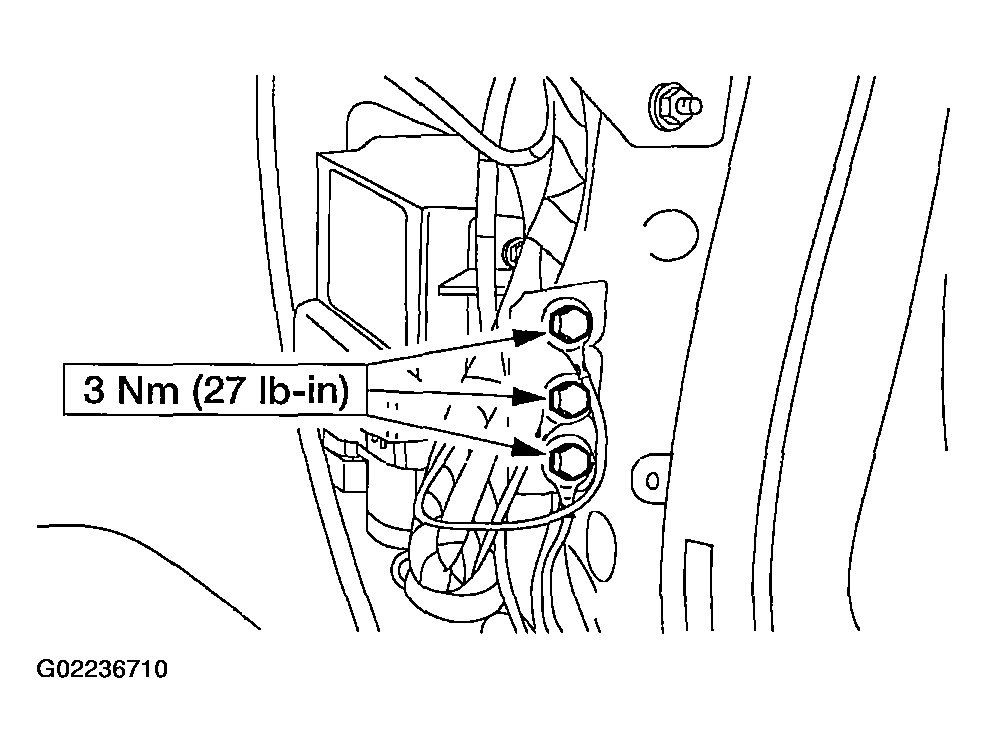

    Fig 13: Installing Right Ground Bolts
    G02236710Courtesy of FORD MOTOR CO.
  17. Connect the antenna cable in-line connector.

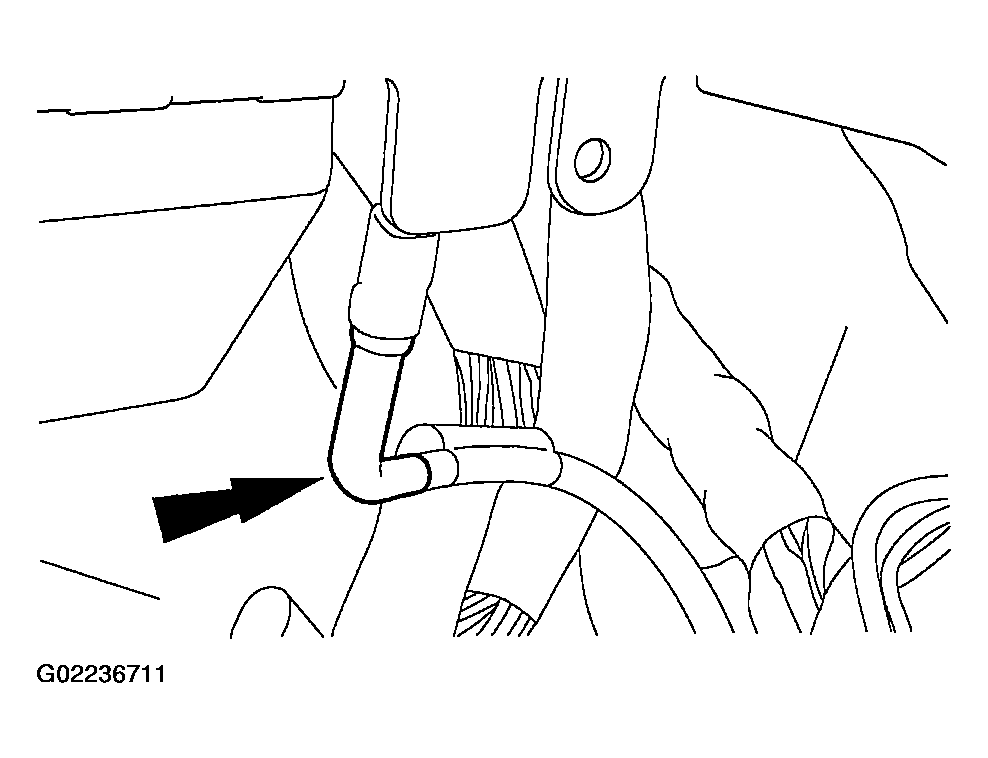

    Fig 14: Connecting Antenna Cable In-Line Connector
    G02236711Courtesy of FORD MOTOR CO.
    18. NOTE: LH shown, RH similar.

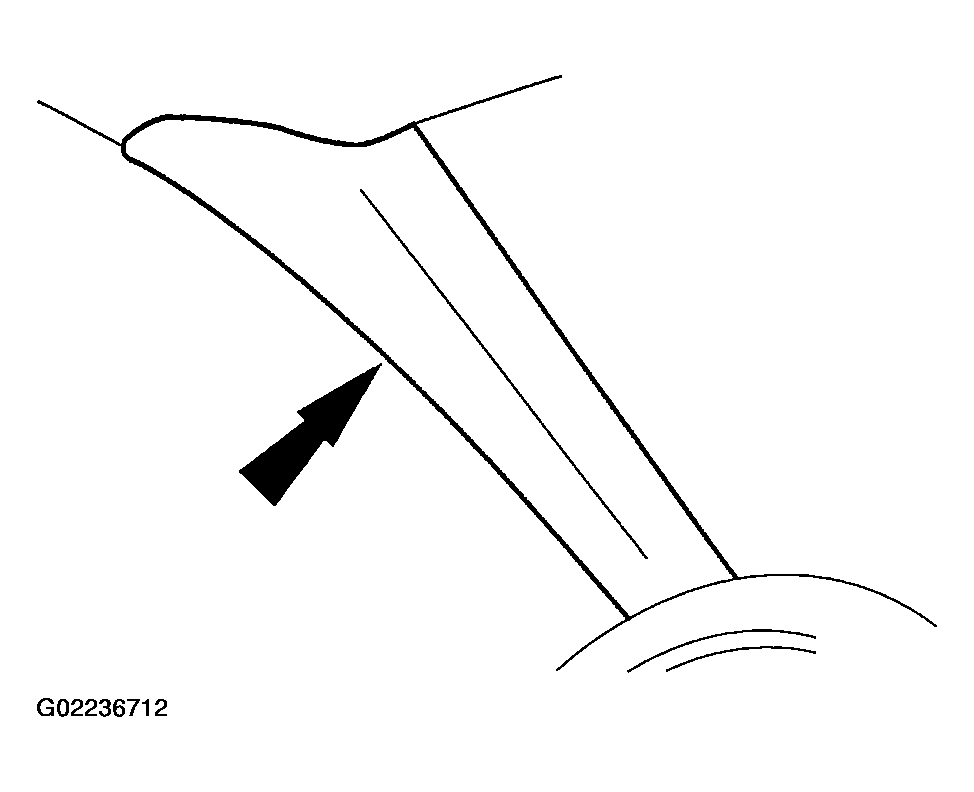

    Fig 15: Installing Windshield Side Garnish Moldings
    G02236712Courtesy of FORD MOTOR CO.
  18. Install the LH and RH windshield side garnish moldings.
    19. NOTE: LH shown, RH similar.

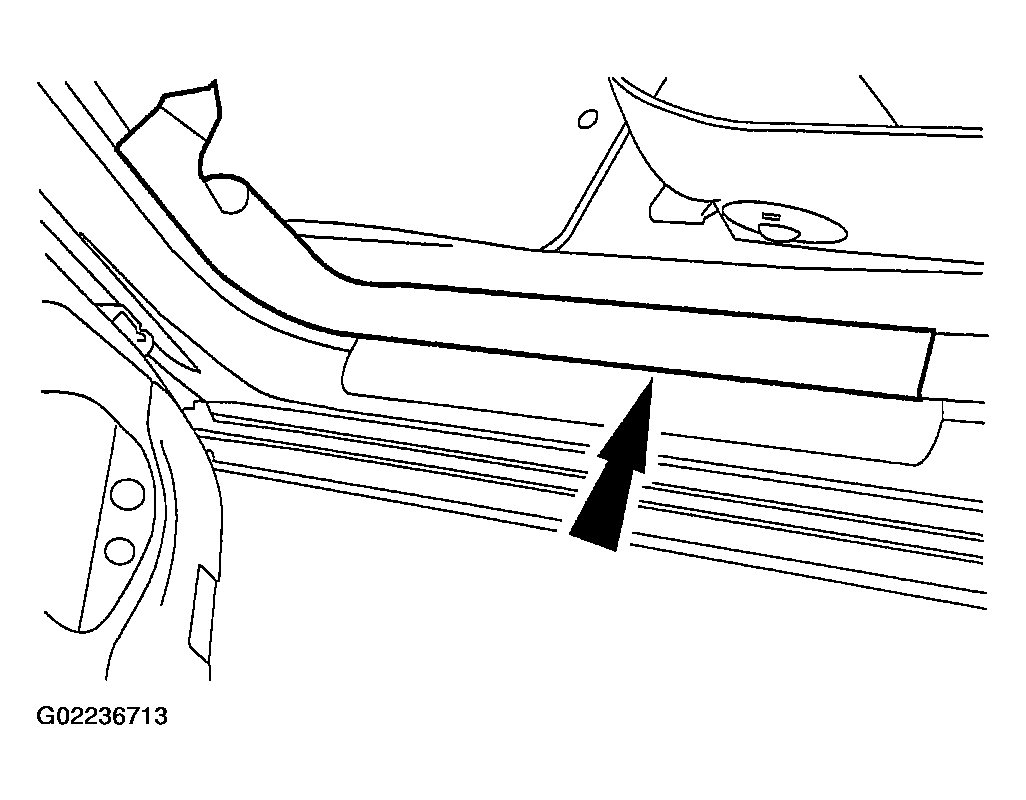

    Fig 16: Installing A-Pillar Lower Trim Panels
    G02236713Courtesy of FORD MOTOR CO.
  19. Install the LH and RH A-pillar lower trim panels.
  20. Feed the wiring harness through the dash panel and seat the wiring grommet.

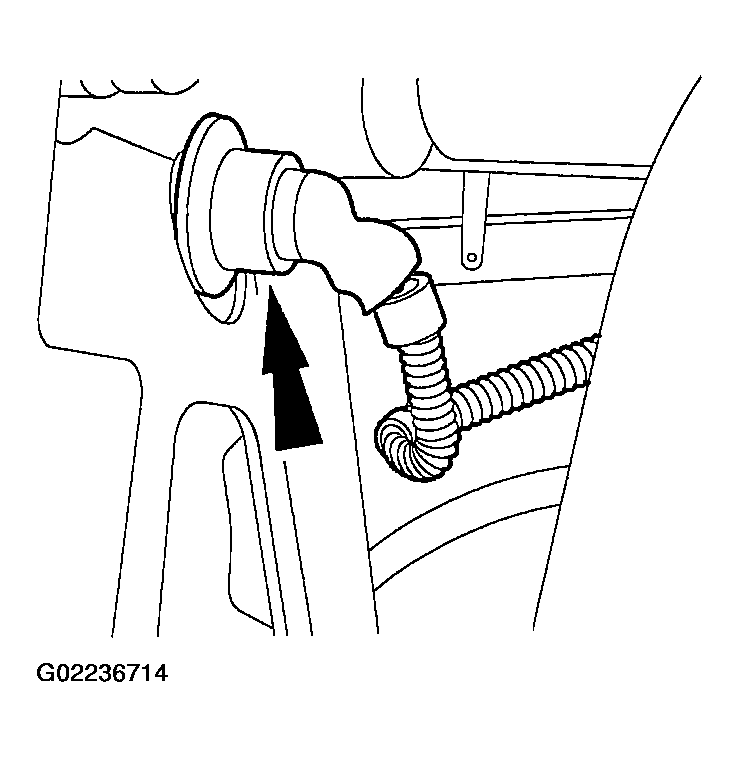

    Fig 17: Seating Wiring Grommet
    G02236714Courtesy of FORD MOTOR CO.
  21. Install the LH and RH instrument panel lower insulators.
  22. Raise the vehicle.
  23. Connect the wiring harness retainer to the dash panel.

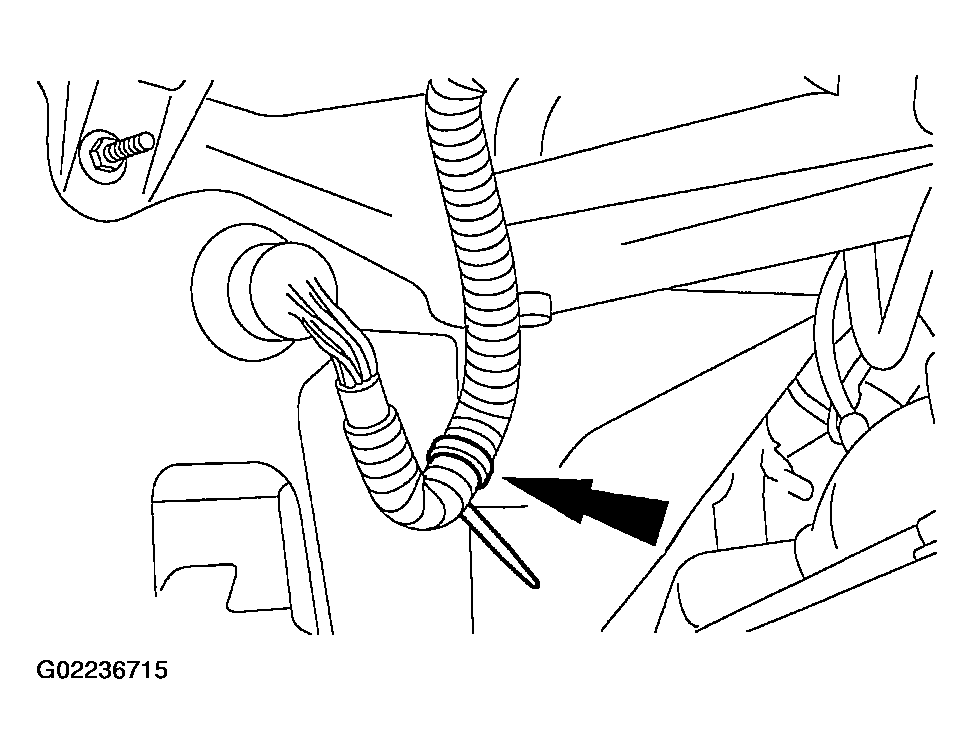

    Fig 18: Connecting Wiring Harness Retainer To Dash Panel
    G02236715Courtesy of FORD MOTOR CO.
  24. Install the RH splash shield. For additional information, see FENDER SPLASH SHIELD - RH .
  25. Clip the LH bulkhead connector into the dash panel.

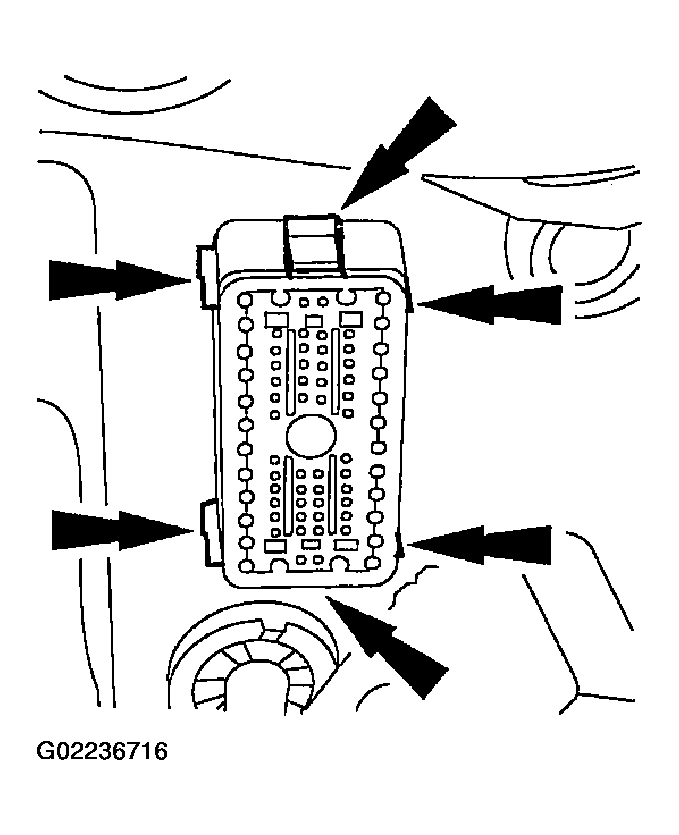

    Fig 19: Clipping Left Bulkhead Connector Into Dash Panel
    G02236716Courtesy of FORD MOTOR CO.
  26. Connect the LH bulkhead connector.
    • Tighten the bolt.

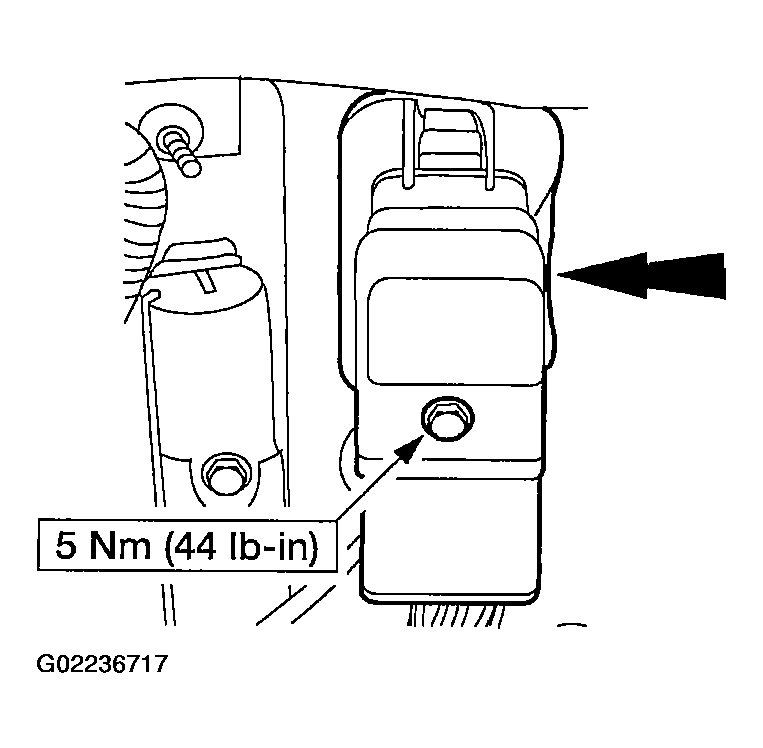

    Fig 20: Connecting Left Bulkhead Connector
    G02236717Courtesy of FORD MOTOR CO.
  27. Position the speed control servo.
    1. Install the nuts.
    2. Connect the electrical connector.

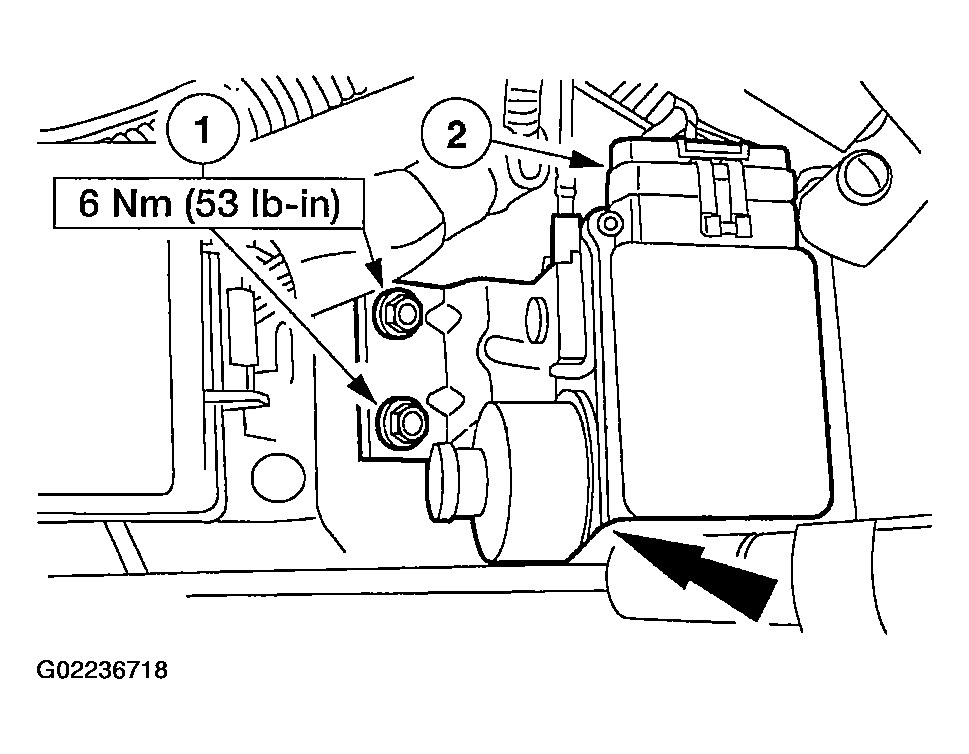

    Fig 21: Installing Speed Control Servo
    G02236718Courtesy of FORD MOTOR CO.
  28. Open the glove compartment door.
  29. Through the glove compartment opening, install the instrument panel support brace bolt.

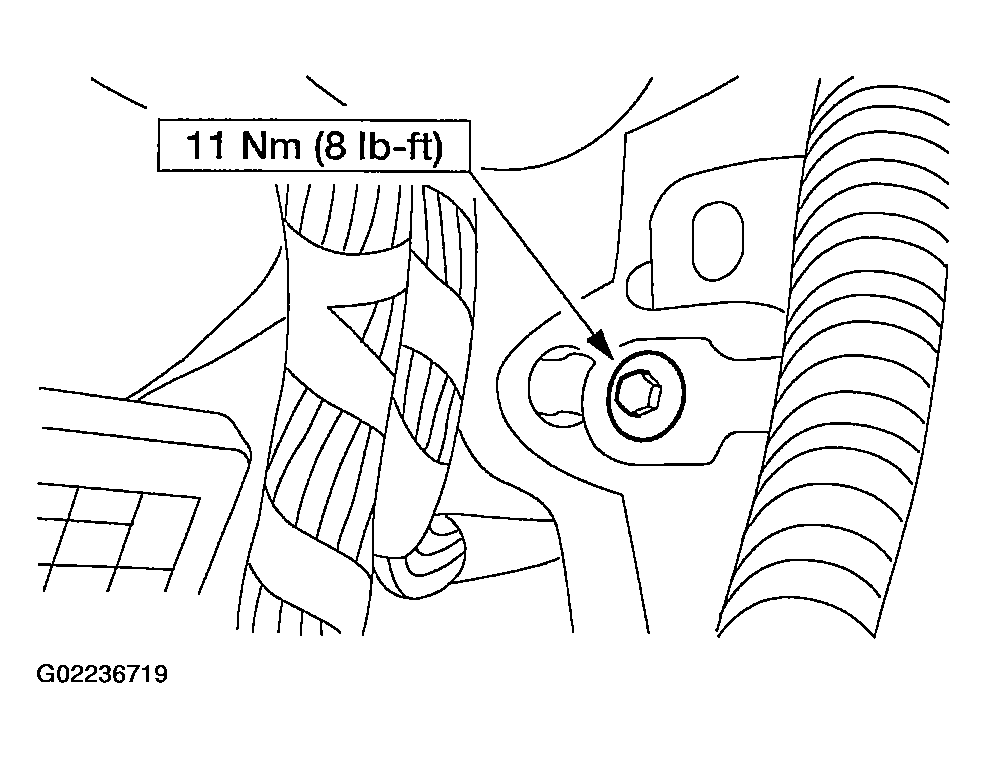

    Fig 22: Installing Instrument Panel Support Brace Bolt
    G02236719Courtesy of FORD MOTOR CO.
  30. Install the passenger side air bag module. For additional information, see DUAL-STAGE PASSENGER-SIDE AIR BAG MODULE .
  31. Install the steering column. For additional information, see STEERING COLUMN .
