Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

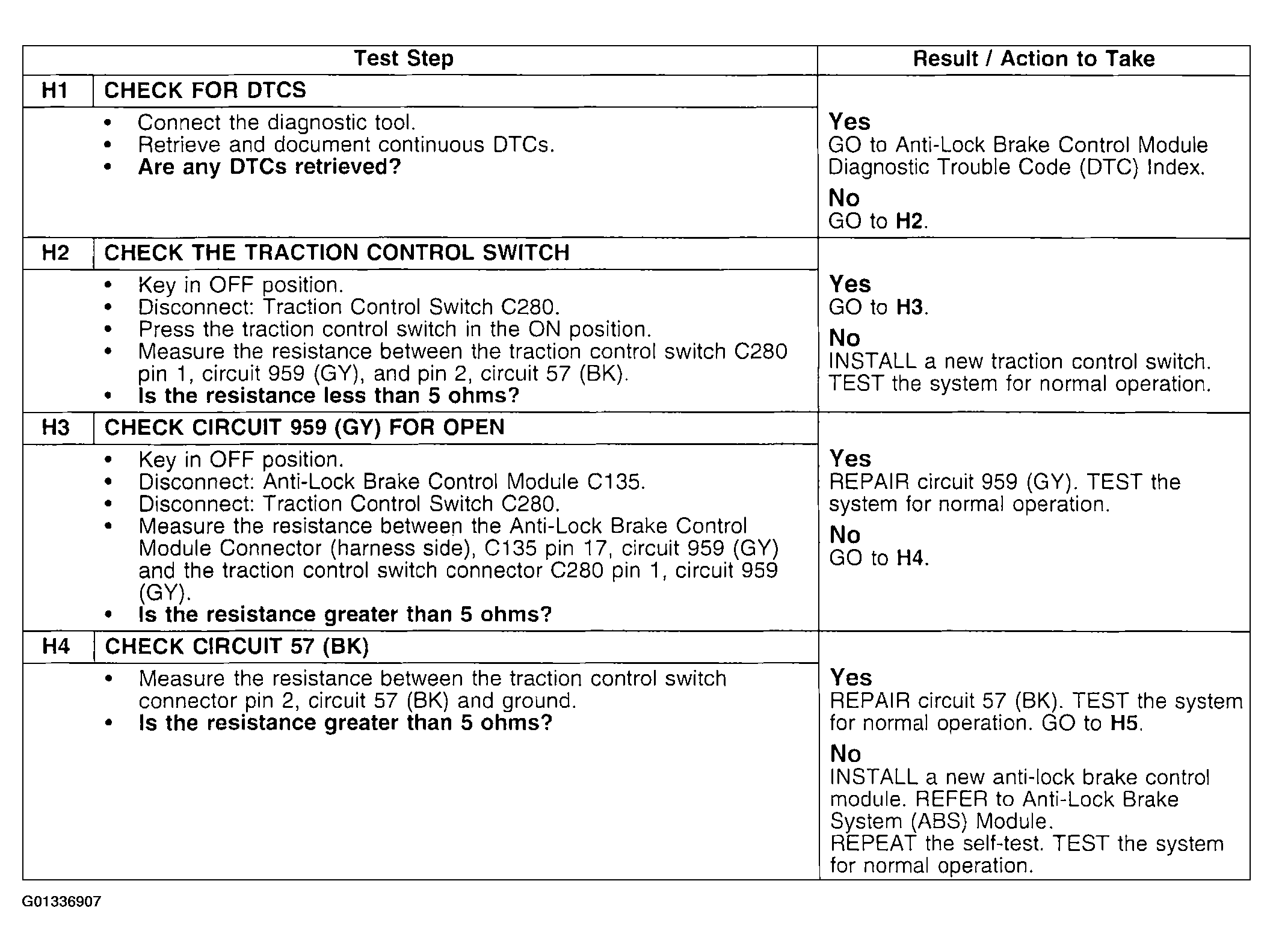

Fig 1: Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled (Steps H1-H4)

Courtesy of FORD MOTOR CO.

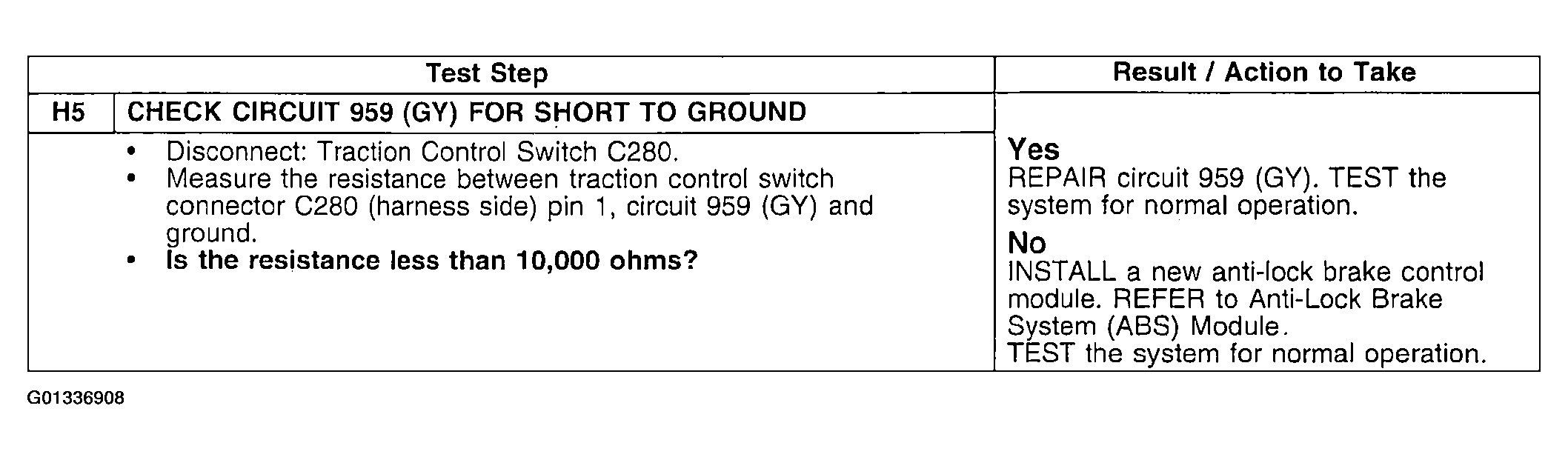

Fig 2: Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled (Step H5)

Courtesy of FORD MOTOR CO.
