Pinpoint Test K: The Rear Air Suspension Module (RASM) Does Not Respond To The Diagnostic Tool

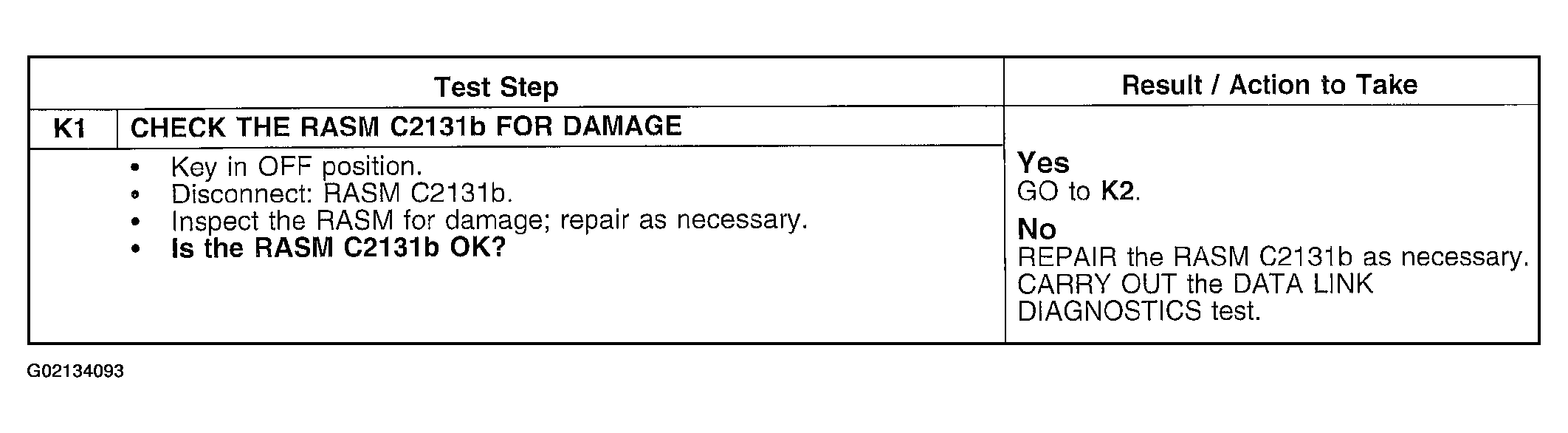

Fig 1: Pinpoint Test K (1 Of 3)

Courtesy of FORD MOTOR CO.

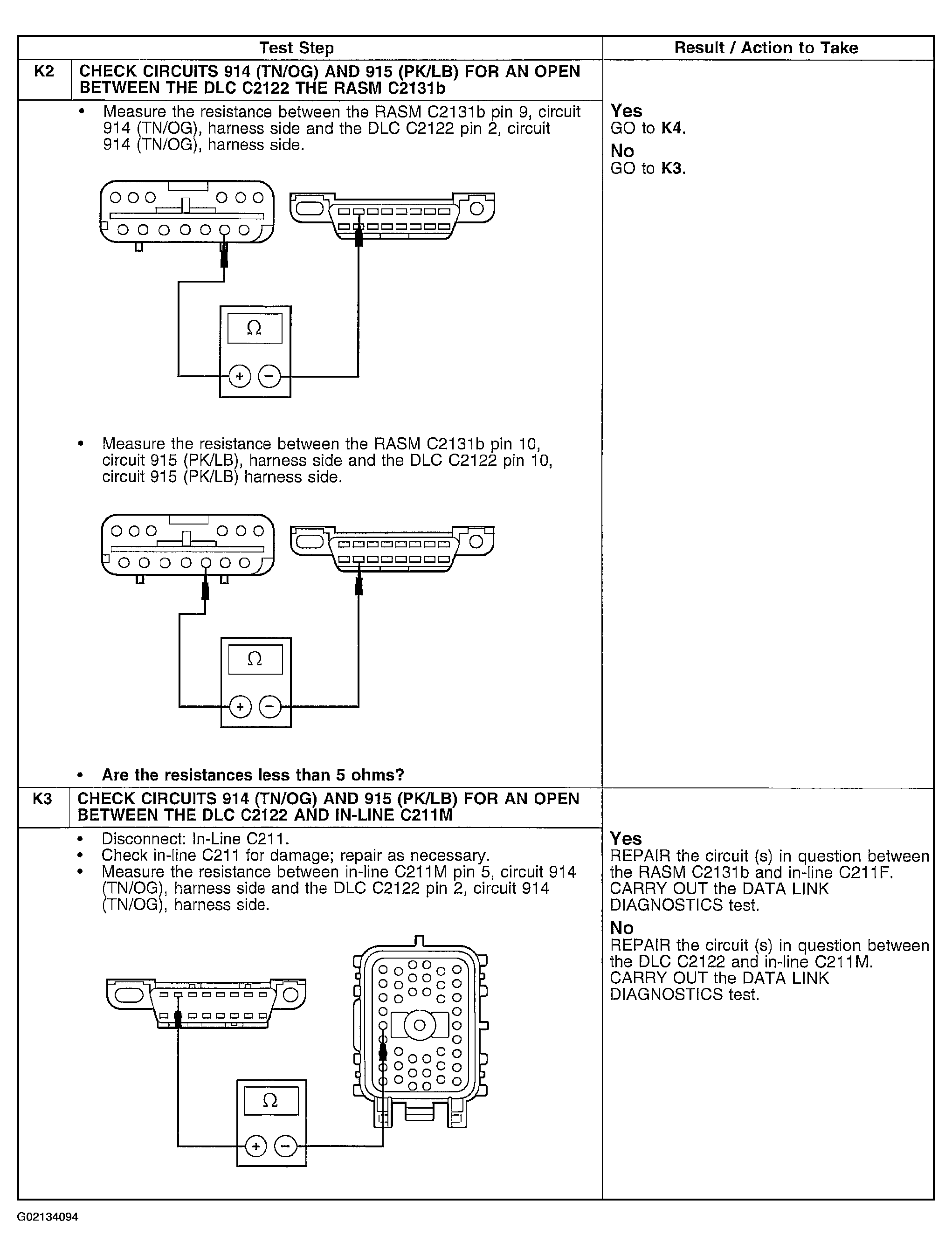

Fig 2: Pinpoint Test K (2 Of 3)

Courtesy of FORD MOTOR CO.

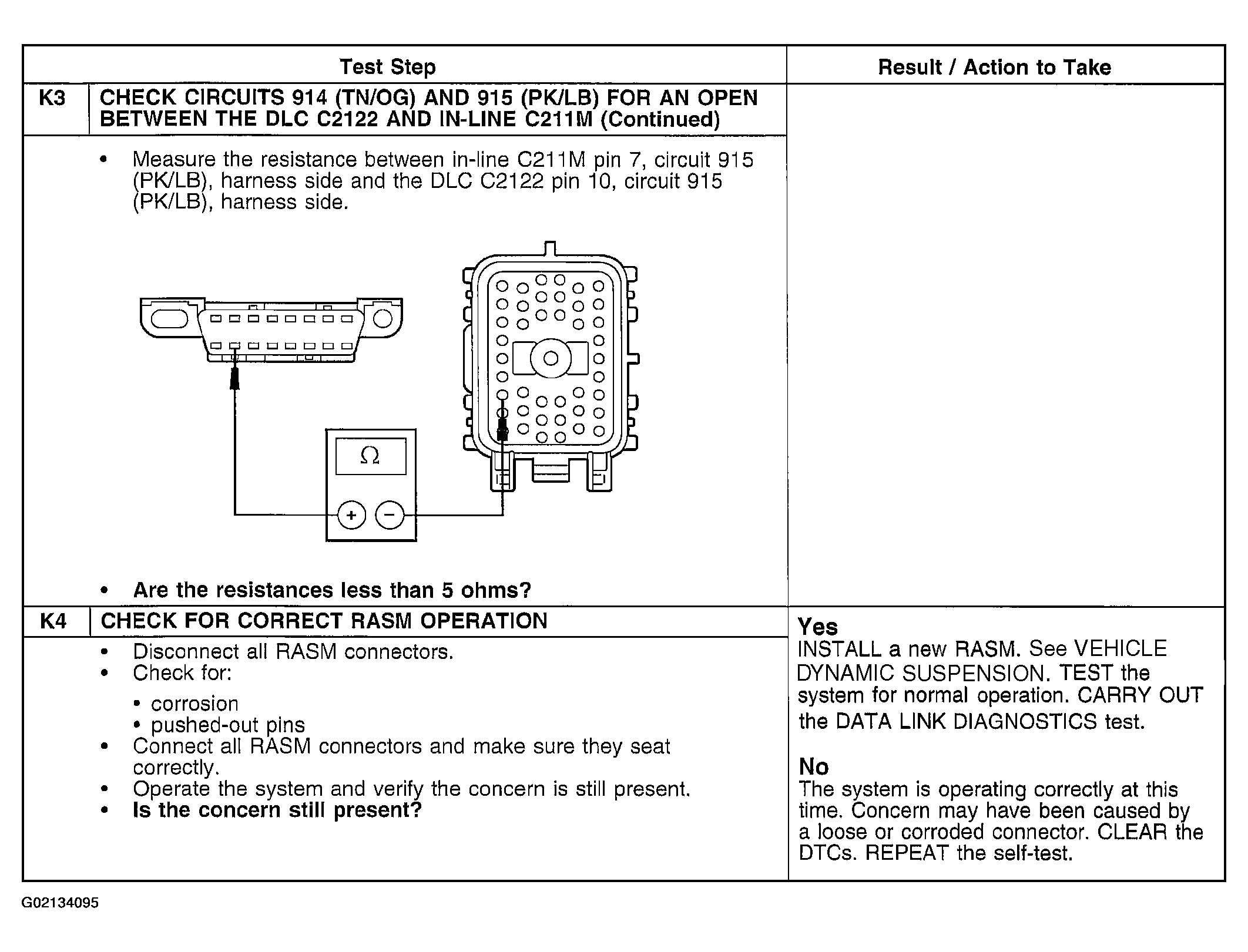

Fig 3: Pinpoint Test K (3 Of 3)

Courtesy of FORD MOTOR CO.
