Pinpoint Test F: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

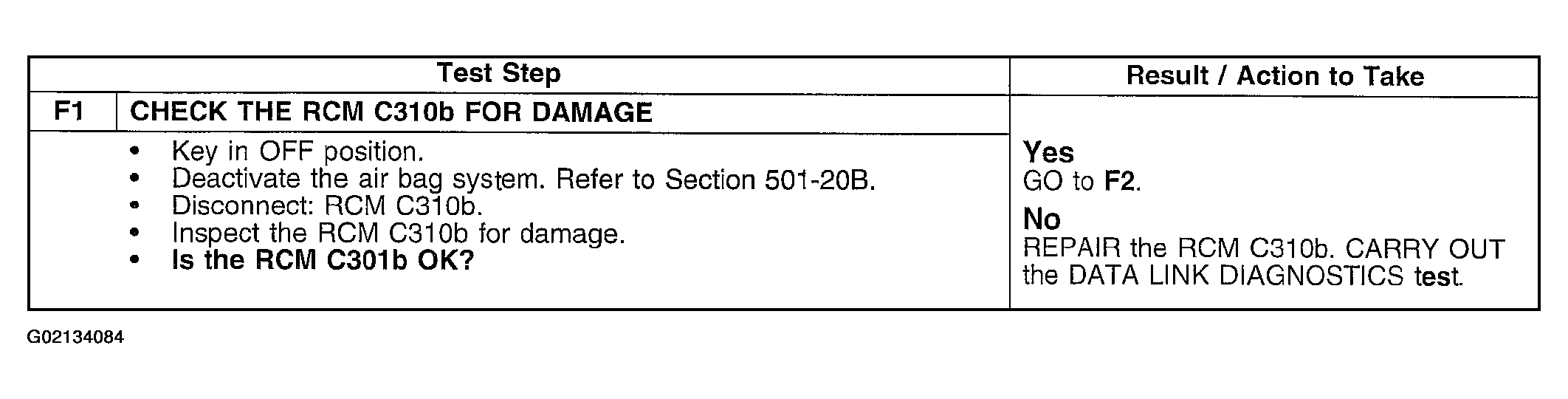

Fig 1: Pinpoint Test F (1 Of 2)
G02134084Courtesy of FORD MOTOR CO.

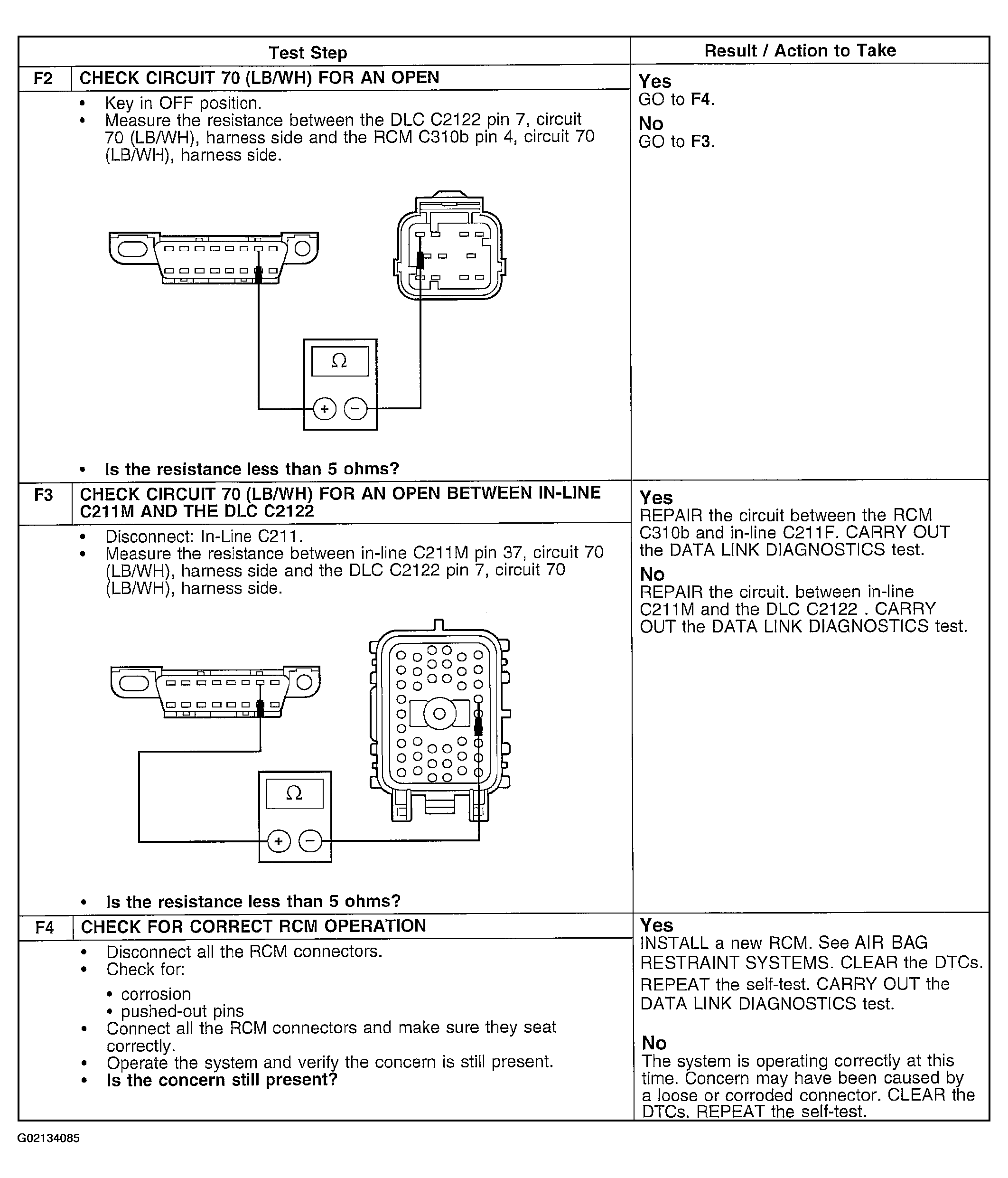

Fig 2: Pinpoint Test F (2 Of 2)
G02134085Courtesy of FORD MOTOR CO.
