Pinpoint Test D: The Driver Seal Module (DSM) Does Not Respond To The Diagnostic Tool

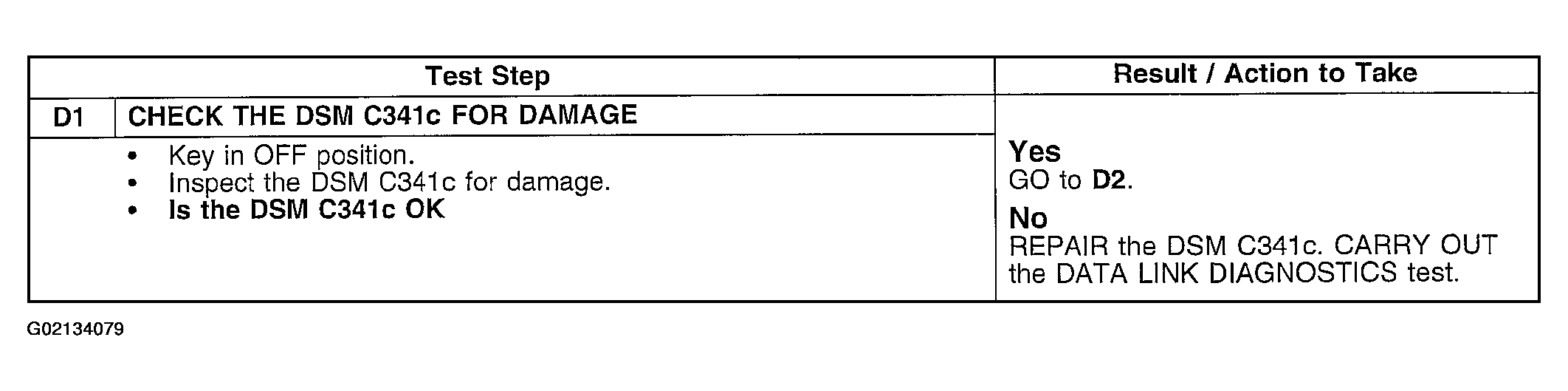

Fig 1: Pinpoint Test D (1 Of 3)
G02134079Courtesy of FORD MOTOR CO.

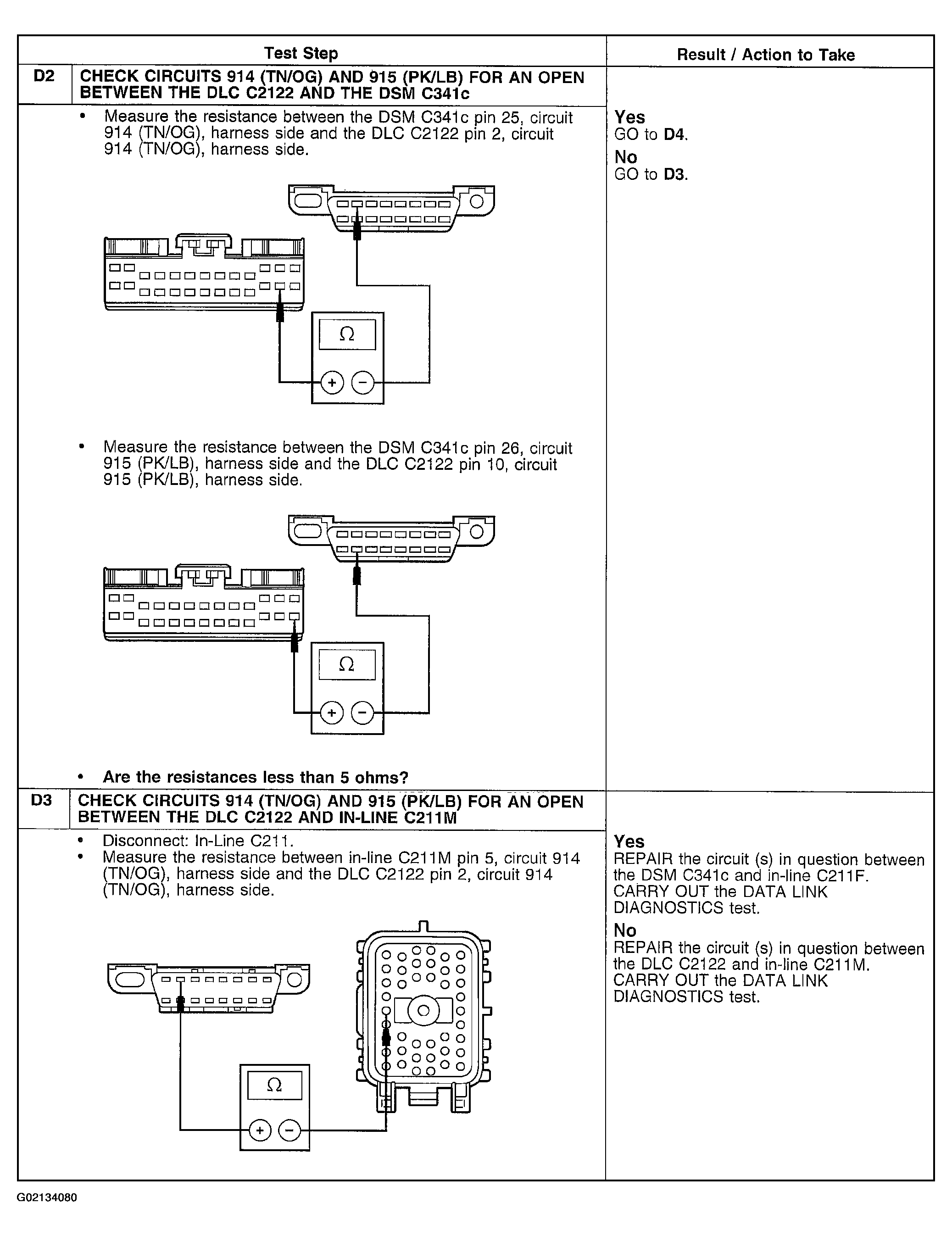

Fig 2: Pinpoint Test D (2 Of 3)
G02134080Courtesy of FORD MOTOR CO.

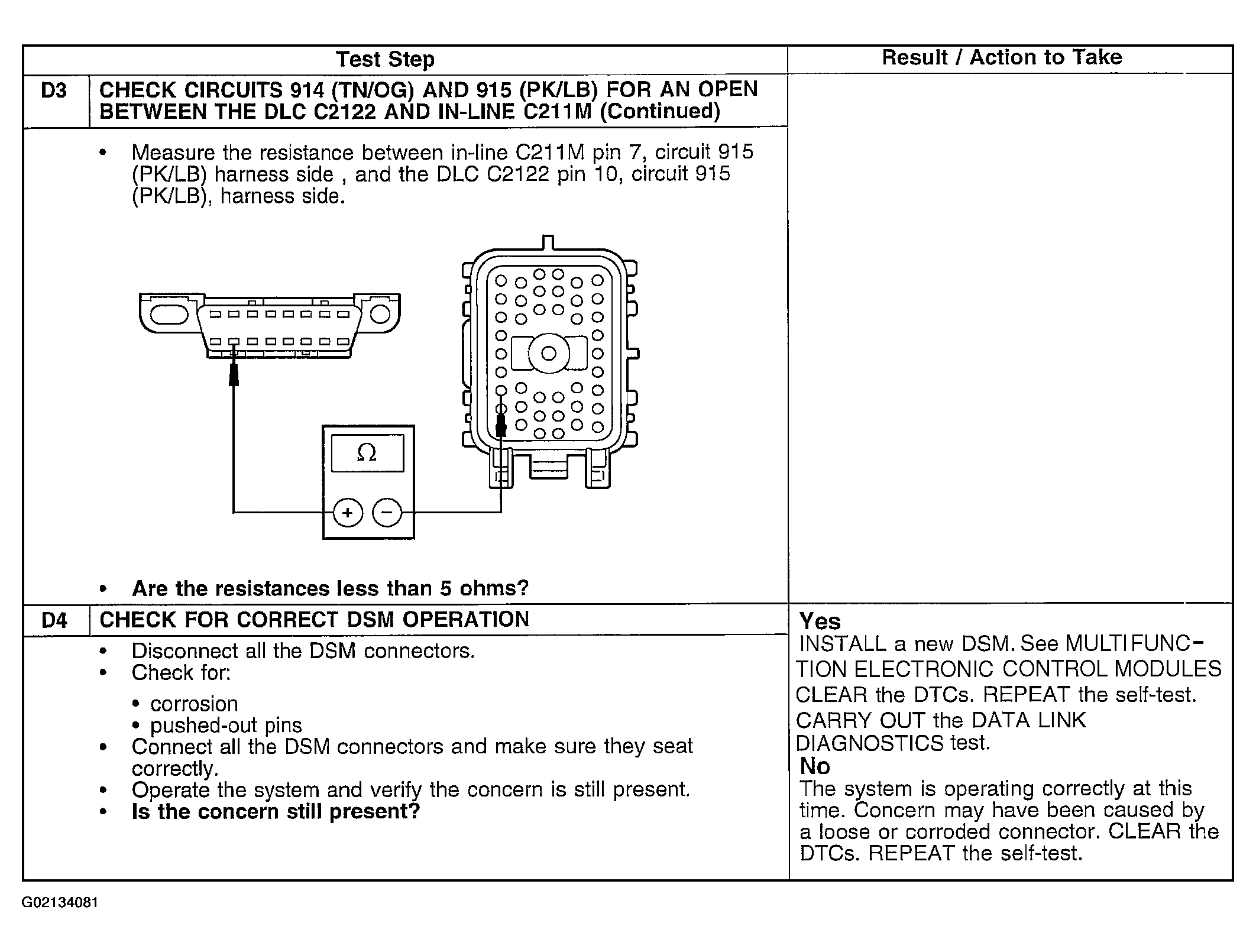

Fig 3: Pinpoint Test D (3 Of 3)
G02134081Courtesy of FORD MOTOR CO.
