Pinpoint Test A: The Anti-Lock Brake Control (ABS) Module Does Not Respond To The Diagnostic Tool

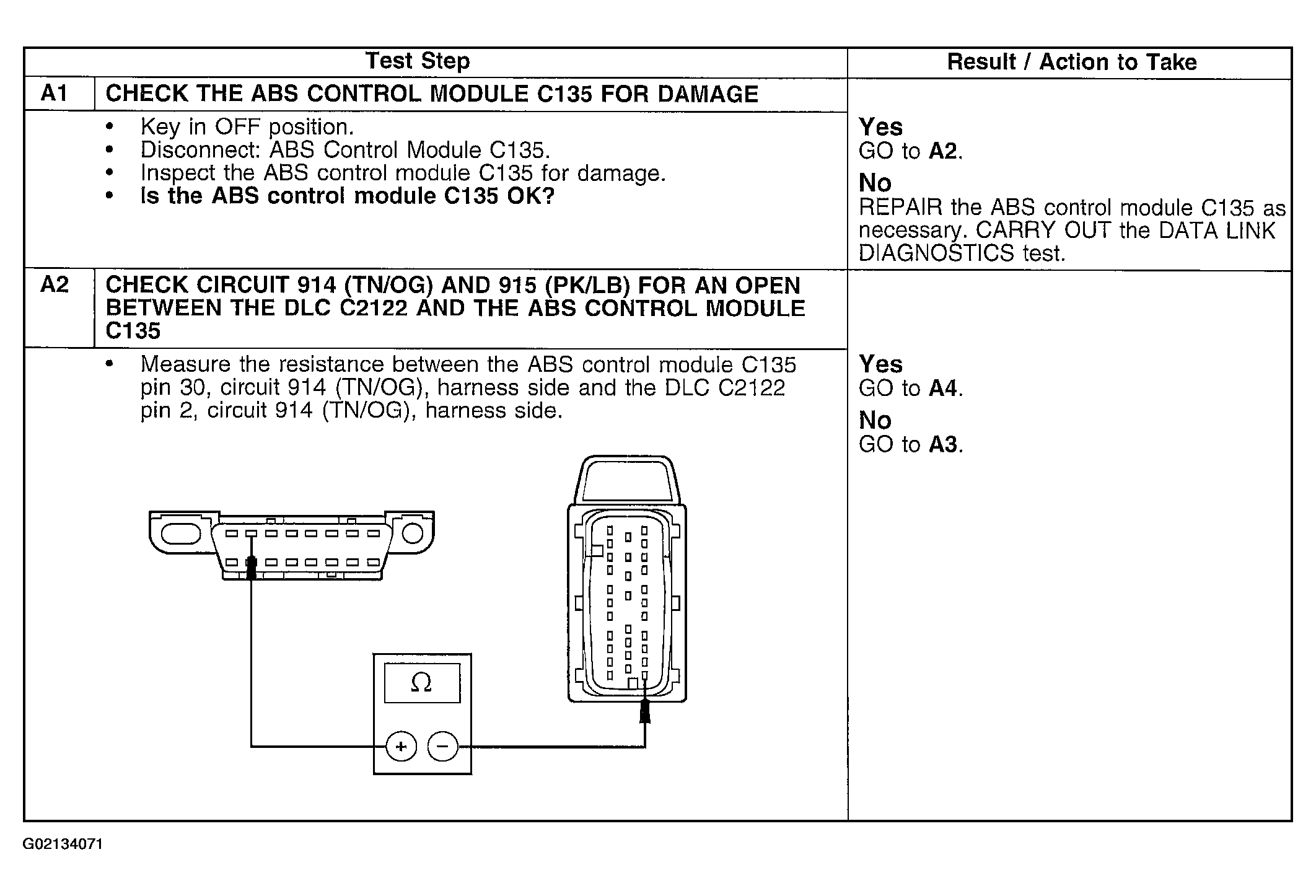

Fig 1: Pinpoint Test A (1 Of 3)

Courtesy of FORD MOTOR CO.

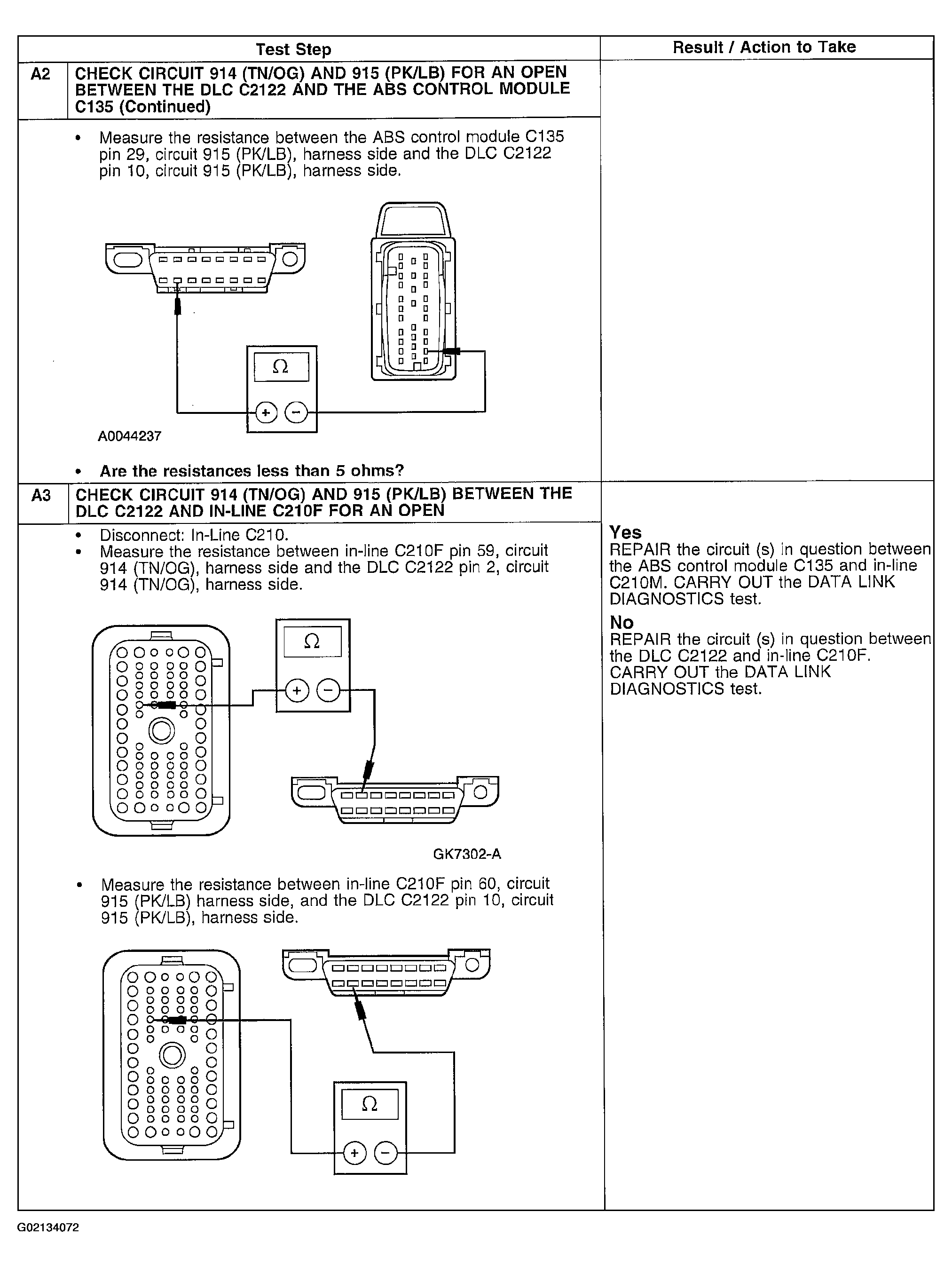

Fig 2: Pinpoint Test A (2 Of 3)

Courtesy of FORD MOTOR CO.

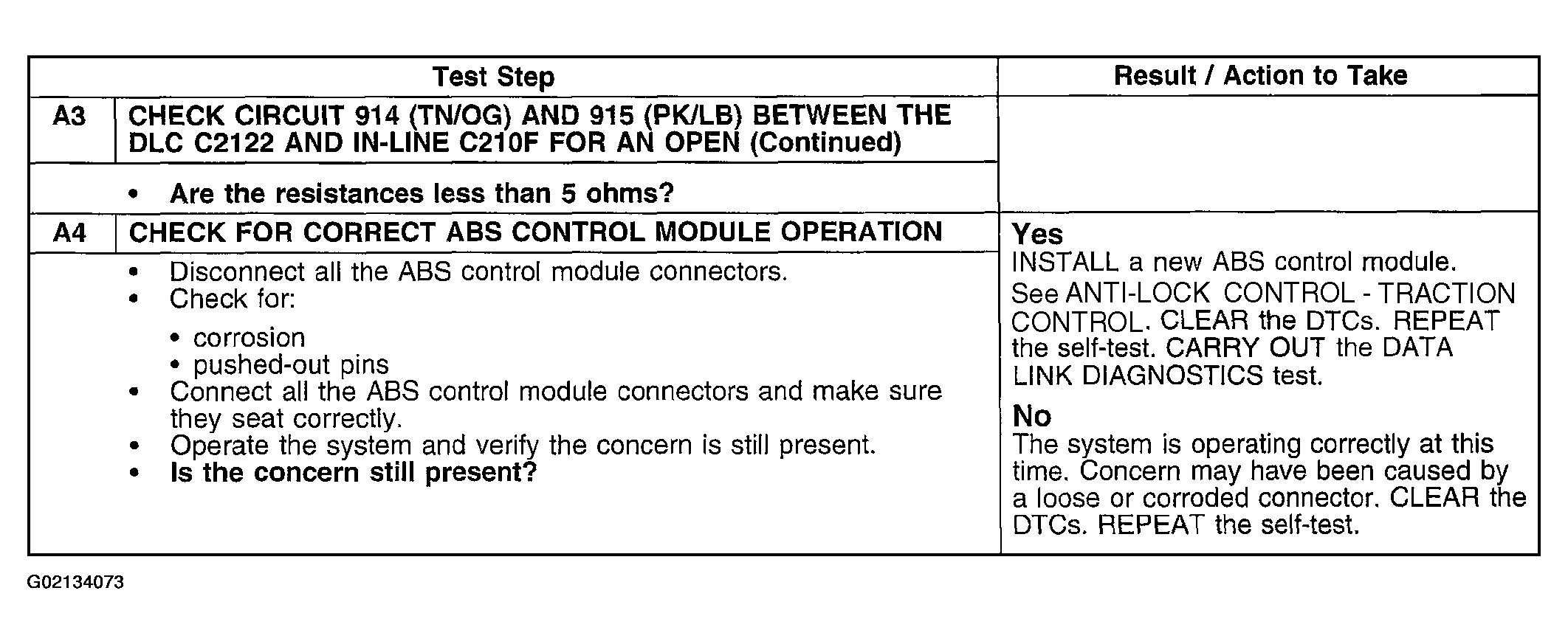

Fig 3: Pinpoint Test A (3 Of 3)

Courtesy of FORD MOTOR CO.
