Removal and Installation

  1. Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
  2. Remove the driver seat. For additional information, see FRONT SEAT .
  3. Remove the driver seat module (DSM).
    1. Disconnect the electrical connectors.
    2. Remove the screws.

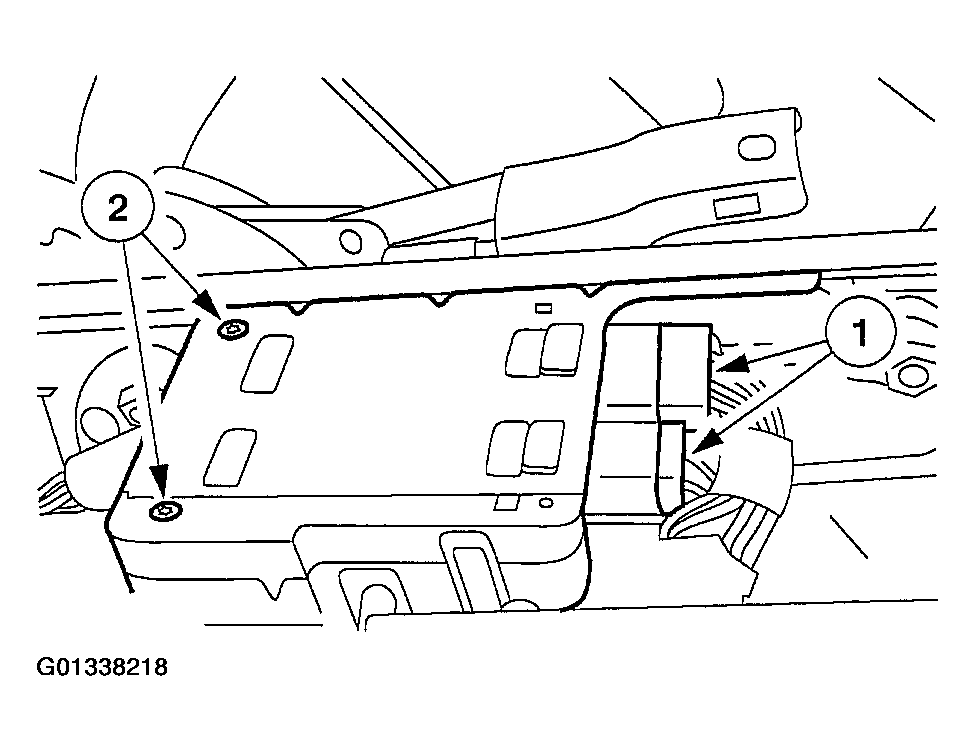

    Fig 1: Removing DSM
    G01338218Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
