Pinpoint Test I: The Data System Is Inoperative, Intermittent Or Incorrect Operation

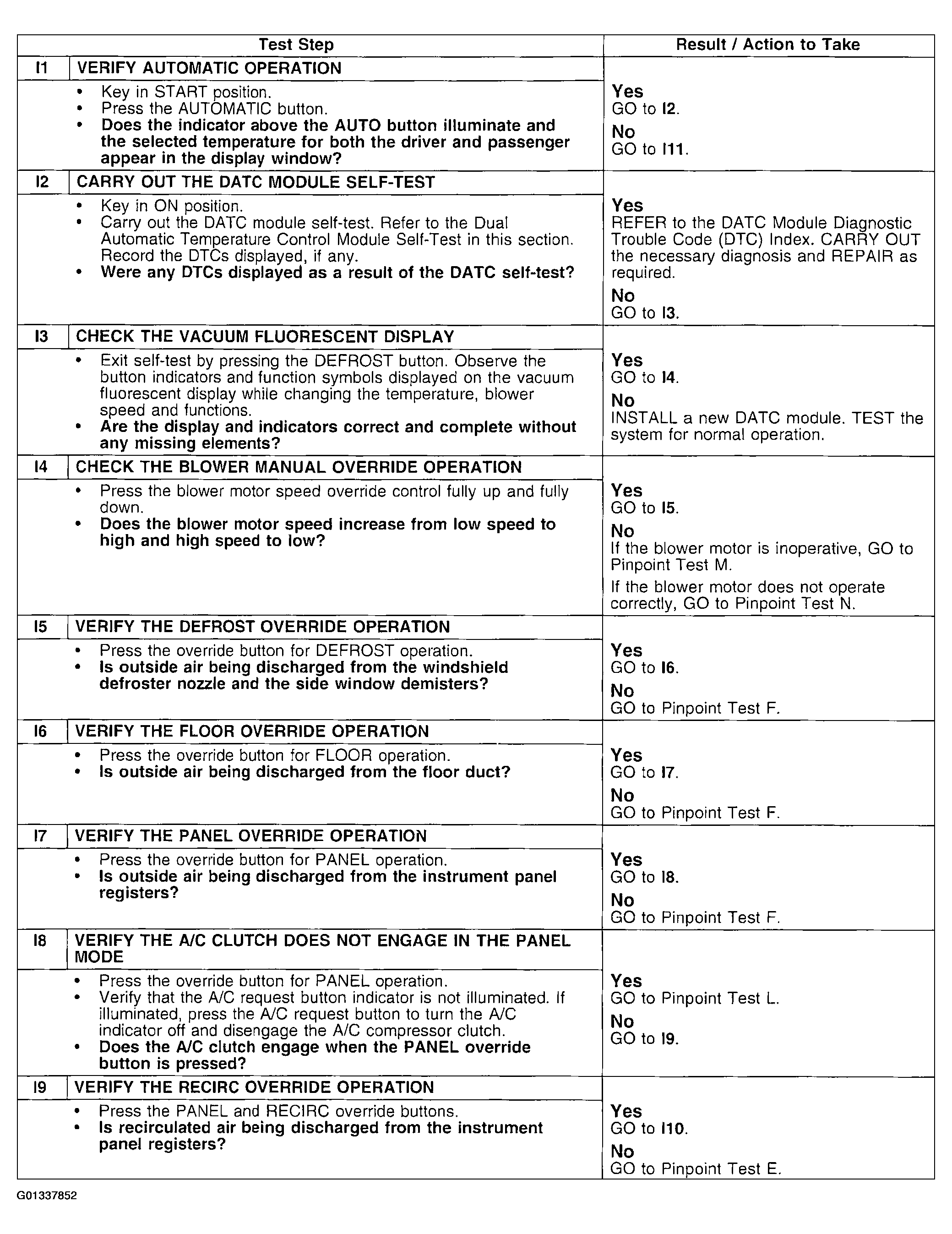

Fig 1: Pinpoint Test I (1 Of 3)
G01337852Courtesy of FORD MOTOR CO.

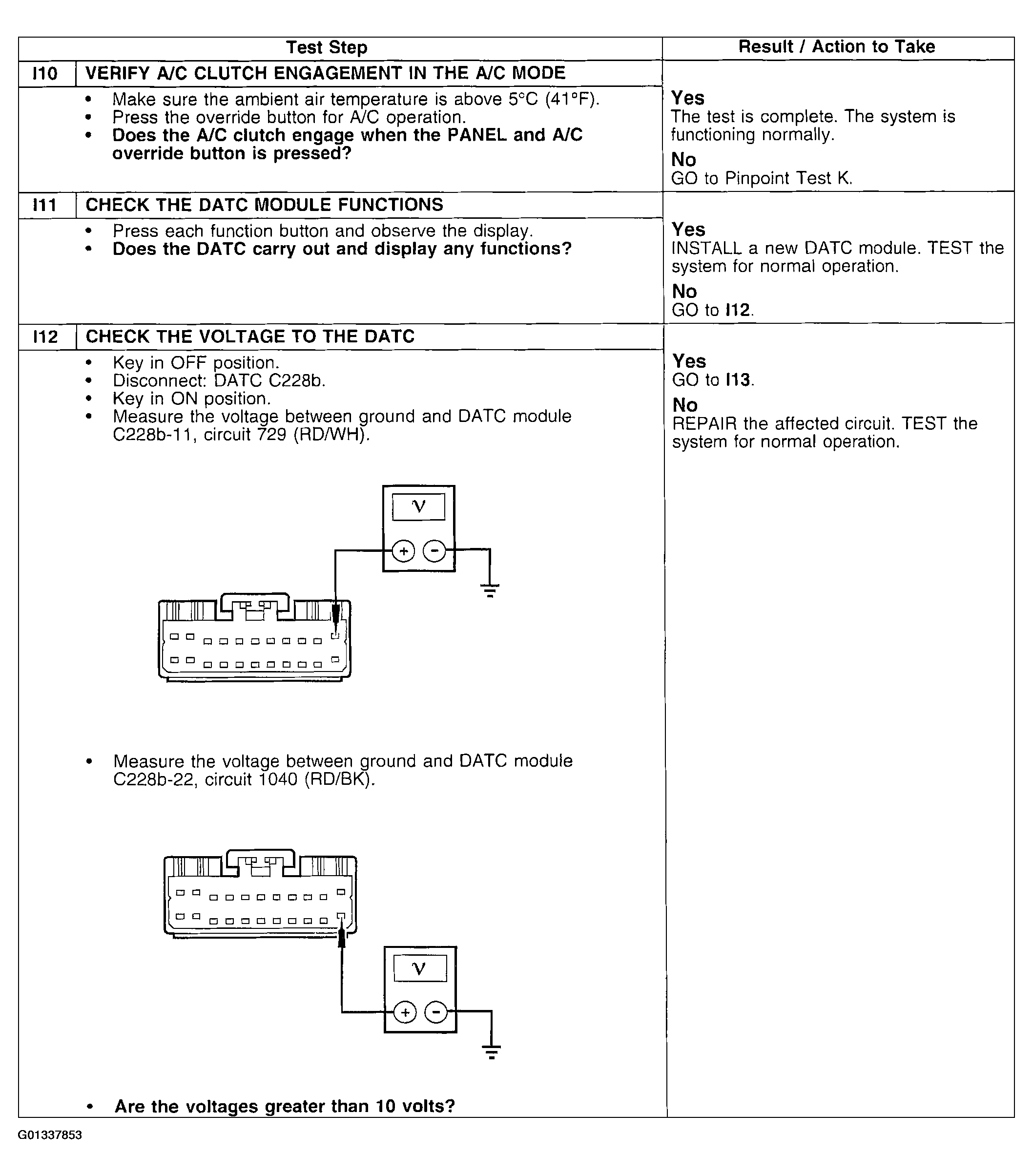

Fig 2: Pinpoint Test I (2 Of 3)
G01337853Courtesy of FORD MOTOR CO.

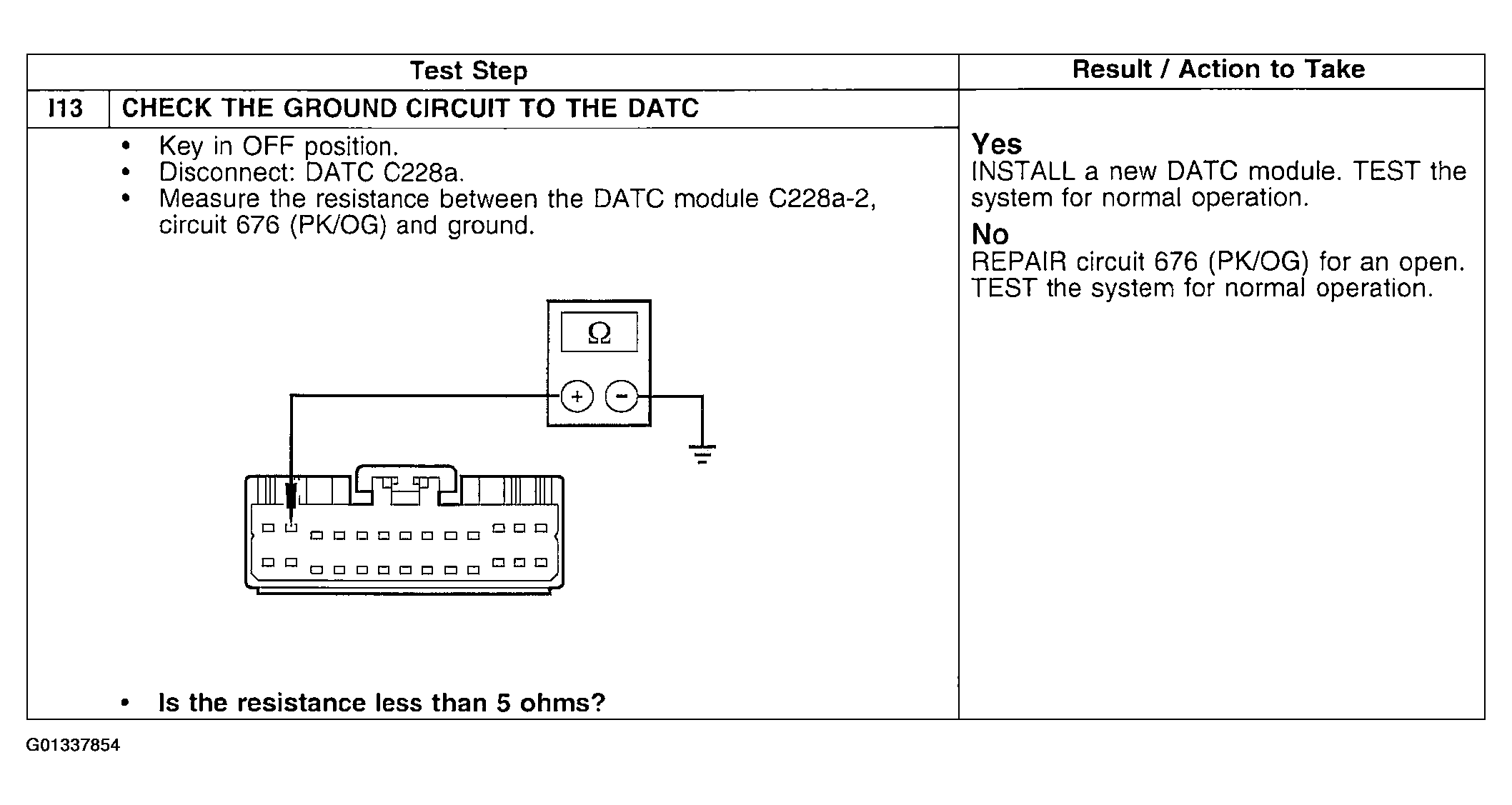

Fig 3: Pinpoint Test I (3 Of 3)
G01337854Courtesy of FORD MOTOR CO.
