Pinpoint Test H: No Communication With The Dual Automatic Temperature Control Module

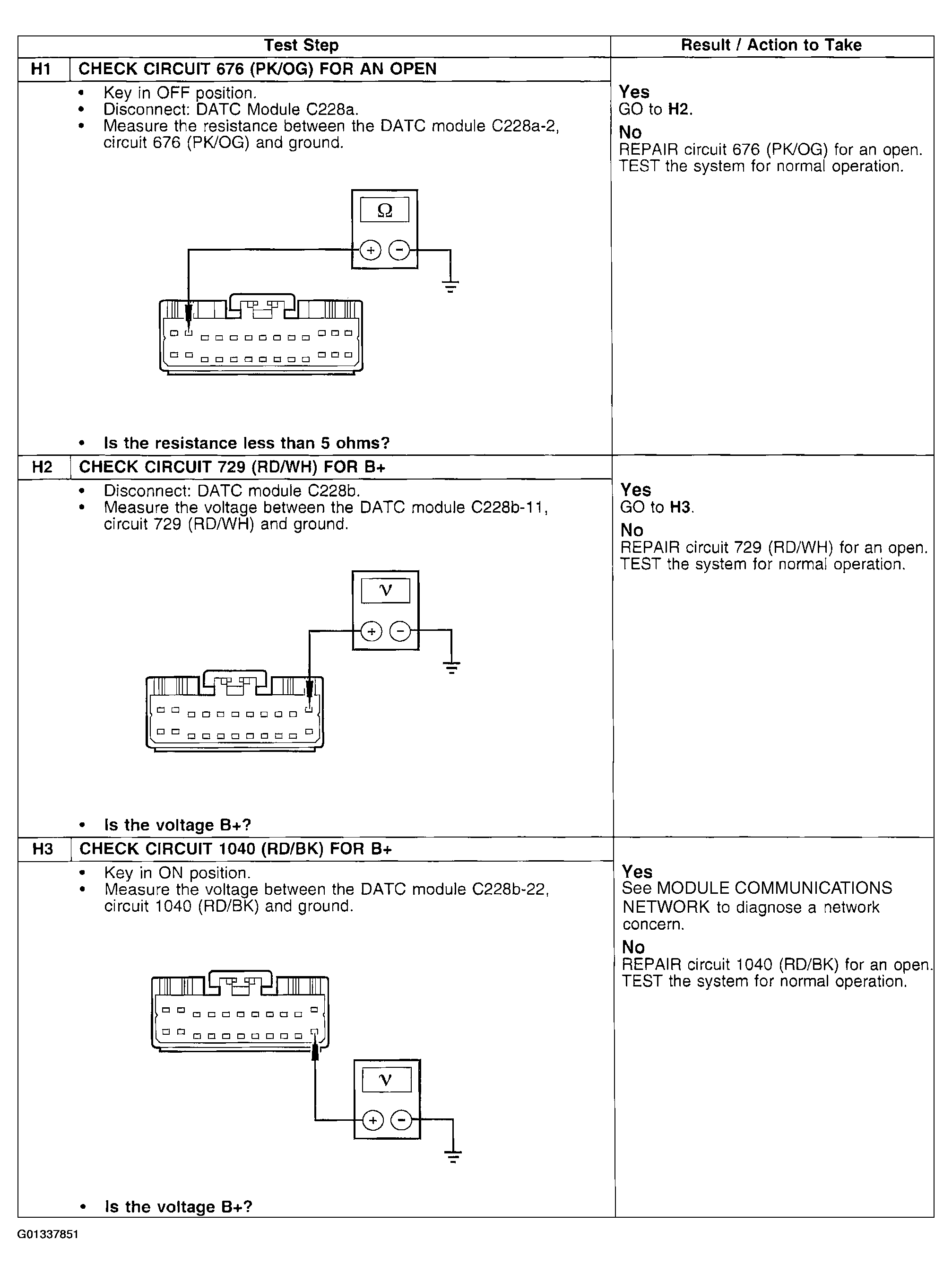

Fig 1: Pinpoint Test H

G01337851

Courtesy of FORD MOTOR CO.
