Removal and Installation

Disconnect the battery. See BATTERY DISCONNECT .
Remove the lower screws. Unsnap and remove the CD-DJ and navigation system module (NSM) cover.

Fig 1: Removing Lower Screws
Courtesy of FORD MOTOR CO.
Remove the upper screws.

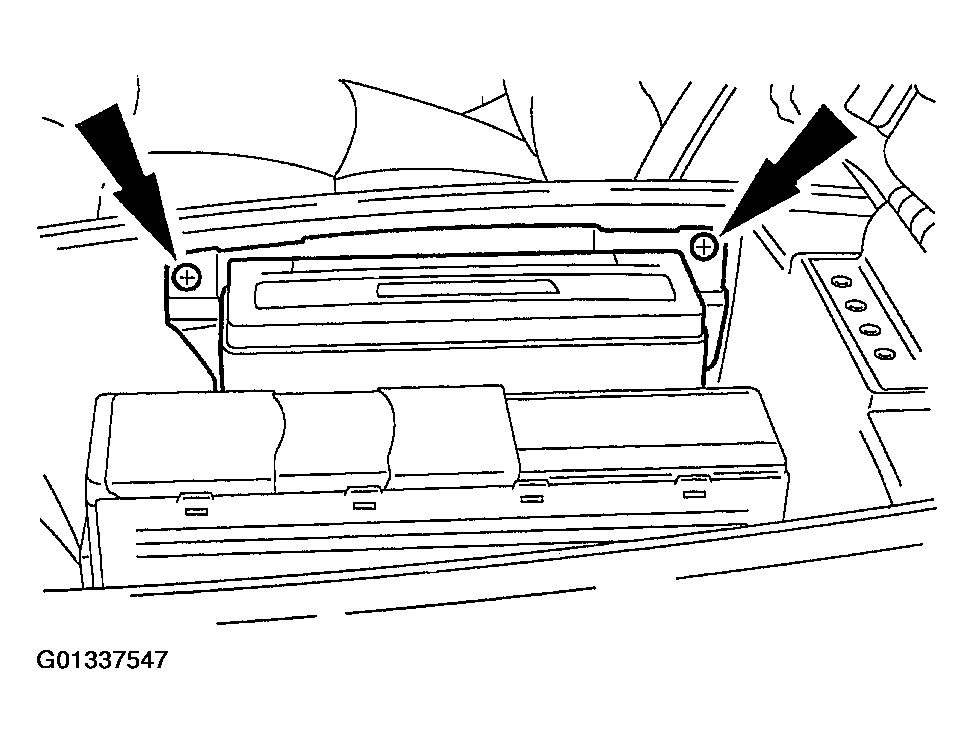

Fig 2: Removing Upper Screws
Courtesy of FORD MOTOR CO.

NOTE: The GPS antenna cable is attached to the NSM with a locking sleeve on the connector.

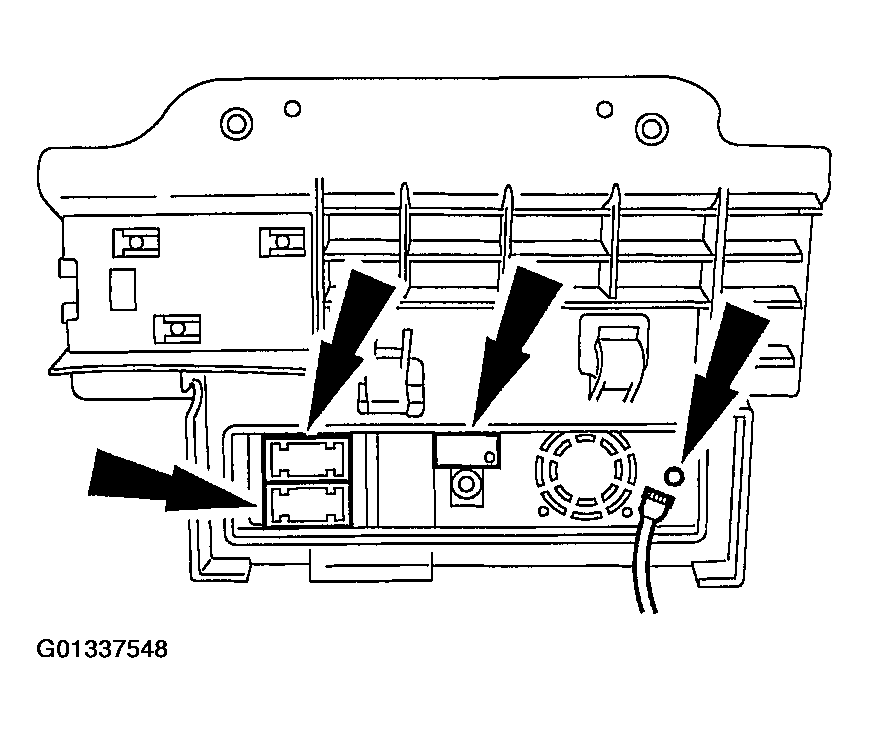

Fig 3: Disconnecting 3 Harness Connectors & GPS Antenna Cable

G01337548

Courtesy of FORD MOTOR CO.

Slide the NSM up out of the console, disconnect the three harness connectors and GPS antenna cable and remove the NSM
Remove the two screws on each end of the bracket and remove the NSM.

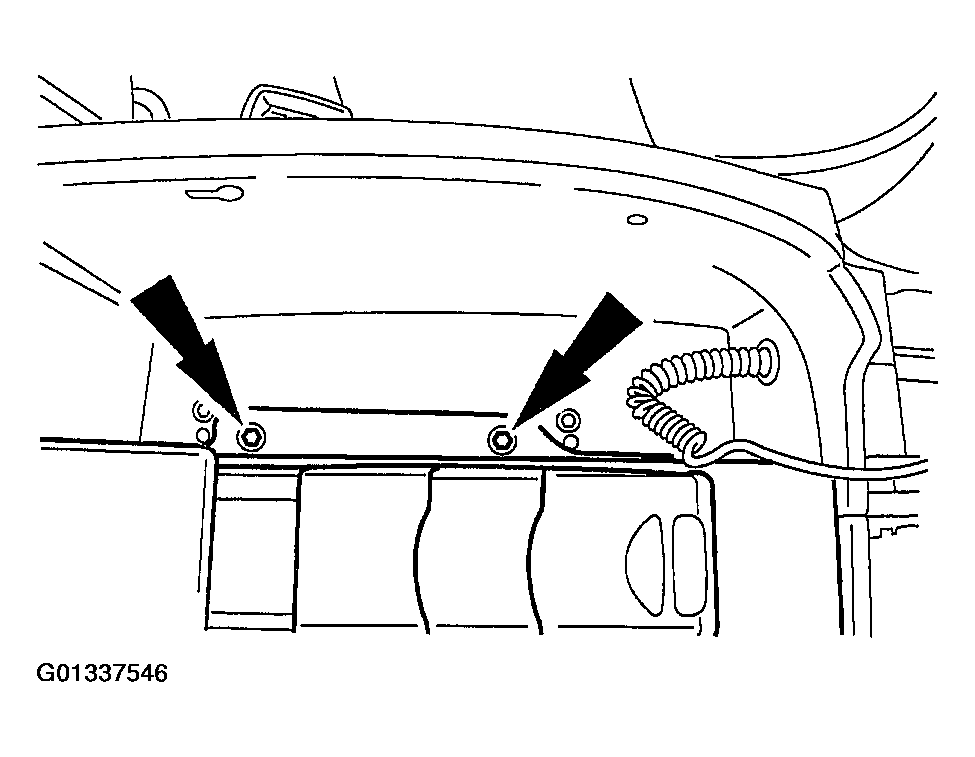

Fig 4: Removing Bracket Screws
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Make sure all connectors are correctly locked.
