Pinpoint Test E: Navigation System Does Not Operate Correctly - No Speedometer Signal

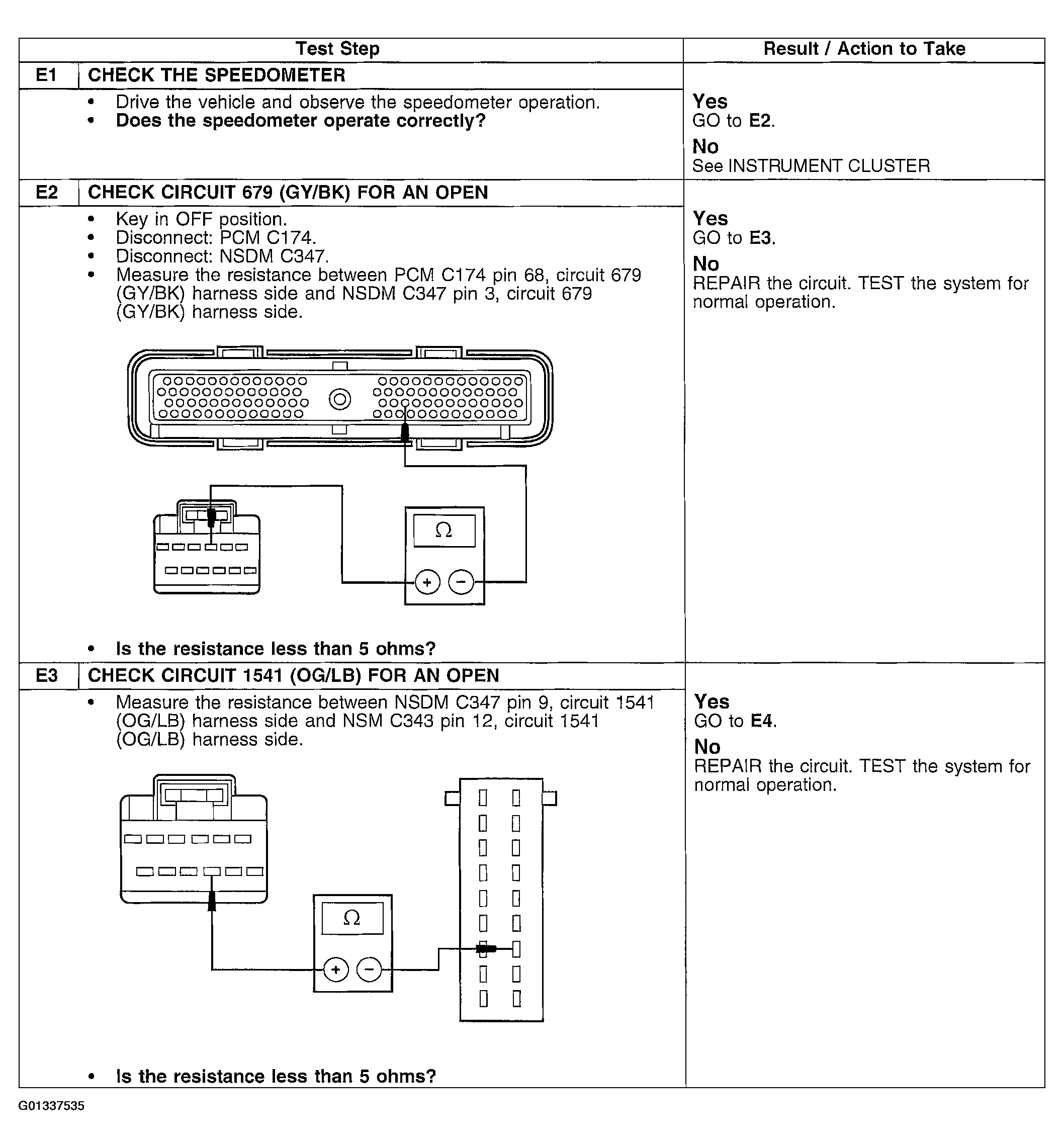

Fig 1: Pinpoint Test E (Steps E1-E3)
G01337535Courtesy of FORD MOTOR CO.

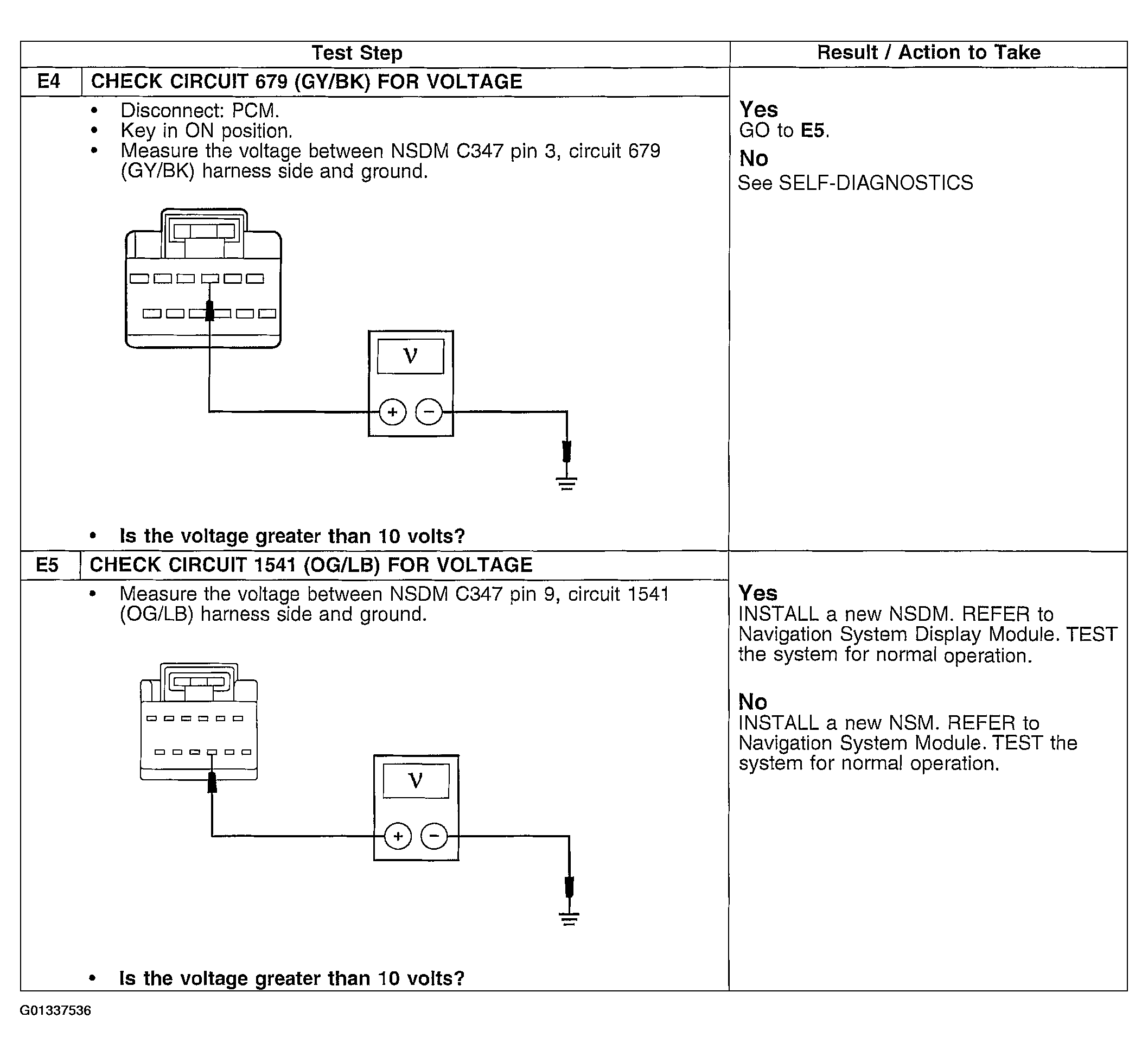

Fig 2: Pinpoint Test E (Steps E4-E5)
G01337536Courtesy of FORD MOTOR CO.
