Multifunction Switch, Lamp Portion

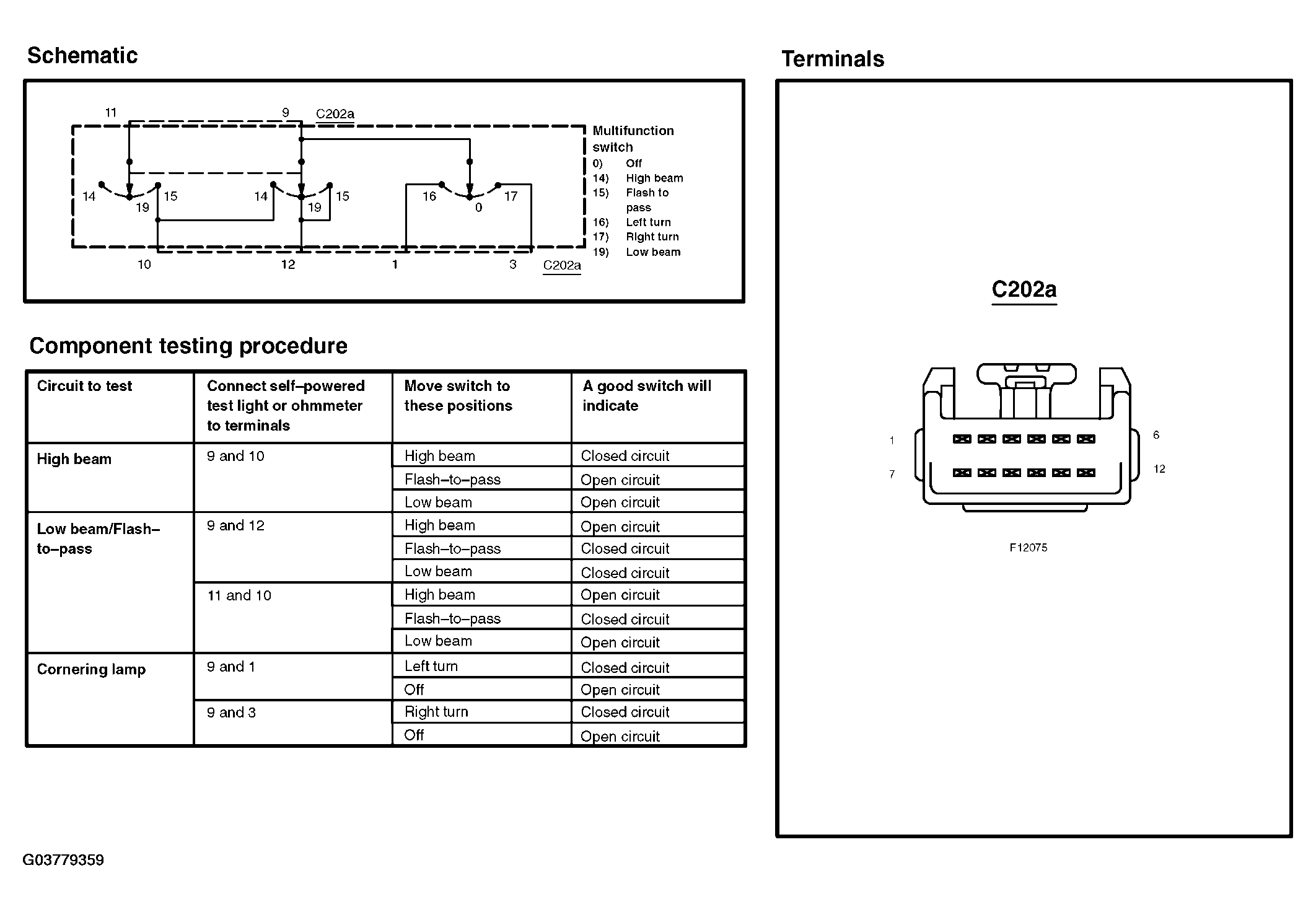

Fig 1: Testing Multifunction Switch - Lamp Portion (1 Of 2)
G03779359Courtesy of FORD MOTOR CO.

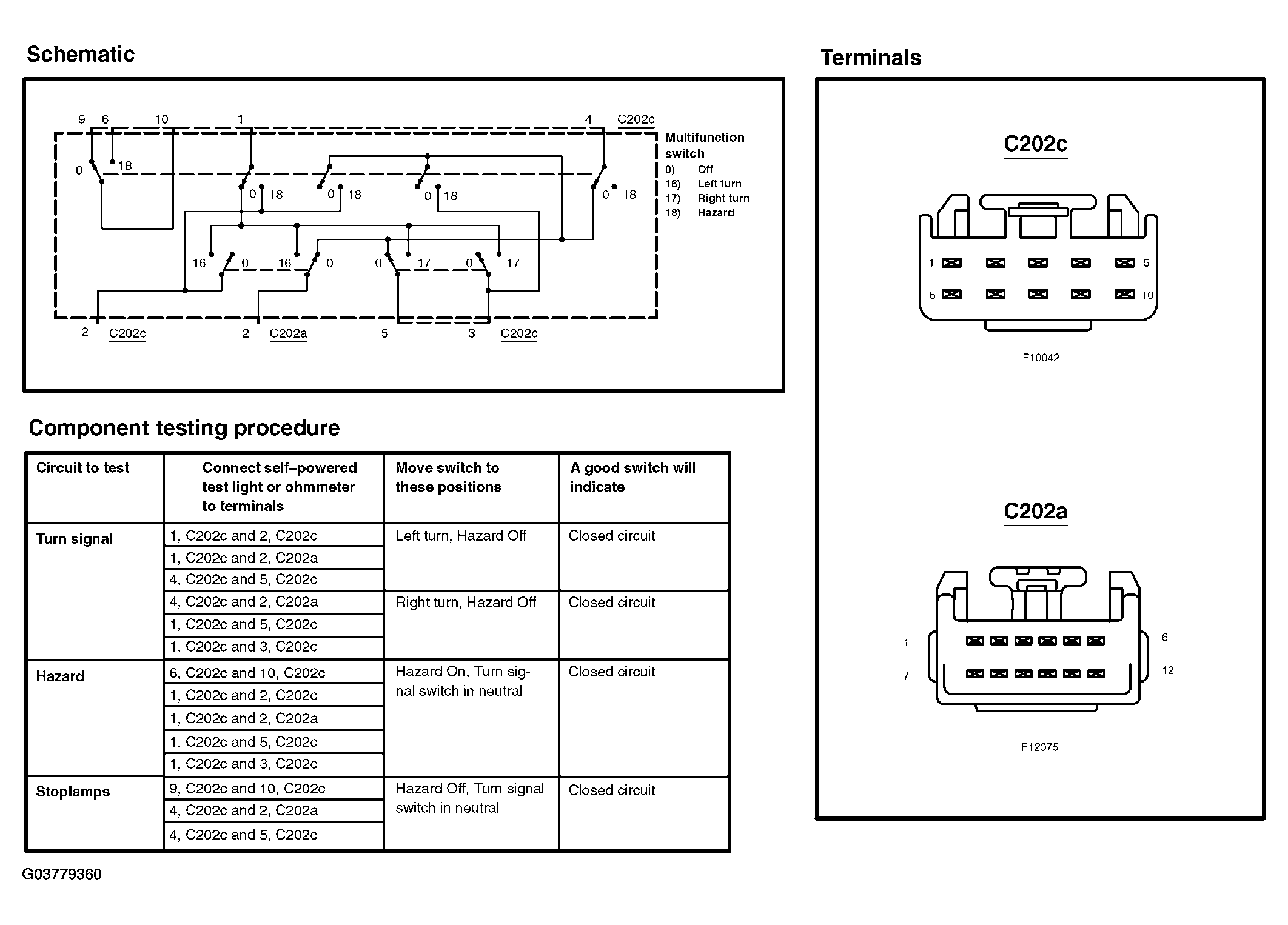

Fig 2: Testing Multifunction Switch - Lamp Portion (2 Of 2)
G03779360Courtesy of FORD MOTOR CO.
