Selector Lever - Column Shift: Removal

  1. Remove the ignition switch lock cylinder. For additional information, refer to STEERING COLUMN SWITCHES .
  2. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
  3. Remove the upper steering column shroud.

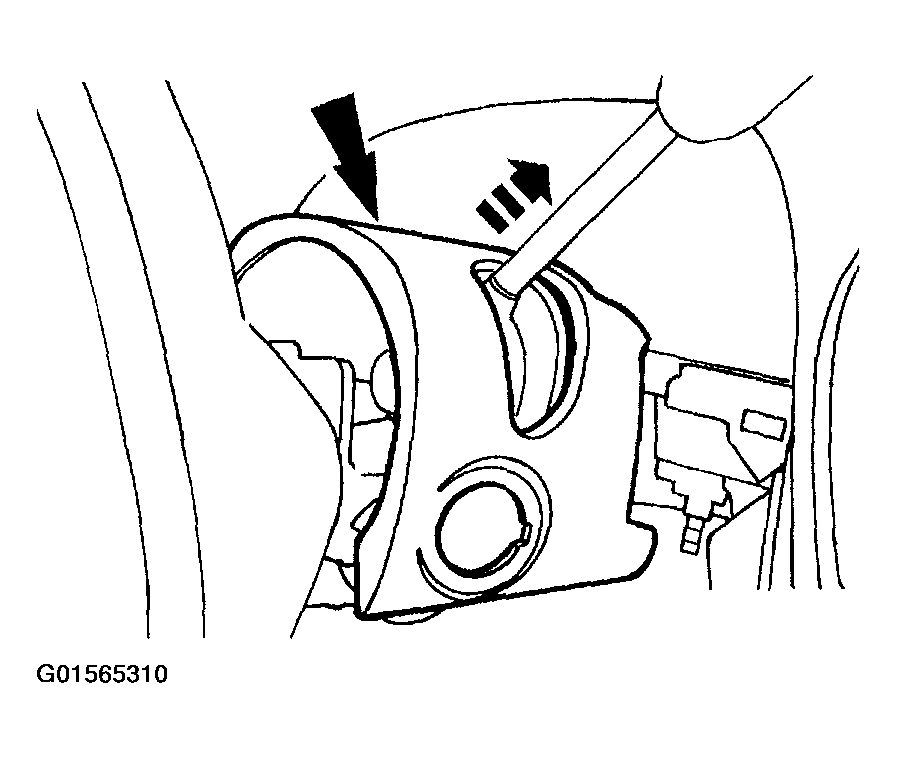

    Fig 1: Removing Upper Steering Column Shroud
    G01565310Courtesy of FORD MOTOR CO.
  4. Remove the gearshift lever.
    1. Disconnect the electrical connector.
    2. Remove and discard the gearshift lever pin.
    3. Remove the gearshift lever.

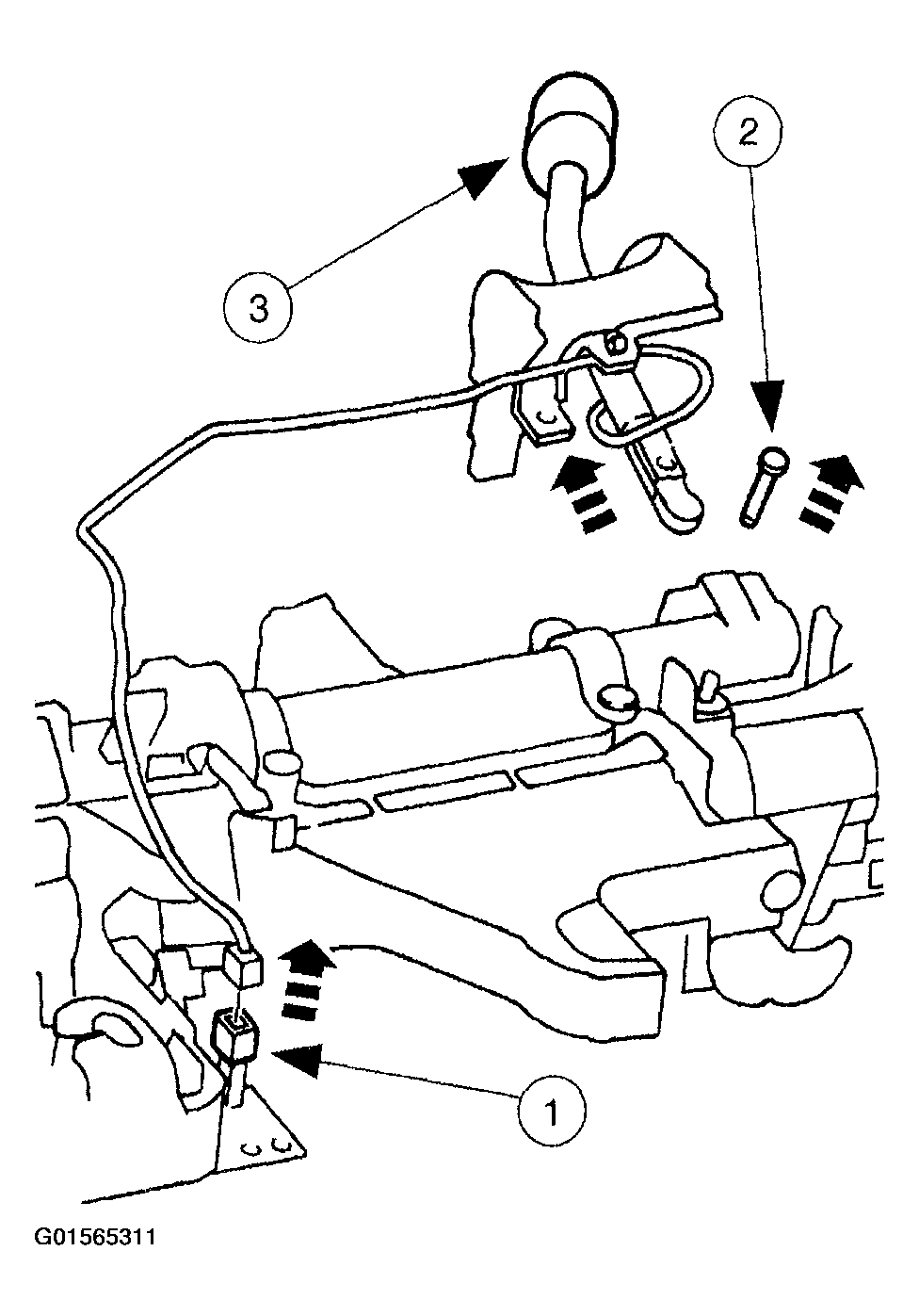

      Fig 2: Removing Gearshift Lever
      G01565311Courtesy of FORD MOTOR CO.
