Disassembly and Assembly

  1. Remove the reverse clutch piston outer lip seal.

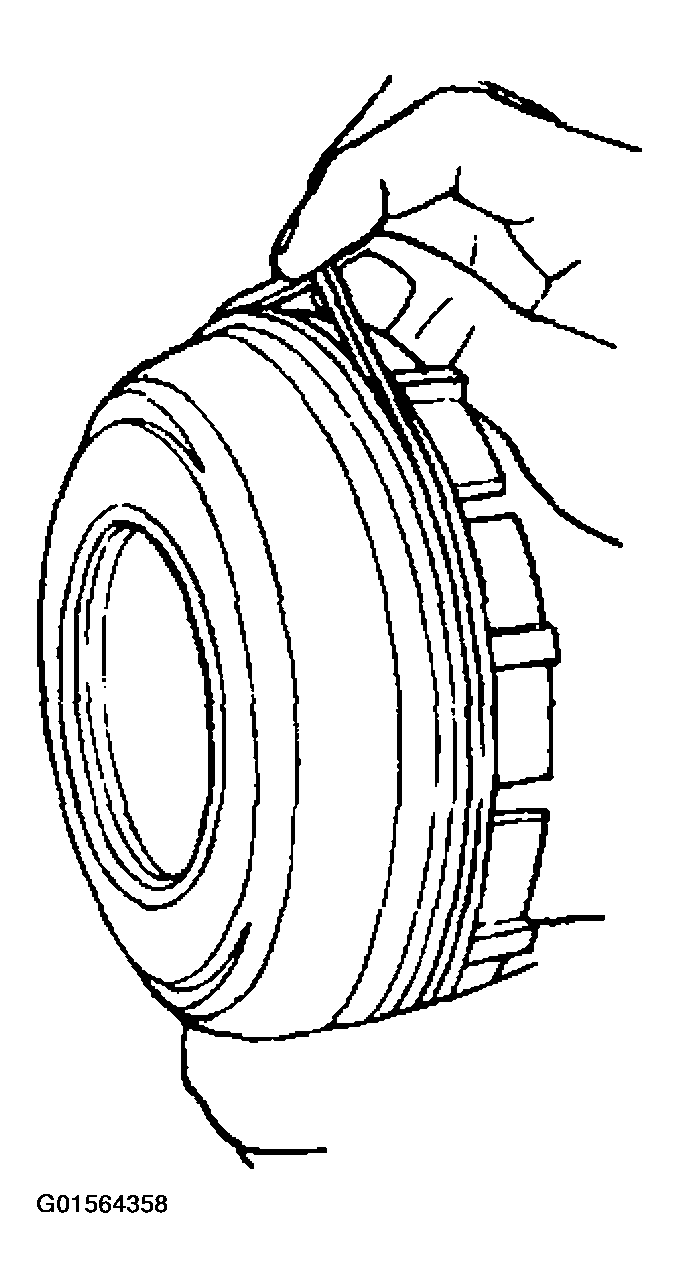

    Fig 1: Removing Reverse Clutch Piston Outer Lip Seal
    G01564358Courtesy of FORD MOTOR CO.
  2. Remove the reverse clutch piston inner lip seal.
    Fig 2: Removing Reverse Clutch Piston Inner Lip Seal
    G01564359Courtesy of FORD MOTOR CO.
  3. For assembly, follow the disassembly procedure in reverse order.
    • Make sure the lip on the seal faces the back side of the piston.
