Stall Speed Chart

Fig 1: Identifying Stall Speed Chart
G01563835Courtesy of FORD MOTOR CO.

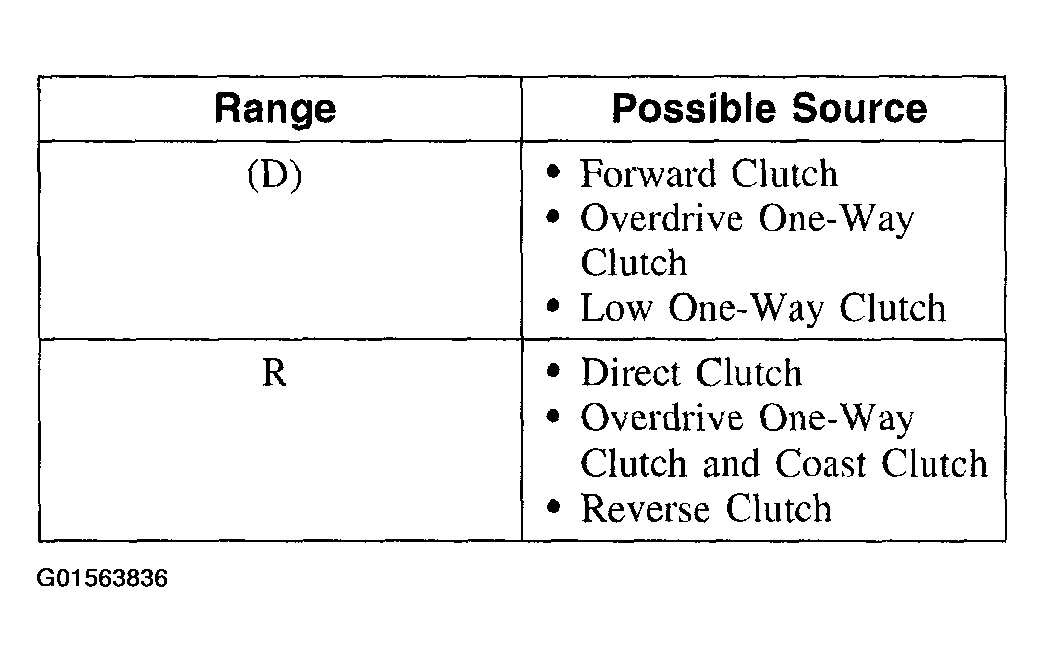

Fig 2: Identifying Stall Speed Diagnosis Chart (1 Of 2)
G01563836Courtesy of FORD MOTOR CO.

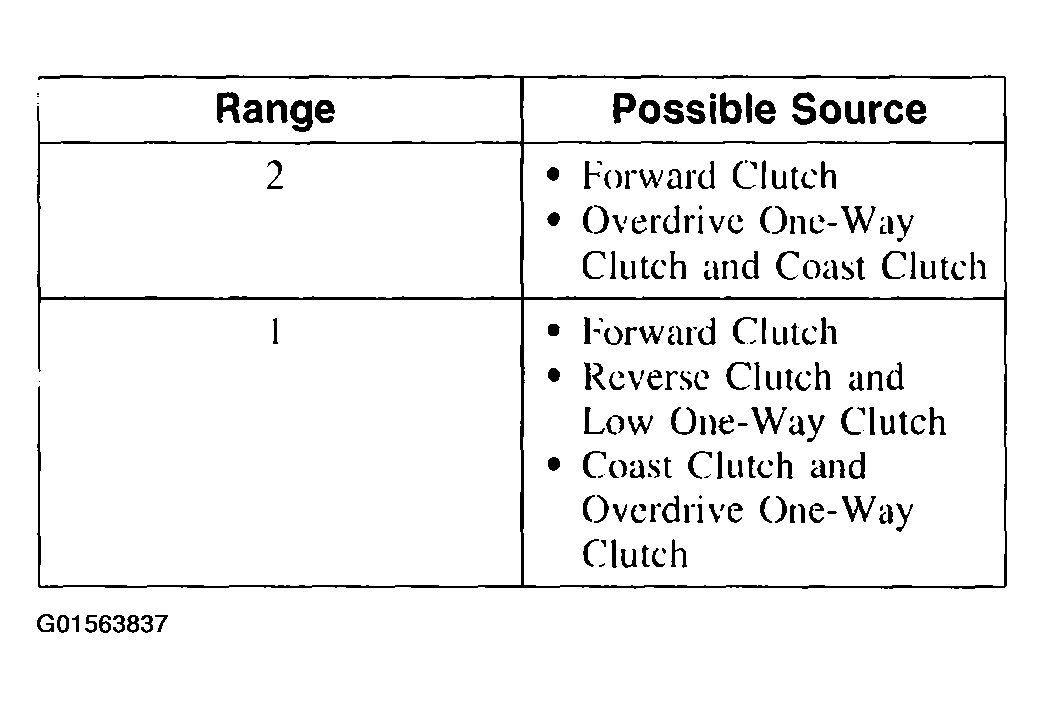

Fig 3: Identifying Stall Speed Diagnosis Chart (2 Of 2)
G01563837Courtesy of FORD MOTOR CO.
